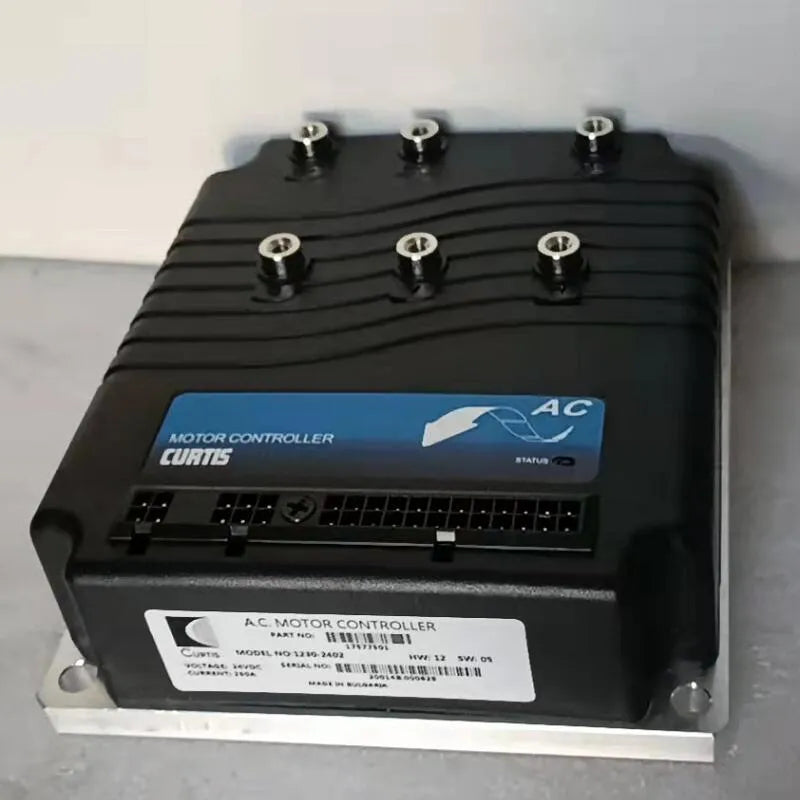

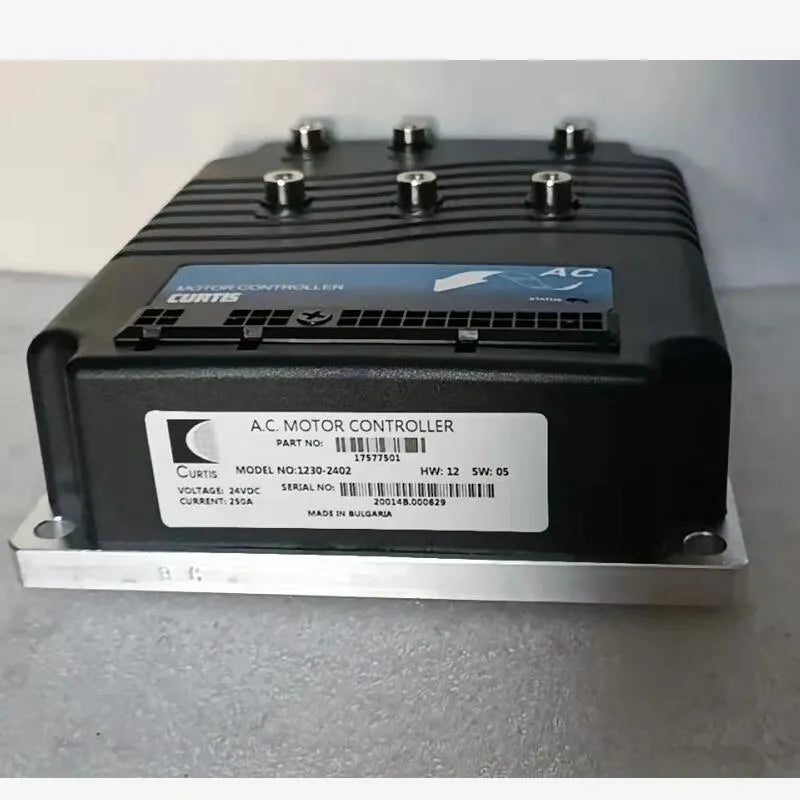

CURTIS 1230 1230-2402 24V 200A MULTIMODE AC MOTOR CONTROLLER FOR ELECTRIC FORKLIFT STACKER PALLET

CURTIS 1230-2402 24V 200A AC MOTOR CONTROLLERS

Nominal input voltage:24V

Current rating 2minute:200A

Frequency of Operation:16 kHz

Logic input Current:less than 10 mA

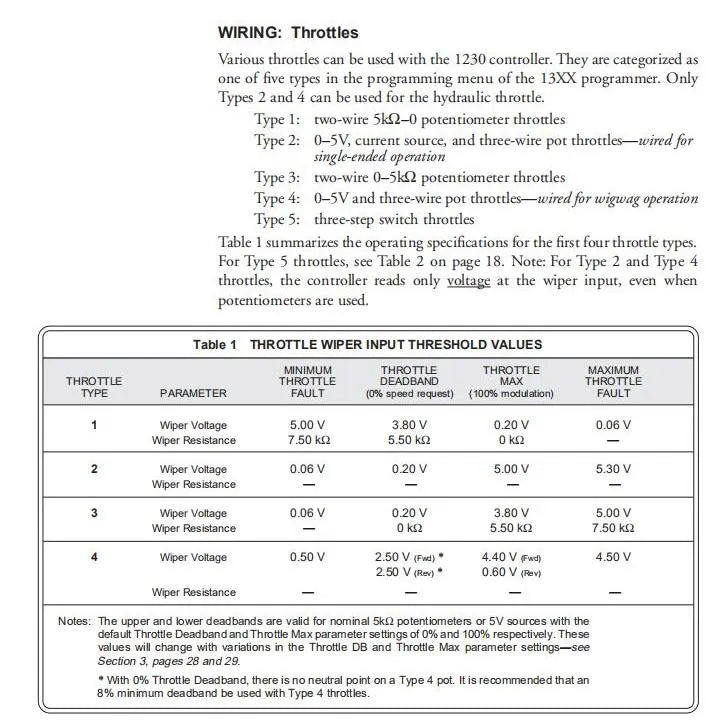

Throttle Input:0-5k ohm (Other available)

Weight: 1.1kg

Full Power Operating Temperature Range:

-25°Celsius to 50°Celsius (controller temperature)

Curtis AC induction motor controllers provide s with an unbeatable combination of power, performance and functionality. They are very reliable and well proven in counterbalance trucks, warehouse trucks, tow tractors and many different types of electric vehicle worldwide.

The Curtis IFO flux vector algorithm generates maximum torque and optimal efficiency across the entire speed range, allowing Curtis AC to out-perform many competitive controllers with higher current ratings. Fully integrated

Curtis AC controllers include a comprehensive amount of logic I/O and many unique features such as VCL and Auto Tuning. These features, combined with intuitive programming and powerful diagnostics, make Curtis AC the quickest and easiest controllers in the industry to set up for new applications, reducing the 's development costs and time to market.

Key Features:

• Direct-fit replacement: No modification required for installation.
• Stable operation: Ensures consistent performance under standard conditions.
• Heavy-duty design: Engineered to support reliable service life.
• Maintenance solution: Practical replacement part for equipment repair.
