Main & Relief Valves
-
Vendor: Hitachi

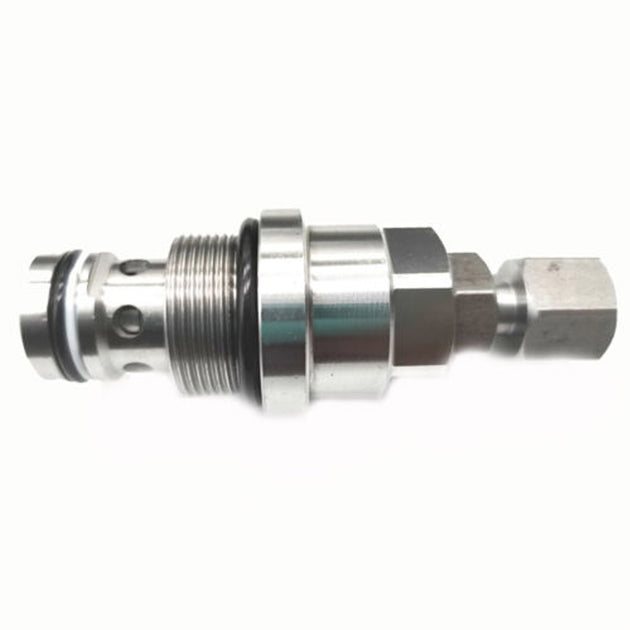

Main Relief Valve For Hitachi Ex120-2 Ex120-3 Hydraulic Pump Valve 9203496
Regular price $ 109 -
Vendor: Hitachi

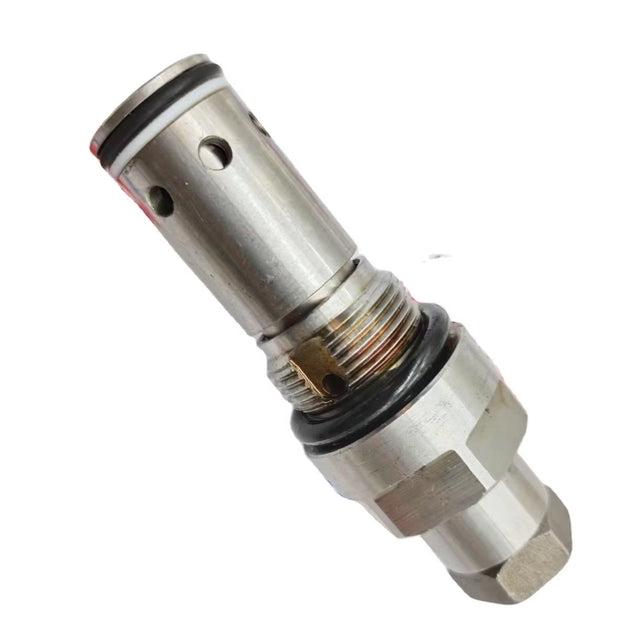

4372683 Relief Valve for Hitachi ZAX110 ZAX120 EX100-5 EX120-5 EX130-5 Excavator
Regular price $ 98 -
Vendor: Hitachi

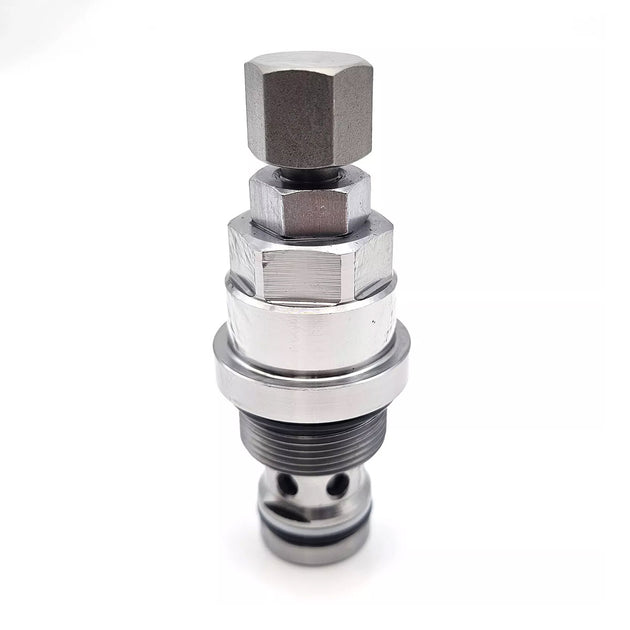

4372682 Service Relief Valve For ZAX110 ZX120 JD120 EX120-5 Excavator
Regular price $ 89 -
Vendor: John Deere

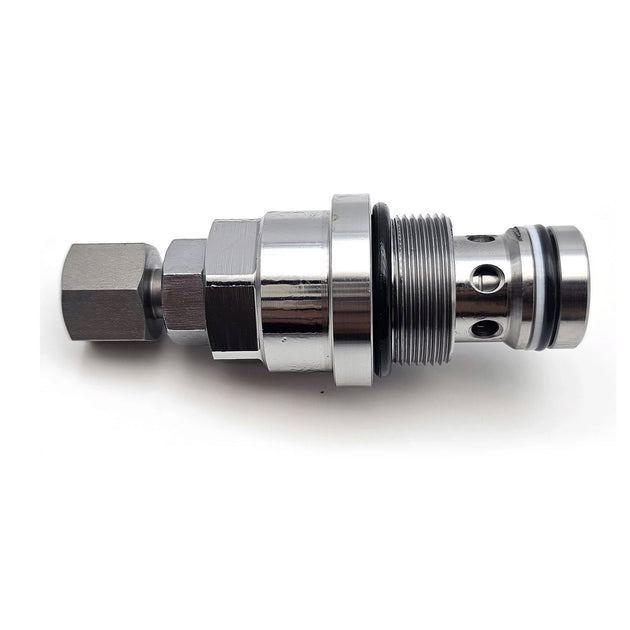

Pressure Relief Valve 9200504 Replacement for John Deere Excavator 160LC 120 490E 110 135C 160C 190GW 190DW 120C
Regular price $ 89 -
Vendor: Hitachi

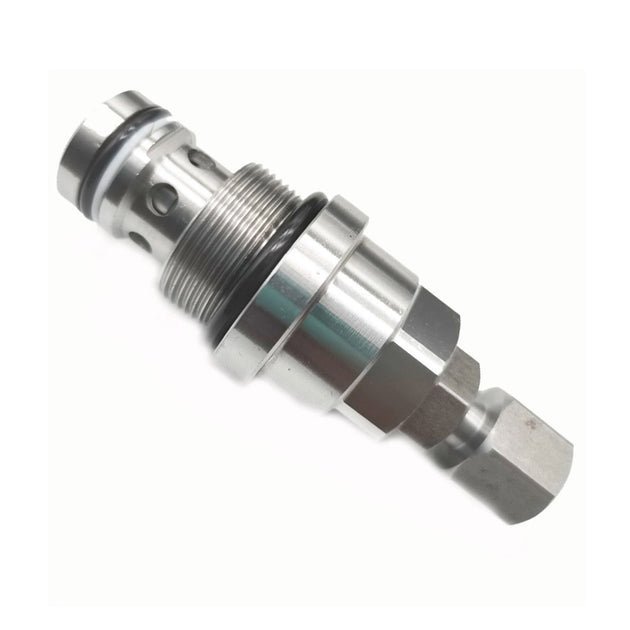

0412206 0412207 Main Relief Valve For Hitachi EX100 EX120 Excavator
Regular price $ 129 -
Vendor: John Deere
Relief Valve 9200491 fits for John Deere Excavator 180 120D 130 P 130G 130GLC
Regular price $ 155 -
Vendor: Hitachi
Engine Parts for ZAX40 Excavator Parts 4478987 Relief Valve
Regular price $ 98 -
Vendor: Hitachi
New 1pc Main Relief Valve 4707029 Fit For Hitachi ZAX55 Excavator
Regular price $ 98 -
Vendor: Kobelco
LC22V00006F1 travel relief valve Fits for Kobelco SK350-8 SK330-8 excavator
Regular price $ 169 -
Vendor: Kobelco
Relief Valve Control Valve YN30V00120F2 Fit for KOBELCO SK200-8 SK210-8 SK235
Regular price $ 89 -
Vendor: Sany
60100491 V9304063322 SY235 Excavator Throttle Valves KPM Hydraulic Relief Valve for SANY
Regular price $ 98 -
Vendor: Hyundai
31EM-10060 XJBN-00162 relief valve fits for HYUNDAI R210-7 R200W-7 R250LC-7
Regular price $ 109
How does a main & relief valves work?
1. The function and working principle of the excavator main gun
The main gun of the excavator is one of the main control valves in the hydraulic system of the excavator. It mainly controls the working pressure and flow of the hydraulic system. The setting of the main gun can not only generate sufficient working pressure for the hydraulic system, but also control the flow of hydraulic oil to ensure the normal operation of each component and the normal operation of the excavator.
The working principle of the main gun is: when the hydraulic pump starts to work, the hydraulic oil will be pressed into the main gun, flowing inside the main gun to generate a high-pressure oil flow, and then sent to the hydraulic motor and other hydraulic components through pipes. Since the main gun has a certain built-in regulating valve, the high-pressure oil flow can be adjusted as needed to meet the needs of different working conditions.
2. The function and working principle of the auxiliary relief valve of the excavator
The auxiliary relief valve of the excavator is a relief valve in the hydraulic system of the excavator. It mainly plays the role of preventing overload of the hydraulic system and protecting system components from damage. When hydraulic oil flows through the auxiliary relief valve, if the system's working pressure exceeds the set value, the valve will automatically open and slowly release the excess hydraulic oil back to the tank, thereby protecting the hydraulic components from damage.
The working principle of the auxiliary relief valve is: when the working pressure of the hydraulic system exceeds the set value, the steel balls and springs separate, and the hydraulic oil will flow back to the tank through the channel in the valve. By adjusting the tightness of the spring, the valve opening pressure can be controlled to adapt to different working needs.
In short, the excavator main gun and auxiliary relief valve are important components in the excavator hydraulic system. They mainly play the role of controlling the pressure and flow of the hydraulic system, ensuring the normal operation of the hydraulic system and protecting system components from damage.
