Electrical Parts
-
Vendor: Hope Backhoe Parts
8978984800 8-97898480-0 Front Door Power Window Regulator Suitable for ISUZU NKR NPR NPR66 4HF1
Regular price $ 189 -
Vendor: Hope Backhoe Parts
8-97898480-0 Lifter Motor For FORD Truck Window Regulator Motor
Regular price $ 189 -
Vendor: FG WILSON
R250 Automatic Voltage Regulator 10000-12943 922-197 for Leroy Somer FG Wilson
Sale price $ 76Regular price $ 99 -
Vendor: bosch
Fuel Pressure regulator 0438170039 Bosch Control Valve 82GB9K044AA Quality New
Sale price $ 159Regular price $ 199 -
Vendor: BMW
51338252393 51338252394 Front Left Right Power Window Regulator without Motor for Bmw 525i 528i 530i 540i M5 E39
Sale price $ 79Regular price $ 99 -
Vendor: BMW
16117170090 Car Accessories Fuel Filter Pressure Regulator Repair Kit For BMW E81 E87 E88 E91 E92 E93 X1 130i 320i 330i
Sale price $ 98Regular price $ 129 -
Vendor: Others
AVR B 292902 Automatic Voltage Regulator B-292902
Regular price $ 259 -
Vendor: John Deere
Fit John Deere 20 AMP Voltage Regulator MIA881279 332 670 770 790 870 970 990
Regular price $ 25 -
Vendor: Honda
Voltage Regulator Rectifier SH691AA for Honda TRX CBR NC23 NC25 400 VFR 750
Regular price $ 32 -
Vendor: Honda
Voltage Regulator Rectifier Fit Honda 31600-MGZ-J01 31600-HR0-F01 A1
Regular price $ 32 -
Vendor: Honda
Regulator Rectifier YHC095 SH750AA for Honda CB1000R 600 SC60
Regular price $ 65 -
Vendor: Honda
Regulator Rectifier for Honda 31600-Mb3-670 31600-Mk3-000 31600-Mb0-008
Regular price $ 32
What are the electrical parts?
The electrical system has three main functions. One is to power the starter motor through the battery, causing the starter motor to run and complete the initial stage of the stroke work through the crankshaft connecting rod structure, and exit the next working system after the engine is started, so this part is sometimes called the engine's The main component of the starting system is the starter motor; the second is to ensure the normal operation of the engine during work, ensuring normal oil supply, normal air intake, and starting protection devices when encountering high temperatures and high pressures. The main components include various sensors and switches. Third, during operation, the charger is driven by the engine to charge the battery and ensure that the battery is fully charged. The main component is the charger.
The electrical system can be classified according to the speed control system of the engine. The electrical system of the machine control is relatively simple, including only the starter, charger, and switch with sensor function. Of course, some assembly plants may have additional wiring in the control box of the unit. , a sensor is installed in the engine for control; in addition to the mechanical starter and charger, the ESC also has an electronic speed regulator and actuator; while the EFI/electronic control is more complex, and its main features are various There are many sensors and they are controlled by a computer board.
1. Battery
The battery is generally not a product that comes with the engine, but is selected, tested and matched by the assembler. The usual voltage is 12V or 24V, and its main function is to power the starter motor, ECM and other electrical equipment. Under normal circumstances, when the engine is running once, the battery is fully charged, because although the battery is discharged in the early stage, it will be fully charged again during the engine running process.

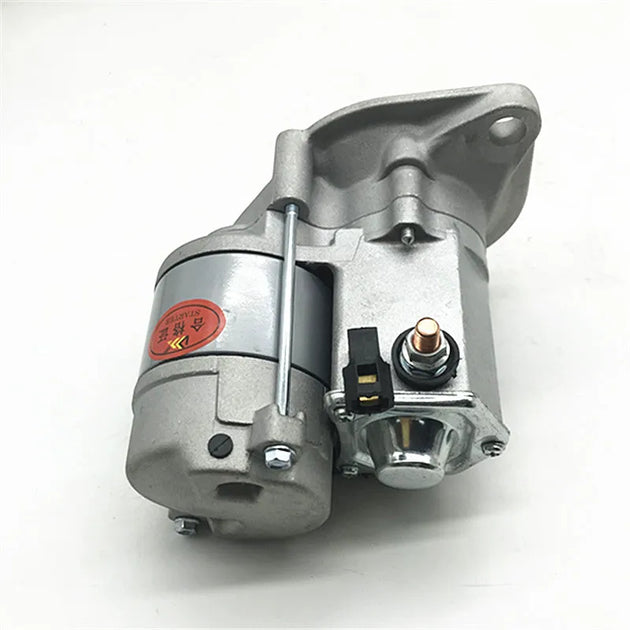

2. Starting motor
The essence of a starter motor is an electric motor. The principle is the magnetic effect of current, which generates a magnetic field through energization and promotes the rotation of the starter. The starter is installed on the side of the timing gear. When starting, the probe of the starter stretches out, contacts the timing gear box gear, and pushes the gear to rotate. After reaching a certain speed, usually 250-300 rpm, the probe It will retract. At this time, the engine can run normally and the work of the starter motor is completed.
An introduction to the main systems of the engine - Youjia
3. Charger
It is also called an alternator, so it is essentially a small generator based on the principle of electromagnetic induction. Driven by the engine, the coil cuts the magnetic induction lines to generate current and supplies it to the battery. The gear of the charger is connected to the crankshaft gear through a belt, and its power is also provided through the crankshaft. The charger is equivalent to a microcosm of a diesel generator set and usually includes excitation windings, etc. We will discuss this later when we introduce the electric ball.
An introduction to the main systems of the engine - Youjia

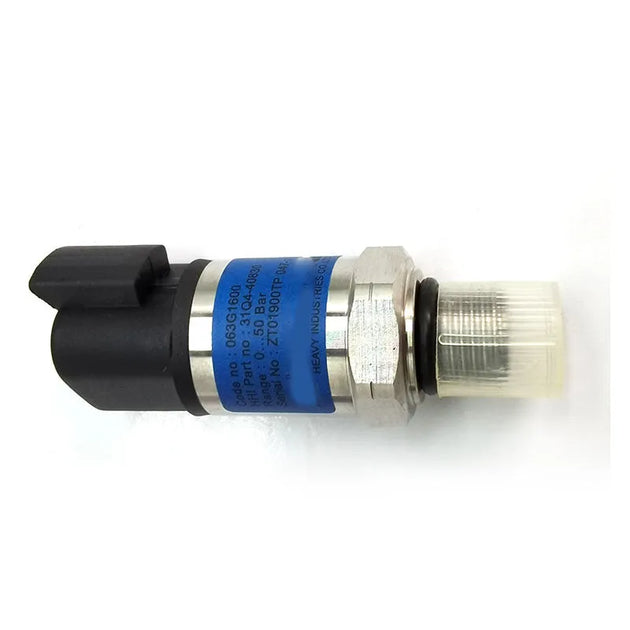

4. Sensors and switches
Sensors and switches are electrical devices and serve a similar purpose. Sensors and switches feedback information to the computer board or controller through signals, so that the computer board or controller can perform corresponding actions according to the corresponding program. The difference is that the sensor generates pulse signals and transmits information to the control center continuously, while the switch has a threshold, and it is energized only when it exceeds or falls below the threshold and feeds back to the control center. Sensors usually include temperature sensors, pressure sensors, rotational speed sensors, etc., and switches are mainly temperature switches and pressure switches.
