Electrical Parts
-
Vendor: Yanmar
Free Shipping Regulator Rectifier 12V 280W 6 Pins 119653-77711 119640-77710 for Yanmar 3TNE74 3D74E 3D68E Komatsu Excavator PC05-6 PC10-6 PC15-1 PC28UU-1
Regular price $ 49 -
Vendor: Kubota
Free Shipping Aftermarket Kubota Regulator 67211-55230 66611-55250 For Kubota Compact Tractor B7100D-P
Regular price $ 25 -
Vendor: Kubota
Free Shipping New Voltage Regulator Rectifier 15372-64602 12V for Kubota Tractor B4200 B5100E
Regular price $ 22 -
Vendor: Kubota
Free Shipping 12V Voltage Regulator 15533-64600 H1550-64600 76611-55440 for Kubota Tractor B8200D B8200HST-D B8200E B8200HST-E B6200D B6200E B6200HST-D B6200HST-E
Regular price $ 19 -
Vendor: Kubota
For Kubota Wheel Loader R310 R420 R520 R530 R630 12V Voltage Rectifier Regulator 6 Wire 15531-64601
Regular price $ 25 -
Vendor: Kubota
For Kubota Tractor T1770 T1870 T1460 T1560 T1600 T1700 T1760 12V Voltage Rectifier Regulator 6 Wire 15351-64600
Regular price $ 25 -
Vendor: Kubota
For Kubota Tractor M9000 M9540 M95 M96 M9960 MX4700 MX5000 MX5100 12V Voltage Rectifier Regulator 6 Wire 15531-64601
Regular price $ 25 -
Vendor: Kubota
For Kubota Tractor M8200 M8540 M8560 12V Voltage Rectifier Regulator 6 Wire 15531-64601
Regular price $ 25 -
Vendor: Kubota
For Kubota Tractor M7030 M7500 M7950 M8200 M8950 M9000 M9580 MX5000 12V Voltage Rectifier Regulator 6 Wire 15351-64600
Regular price $ 25 -
Vendor: Kubota
For Kubota Tractor L4150 L4200 L4240 L4300 L4400 L4610 L4740 L5040 L5740 M62 12V Voltage Rectifier Regulator 6 Wire 15531-64601
Regular price $ 25 -
Vendor: Kubota
For Kubota Tractor L3600 L3650 L3710 L3830 L4200 L4300 L4310 L4610 L5030 L5450 12V Voltage Rectifier Regulator 6 Wire 15351-64600
Regular price $ 25 -
Vendor: Kubota
For Kubota Tractor L3000 L3240 L3300 L3400 L3540 L3600 3910 L3940 12V Voltage Rectifier Regulator 6 Wire 15531-64601
Regular price $ 25
What are the electrical parts?
The electrical system has three main functions. One is to power the starter motor through the battery, causing the starter motor to run and complete the initial stage of the stroke work through the crankshaft connecting rod structure, and exit the next working system after the engine is started, so this part is sometimes called the engine's The main component of the starting system is the starter motor; the second is to ensure the normal operation of the engine during work, ensuring normal oil supply, normal air intake, and starting protection devices when encountering high temperatures and high pressures. The main components include various sensors and switches. Third, during operation, the charger is driven by the engine to charge the battery and ensure that the battery is fully charged. The main component is the charger.
The electrical system can be classified according to the speed control system of the engine. The electrical system of the machine control is relatively simple, including only the starter, charger, and switch with sensor function. Of course, some assembly plants may have additional wiring in the control box of the unit. , a sensor is installed in the engine for control; in addition to the mechanical starter and charger, the ESC also has an electronic speed regulator and actuator; while the EFI/electronic control is more complex, and its main features are various There are many sensors and they are controlled by a computer board.
1. Battery
The battery is generally not a product that comes with the engine, but is selected, tested and matched by the assembler. The usual voltage is 12V or 24V, and its main function is to power the starter motor, ECM and other electrical equipment. Under normal circumstances, when the engine is running once, the battery is fully charged, because although the battery is discharged in the early stage, it will be fully charged again during the engine running process.
2. Starting motor
The essence of a starter motor is an electric motor. The principle is the magnetic effect of current, which generates a magnetic field through energization and promotes the rotation of the starter. The starter is installed on the side of the timing gear. When starting, the probe of the starter stretches out, contacts the timing gear box gear, and pushes the gear to rotate. After reaching a certain speed, usually 250-300 rpm, the probe It will retract. At this time, the engine can run normally and the work of the starter motor is completed.
An introduction to the main systems of the engine - Youjia
3. Charger
It is also called an alternator, so it is essentially a small generator based on the principle of electromagnetic induction. Driven by the engine, the coil cuts the magnetic induction lines to generate current and supplies it to the battery. The gear of the charger is connected to the crankshaft gear through a belt, and its power is also provided through the crankshaft. The charger is equivalent to a microcosm of a diesel generator set and usually includes excitation windings, etc. We will discuss this later when we introduce the electric ball.
An introduction to the main systems of the engine - Youjia

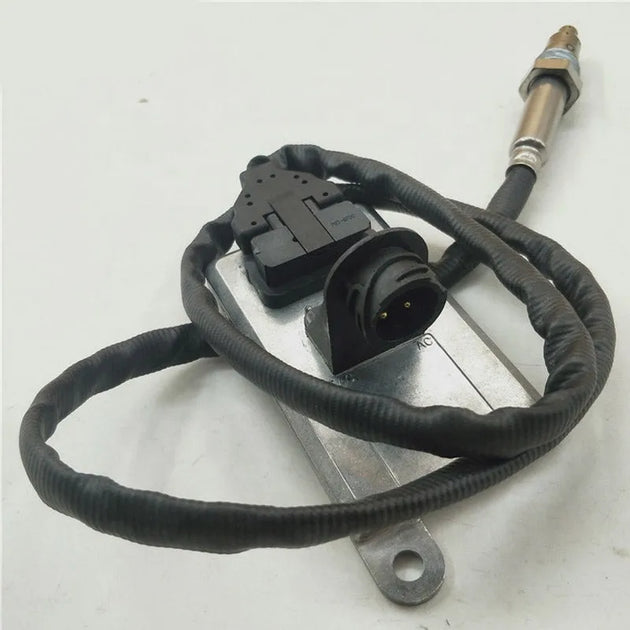

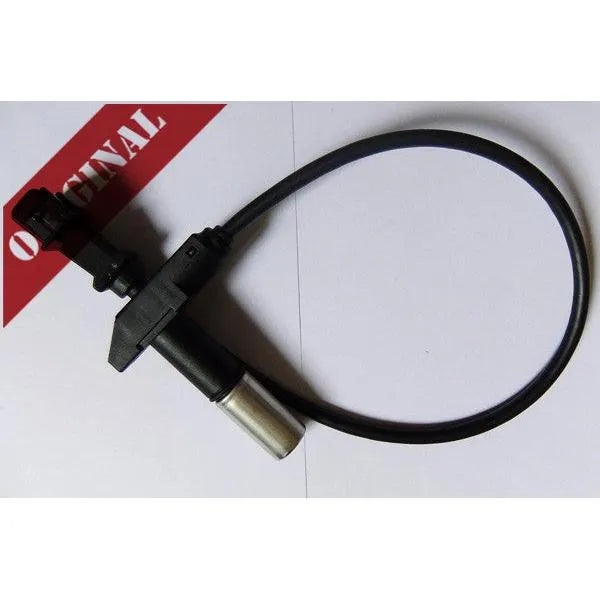

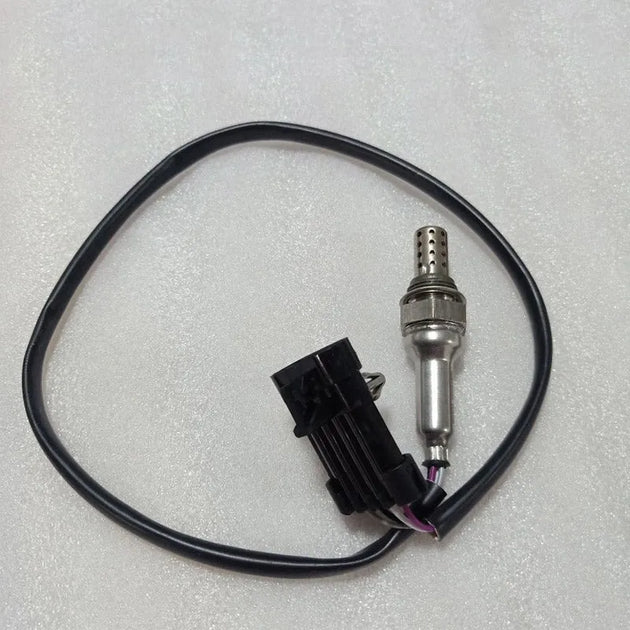

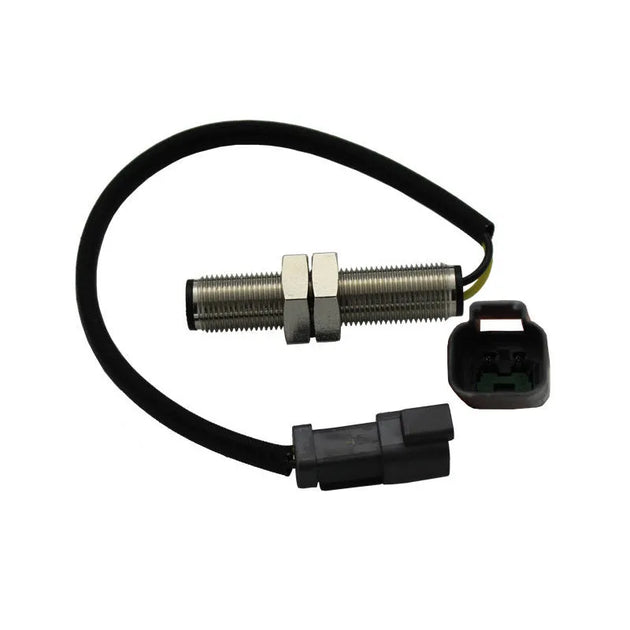

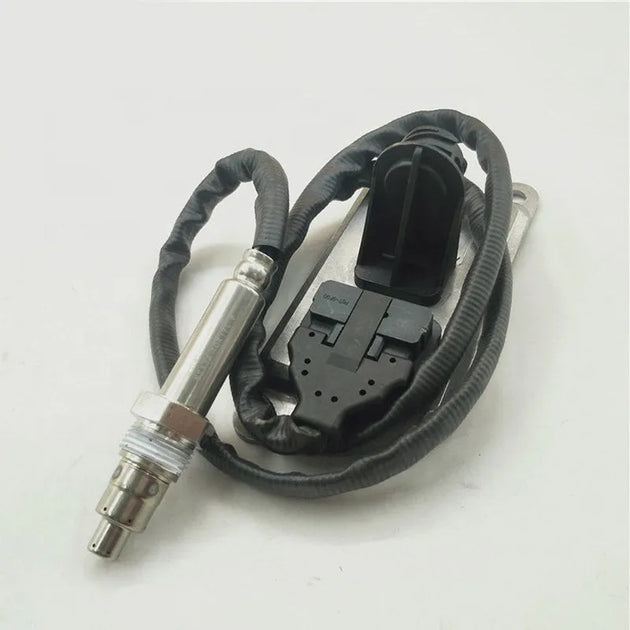

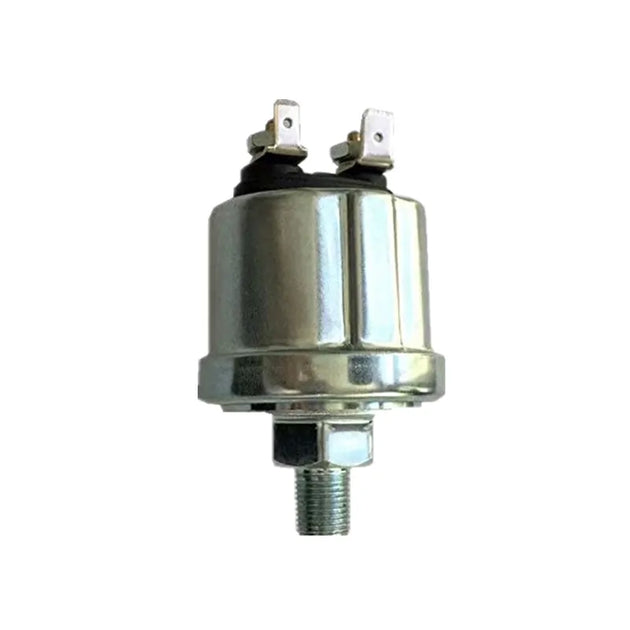

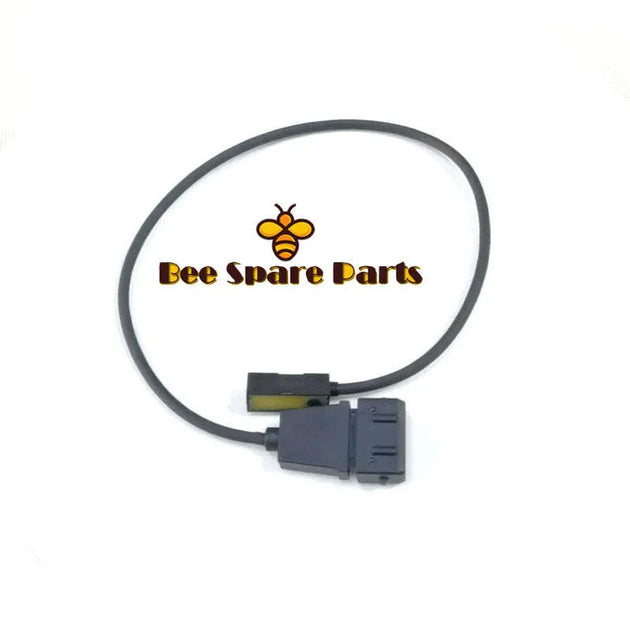

4. Sensors and switches
Sensors and switches are electrical devices and serve a similar purpose. Sensors and switches feedback information to the computer board or controller through signals, so that the computer board or controller can perform corresponding actions according to the corresponding program. The difference is that the sensor generates pulse signals and transmits information to the control center continuously, while the switch has a threshold, and it is energized only when it exceeds or falls below the threshold and feeds back to the control center. Sensors usually include temperature sensors, pressure sensors, rotational speed sensors, etc., and switches are mainly temperature switches and pressure switches.
