Filter and sort
Electrical Parts
-
Vendor: Others
Voltage Rectifier Regulator for KYMCO Xciting 250 300 500 Downtown 125 200 300
Regular price $ 25 -
Vendor: John Deere
Voltage Rectifier Regulator CH15589 M802471 MIA881277 6 Wire 12V for John Deere Utility Tractor JD650 JD750
Regular price $ 25 -
Vendor: Others
Voltage Rectifier Regulator 32800-19B00 For Suzuki LT160 LTF250 LTF300 89-01 New
Regular price $ 20 -
Vendor: Others
Universal Automatic Voltage Regulator AVR GAVR-15B GAVR15B
Regular price $ 42 -
Vendor: John Deere
Trail Buck 4x4 650 05 Regulator 710000449 24474 For John Deere
Regular price $ 72 -
Vendor: Others
Three Phase Std Basler Electric AVC63-4A AVR Automatic Voltage Regulator
Regular price $ 189 -
Vendor: Others
SX460 AVR Voltage Regulator 305-0982 E000-24600 E000-24602/1P for Generator
Regular price $ 35 -
Vendor: Others
Regulator Rectifier for Yamaha GP1300 Waverunner GP1300R 2005 2006 2007 2008
Regular price $ 32 -
Vendor: Others
Regulator Rectifier for Triumph Daytona 600 Daytona 650 02-06 / Speed Four 02-05
Regular price $ 65 -
Vendor: Others
Regulator Rectifier for Suzuki 32800-44D11 32800-33E00 32800-33E21 32800-33E20
Regular price $ 32 -
Vendor: Others
Regulator Rectifier for Suzuki 32800-08D00 32800-29F00
Regular price $ 22 -
Vendor: Kohler
Regulator Rectifier for Kohler 2575503S 4140305 4140309 New
Regular price $ 18
What are the electrical parts?
The electrical system has three main functions. One is to power the starter motor through the battery, causing the starter motor to run and complete the initial stage of the stroke work through the crankshaft connecting rod structure, and exit the next working system after the engine is started, so this part is sometimes called the engine's The main component of the starting system is the starter motor; the second is to ensure the normal operation of the engine during work, ensuring normal oil supply, normal air intake, and starting protection devices when encountering high temperatures and high pressures. The main components include various sensors and switches. Third, during operation, the charger is driven by the engine to charge the battery and ensure that the battery is fully charged. The main component is the charger.
The electrical system can be classified according to the speed control system of the engine. The electrical system of the machine control is relatively simple, including only the starter, charger, and switch with sensor function. Of course, some assembly plants may have additional wiring in the control box of the unit. , a sensor is installed in the engine for control; in addition to the mechanical starter and charger, the ESC also has an electronic speed regulator and actuator; while the EFI/electronic control is more complex, and its main features are various There are many sensors and they are controlled by a computer board.
1. Battery
The battery is generally not a product that comes with the engine, but is selected, tested and matched by the assembler. The usual voltage is 12V or 24V, and its main function is to power the starter motor, ECM and other electrical equipment. Under normal circumstances, when the engine is running once, the battery is fully charged, because although the battery is discharged in the early stage, it will be fully charged again during the engine running process.
2. Starting motor
The essence of a starter motor is an electric motor. The principle is the magnetic effect of current, which generates a magnetic field through energization and promotes the rotation of the starter. The starter is installed on the side of the timing gear. When starting, the probe of the starter stretches out, contacts the timing gear box gear, and pushes the gear to rotate. After reaching a certain speed, usually 250-300 rpm, the probe It will retract. At this time, the engine can run normally and the work of the starter motor is completed.
An introduction to the main systems of the engine - Youjia
3. Charger
It is also called an alternator, so it is essentially a small generator based on the principle of electromagnetic induction. Driven by the engine, the coil cuts the magnetic induction lines to generate current and supplies it to the battery. The gear of the charger is connected to the crankshaft gear through a belt, and its power is also provided through the crankshaft. The charger is equivalent to a microcosm of a diesel generator set and usually includes excitation windings, etc. We will discuss this later when we introduce the electric ball.
An introduction to the main systems of the engine - Youjia
4. Sensors and switches

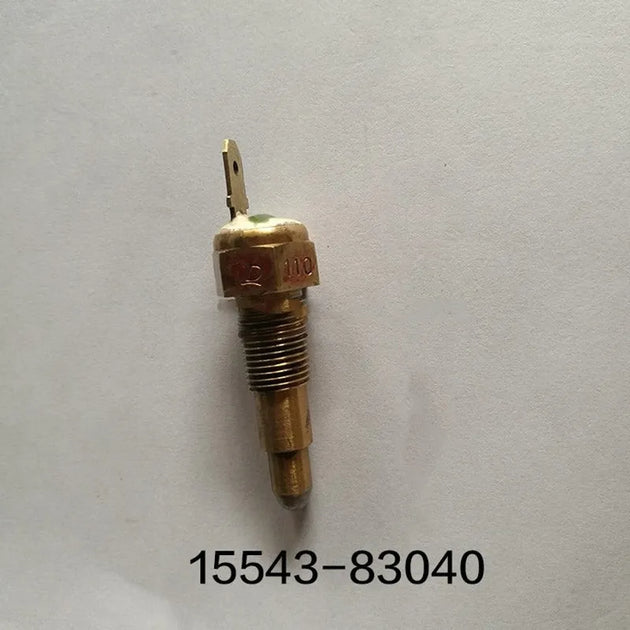

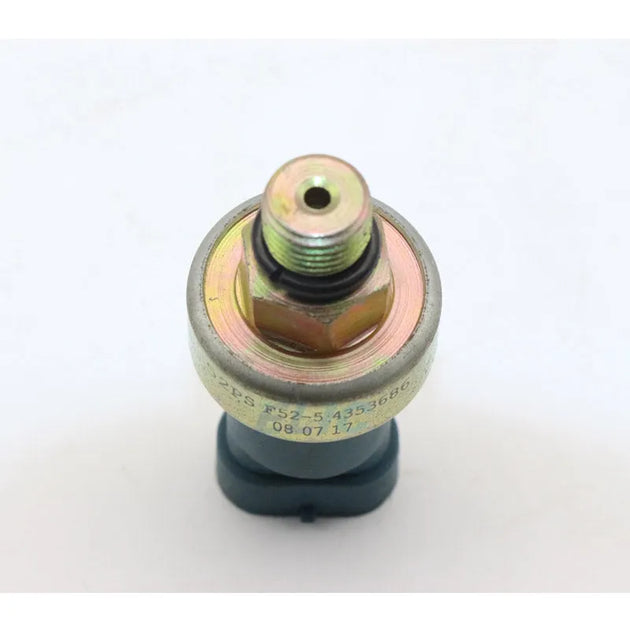

Sensors and switches are electrical devices and serve a similar purpose. Sensors and switches feedback information to the computer board or controller through signals, so that the computer board or controller can perform corresponding actions according to the corresponding program. The difference is that the sensor generates pulse signals and transmits information to the control center continuously, while the switch has a threshold, and it is energized only when it exceeds or falls below the threshold and feeds back to the control center. Sensors usually include temperature sensors, pressure sensors, rotational speed sensors, etc., and switches are mainly temperature switches and pressure switches.
