Pistons Rings Timing Chain Tensioner Crankshaft Connecting Rod Bearing Shell Oil Seals Gasktets
Engine Overhaul Reconstruction Kit  For VW Golf R MKVII GTI Clubsport S Audi S3 8V TTS
Skoda Seat Leon Cupra 2.0 TSI TFSI CJX CYF DJH DNU
Please confirm your original piston pin bolt is Φ23mm

Please read carefully the "Fit Car Model" in the following


Pistons & Rings OE#                         Pistons & Rings Replacement OE#
06K 107 065 C                                   06K 107 065 AG / CJ
N 911 766 01  ( Φ23mm)                    KOLBENSCHMIDT : 41533600
06H 198 151 C

Pistons & Rings Spec
- STD 0.00 spec (no fit cylinder expand)
- Cylinder Bore  Φ 82.51mm
- Piston Wrist Diameter  Φ 23mm
- Ring Thickness 1.2mm / 1.2mm / 2.0mm
-  Compression ratio 9.3 :1


Valves OE#                                        Replacement OE#
06D 109 601 M                                  06D 109 611 L / T
06D 109 611 H


Bearing Shell OE#                             Bearing Shell Replacement OE#
06H 105 561 K                                   N/A
06H 105 591 K                                    N/A
06H 105 701 P GLB                           N/A


Seals & Gasket Kit OE#                           Included Parts
06K 103 383 K /    06K 103 483                Valve oil seal
06H 103 483 D /   06H 103 484 A             Cylinder Head Gasket
06F 129 717 D /   06F 253 039 F              Crankshaft oil seal
1K0 253 115 AB / 06J 117 070 C              Camshaft oil seal
06J 115 441 A /    06J 121 119                 Intake &  Exhaust manifold Gasket
06H 103 121 J /    06H 103 171 F             Valve Cover Gasket
06H 103 085 G /   036 109 675 A

Timing Chain Kit OE#                                Included Parts
06K 109 467 P / 06H 109 467 AE              Timing Chain Tensioner
06K 109 158 A / 06K 109 158 F                 Timing Chain (Long)
06H 109 469 AQ / 06H 109 469 AH           Timing Chain (Short)
06H 109 469 AP / 06H 109 469 T              Timing Gear
06H 109 509 P / 06H 109 509 Q                Timing Guide Set
06K 109 507 N / 06H 105 209 AQ              Oil Pump Chain
06H 115 225 L                                               Oil Pump Chain Tensioner

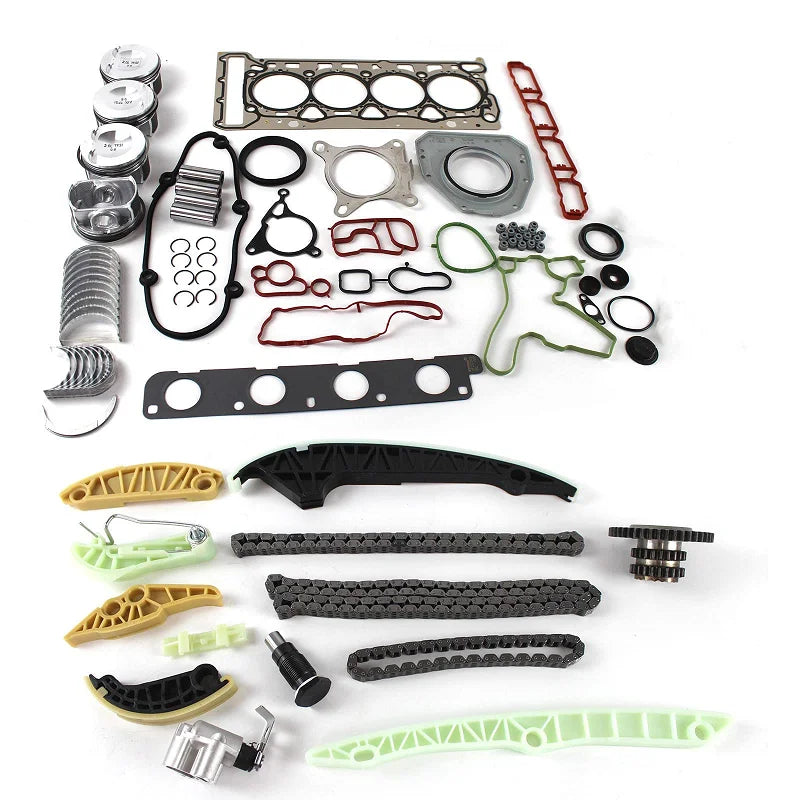

Package includes
Piston & Ring        x4
Bearing Shell        x1 set
16pcs valves         x1 set
Repair Kit              x1 set
Timing Kit              x1 set
Head Bolt              x10 pcs



Fit Car Model


Brand & Model            Produce Year          Fit Engine
Audi
Piston wrist Φ23mm / Compression ratio 9.3 :1
S3 (8V)    2014-2020    2.0 TFSI CJXB CJXC CJXD CJXG CJXF CYFB DJHA DJHB DNUE
SQ2    2018-2021    2.0 TFSI DNUE
TTS (FV)    2015-2021    2.0 TFSI CJXG CJXF CYFB



Volkswagen
Piston wrist Φ23mm / Compression ratio 9.3 :1
Arteon    2017-2021    2.0 TSI DJHC DLRB DNUA
GTI Clubsport (MK7)      2016-2020    2.0 TSI CJXE
GTI Clubsport S (MK7)     2016-2020    2.0 TSI CJXG
Golf 2.0 R (MK7)    2014-2020    2.0 TSI CJXB CJXC CJXD CJXG CYFB DJHA DJHB DNUC DNUE
Passat (3G)    2015-2020    2.0 TSI CJXA DNUA
T-Roc 2.0 R    2019-    2.0 TSI DNUE



Skoda
Piston wrist Φ23mm / Compression ratio 9.3 :1
Superb (3V)    2015-2020    2.0 TSI CJXA DNFE DNUA



Seat
Piston wrist Φ23mm / Compression ratio 9.3 :1
Leon Cupra (5F)    2015-2020    2.0 TSI CJXA CJXC CJXE CJXH DNUC DNUE
