Pistons Rings Timing Chain Tensioner Crankshaft Connecting Rod Bearing Shell Oil Seals Gasktets
Engine Overhaul Reconstruction Kit For VW Golf Scirocco R Audi S3 TTS Seat Leon Cupra R 2.0 TSI TFSI
CDLA CDLC CDLF CDLG CDLH CDLK CDMA CRZA BHZ BZC BWJ EA113
confirm your original piston pin wrist ( Φ21mm or Φ22mm )


Pistons & Rings OE#
06D 107 066 L / K / S / R
N 905 583 01  ( Φ21mm)
N 012 278 1  ( Φ22mm)
06J 198 151 B

Pistons & Rings Spec
STD 0.00 spec
Piston Diameter  Φ82.5mm
Pin bolt Diameter  Φ21mm /  Φ22mm
Ring Thickness 1.2mm / 1.5mm / 2.0mm
Bearing Shell OE#
06B 105 561
06B 105 591
06D 105 701 L GLB

Seals & Gasket Kit OE#
06F 103 483 D
06F 103 383 G / H / J
06A 103 171 A
8E0 253 115 D
Timing Chain Kit OE#
06F 121 011 X
06F 198 119 A
06D 109 243 B
06D 109 119 B
06F 198 119 B
06D 109 243 C
INA - 65425
RUVILLE - 65425
DOLZ - A212
SKF - VKPC 81205
VALEO - 506876

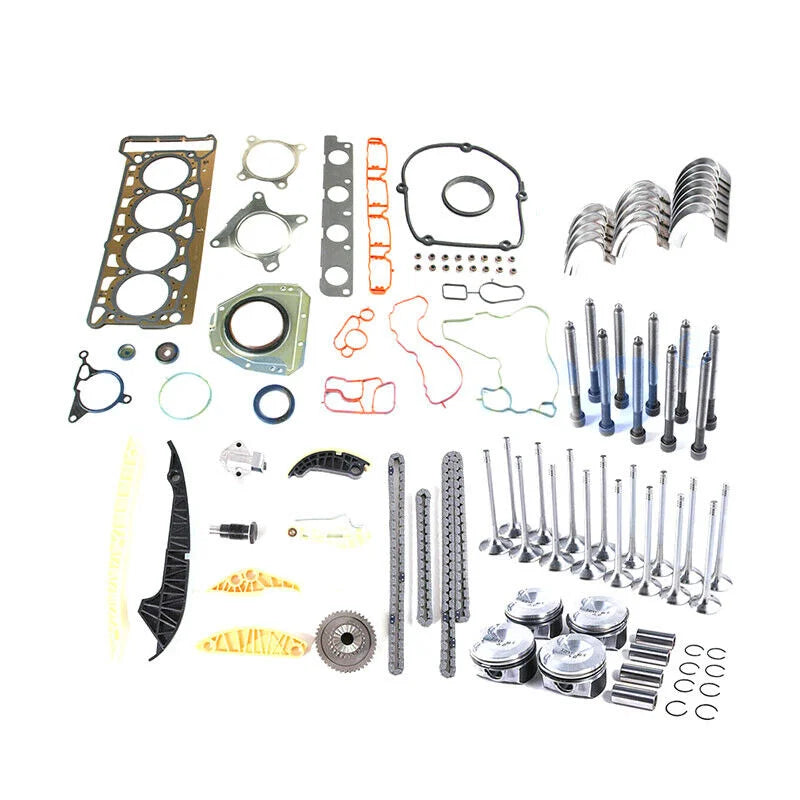

Package includes
Piston & Ring         x1 set
Bearing Shell         x1 set
Gasket Kit             x1 set
Timing Kit              x1 set
Valves                   x1 set
Head Bolt              x10 pcs


Fit Car Model


Brand & Model               Year                         Note
Audi
confirm original piston wrist ( Φ21mm or Φ22mm)
S3 (8P)    2007-2008    2.0 TFSI BHZ BZC
S3 (8P)    2008-2013    2.0 TFSI CDLA CDLC CDLH
TTS (8J)    2009-2014    2.0 TFSI CDMA CDLA CDLB



Volkswagen
confirm original piston wrist ( Φ21mm or Φ22mm)
Golf 2.0 R (MK6)    2010-2013    2.0 TSI CDLG CDLC CRZA CDLF
Golf R Cabriolet (MK6)      2013-2016    2.0 TSI CDLA CDLC
Polo R    2013-2014    2.0 TSI CDLJ
Scirocco 2.0 R    2010-2018    2.0 TSI CDLC CDLA CDLK



Seat
confirm original piston wrist ( Φ21mm or Φ22mm)
Leon / Cupra R    2007-2009    2.0 TSI BWJ 177kw (241ps)
Leon / Cupra R    2010-2013    2.0 TSI CDLA CDLD
