Engine Overhaul Repair Rebuilding Kit Pistons Rings Timing Chain Tensioner
Crankshaft Connecting Rod Bearing Shell Oil Seals Gasktets For
VW Golf GTI AUDI A3 A4 A5 Q5 TT 2.0 TFSI TSI EA888 Gen3
CNCB CNCD CNCE CHHA CHHB CNTA CNTC CXDA CXDC CULC
It's oversized version 83.01mm (+0.50mm) ,used for expanded cylinder

Completely solve oil consumption issue


Pistons & Rings OE#
06L 107 065 E / K / P / AG / AR / BR
06K 107 065 D / F / K / T / AB / AD / AR  / BL / CG
N 911 766 01 (Φ23mm)
06H 198 151 F
Pistons & Rings Spec
- Oversize +0.50 spec
- Cylinder bore  Φ 83.01mm
-  Piston Diameter  Φ 82.975mm
- Pin Diameter  Φ 23mm
- Ring thickness 1.2mm / 1.2mm / 2.0mm

Valves OE#
06D 109 601 M
06D 109 611 H / L / T

Bearing Shell OE#
06H 105 561 K
06H 105 591 K
06H 105 701 P GLB

Seals & Gasket Kit OE#
06K 103 383 K /    06K 103 483
06H 103 483 D /   06H 103 484 A
06F 129 717 D /   06F 253 039 F
1K0 253 115 AB / 06J 117 070 C
06J 115 441 A /    06J 121 119
06H 103 121 J /    06H 103 171 F
06H 103 085 G /   036 109 675 A

Timing Chain Kit OE#
06K 109 467 P / 06H 109 467 AE
06K 109 158 A / 06K 109 158 F
06H 109 469 AQ / 06H 109 469 AH
06H 109 469 AP / 06H 109 469 T
06H 109 509 P / 06H 109 509 Q
06K 109 507 N / 06H 105 209 AQ
06H 115 225 L

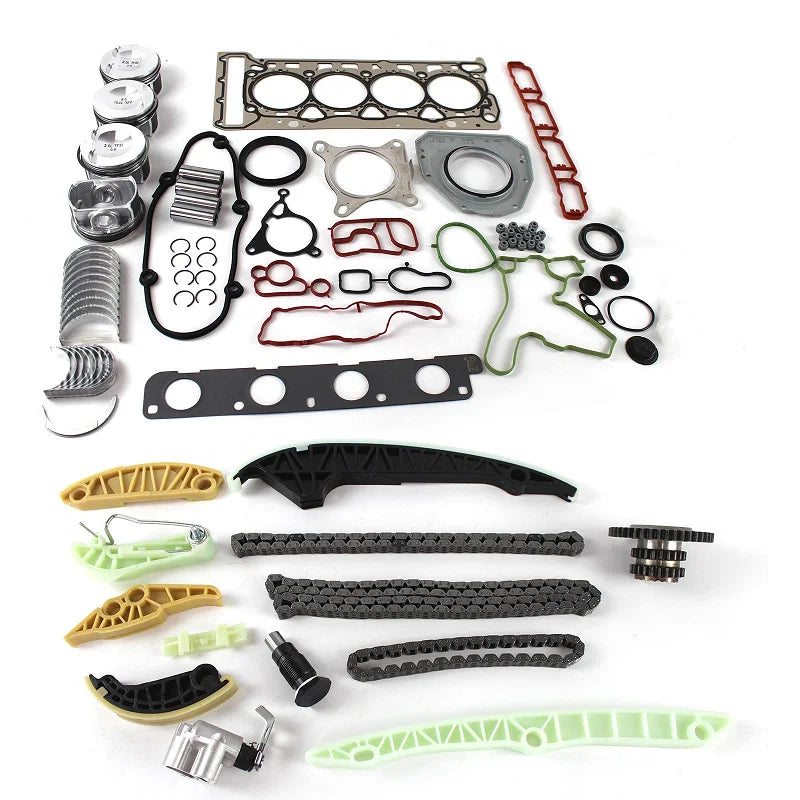

Package includes
Piston & Ring      x 1 set
Bearing Shell       x1 set
Valves                x1 set
Seals Kit             x1 set
Timing Kit           x1 set
Head Bolt           x 1 set



Fit Car Model


Brand & Model             Produce Year          Fit Engine
Audi
Cylinder bore oversized Φ83mm
A1    2015-2018    2.0 TFSI CWZA
A3 (8V)    2014-2020    2.0 TFSI CHH CNT CZP
A4 (B8,B9)    2013-2021    2.0 TFSI CNC CVK CVL CYR CYM DBP
A5 (B8,B9)    2013-2021    2.0 TFSI CNC CVK CVL CYR CYM
A6 (C7,C8)    2015-2022    2.0 TFSI CYN CYP DKN DKY
A7    2015-2022    2.0 TFSI CYN CYP DKN DKY
A8    2014-2017    2.0 TFSI CYP
Q2    2017-2022    2.0 TFSI CZP DKZ
Q3    2015-2022    2.0 TFSI CUL CZP CZR
Q5    2013-2021    2.0 TFSI CNC DAX DJY
Q7    2016-2022    2.0 TFSI CVJ CYM CYR
TT    2015-2022    2.0 TFSI CHH CNT



Volkswagen
Cylinder bore oversized Φ83mm
Arteon    2017-2022    2.0 TSI CZP DKZ
Atlas    2018-2022    2.0 TSI CXD
Beetle    2012-2019    2.0 TSI CUL
Golf GTI    2014-2020    2.0 TSI CHH CNT CXD
Jetta GLI    2013-2021    2.0 TSI CPL CPP CXD
Passat (EU)    2015-2020    2.0 TSI CHH CZP
Scirocco    2015-2018    2.0 TSI CUL
Tiguan    2018-2022    2.0 TSI CXD



Skoda
Cylinder bore oversized Φ83mm
Octavia RS    2014-2020    2.0 TSI CHH CNT
Superb    2014-2020    2.0 TSI CHH CNT



Seat
Cylinder bore oversized Φ83mm
Ateca    2016-2021    2.0 TSI CZP DKZ
Leon    2016-2020    2.0 TSI CZP DKZ
