Pistons Rings Timing Chain Tensioner Crankshaft Connecting Rod Bearing Shell Oil Seals Gasktets
Engine Overhaul Reconstruction Kit For VW AUDI 2.0 TFSI


Confirm your original piston pin bolt is Φ21mm


Pistons & Rings OE#                         Pistons & Rings Replacement OE#
06H 107 065 AM                               06H 107 065 AB / BE / CM / DD / DM
N 905 583 01 ( Φ21mm)                     06H 107 099 AM
06H 198 151 B                                  06H 198 151 C / J
MAHLE -  028 PI 00 119 000              06J 198 151 B/C


Pistons & Rings Spec
STD 0.00 spec (no fit cylinder expand)
Cylinder bore 82.51mm （3.25" / 3.25in.）
Pin bolt Diameter  Φ 21mm
Ring Thickness 82.5x1.2, 82.5x1.5 , 82.5x2.0
Buckle Size 21x1.5mm


Valves OE#                                        Replacement OE#
06D 109 601 M                                  06D 109 611 L / T
06D 109 611 H


Bearing Shell OE#                             Replacement OE#
06H 105 561 L                                   06H 105 561 A
06H 105 591 L                                    06H 105 591 A
06H 105 701 D GLB                            06H 105 701 C GLB
WHT 000 033 D


Seals & Gasket Kit OE#
06J 103 383 D /    06H 103 483 C
06H 103 483 D /   06H 103 484 A
06F 129 717 D /   06F 253 039 F
1K0 253 115 AB / 06J 117 070 C
06J 115 441 A /    06J 121 119
06H 103 121 J /    06H 103 171 F
06H 103 085 G /   036 109 675 A

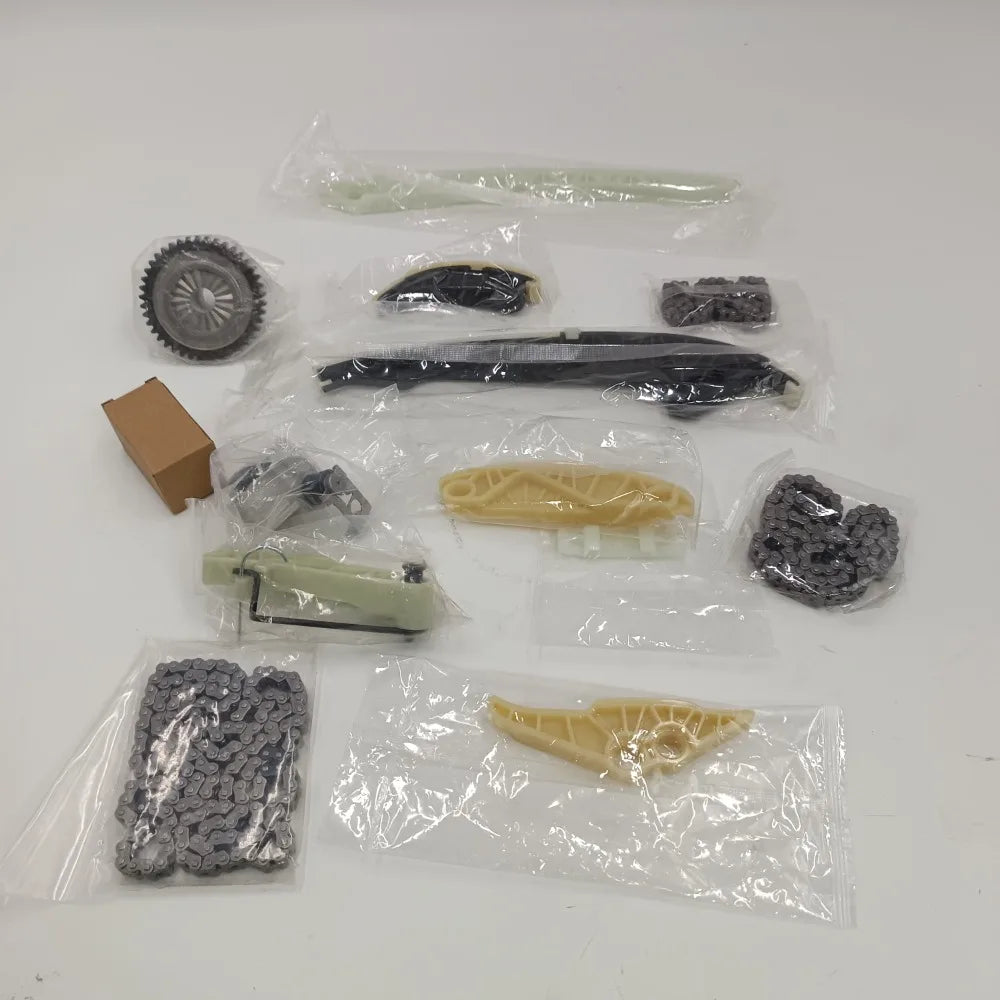

Timing Chain Kit OE#
06H 109 467 N / 06H 109 467 AE
06H 109 158 H / 06H 109 158 J
06H 109 469 AQ / 06H 109 469 AH
06H 109 469 AP / 06H 109 469 T
06H 109 509 P / 06H 109 509 Q
06H 109 507 N / 06H 105 209 AQ
06H 115 225 L

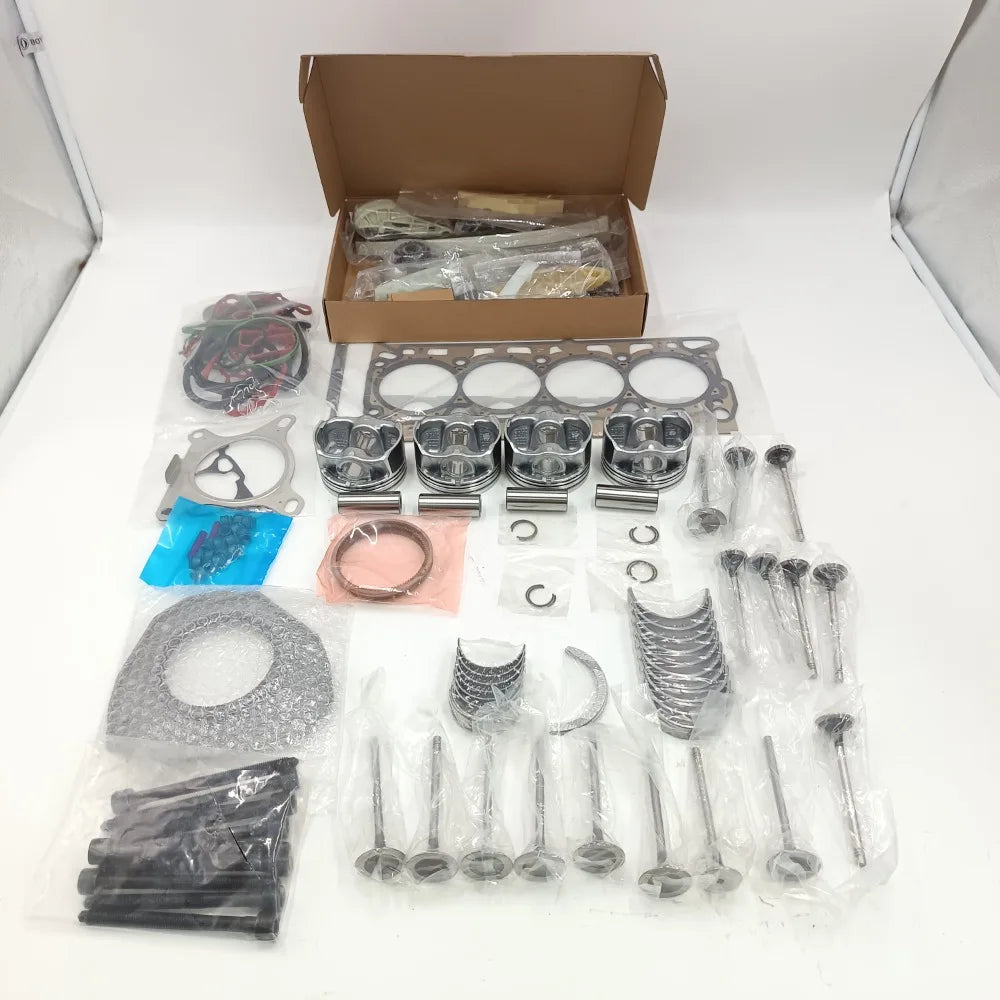

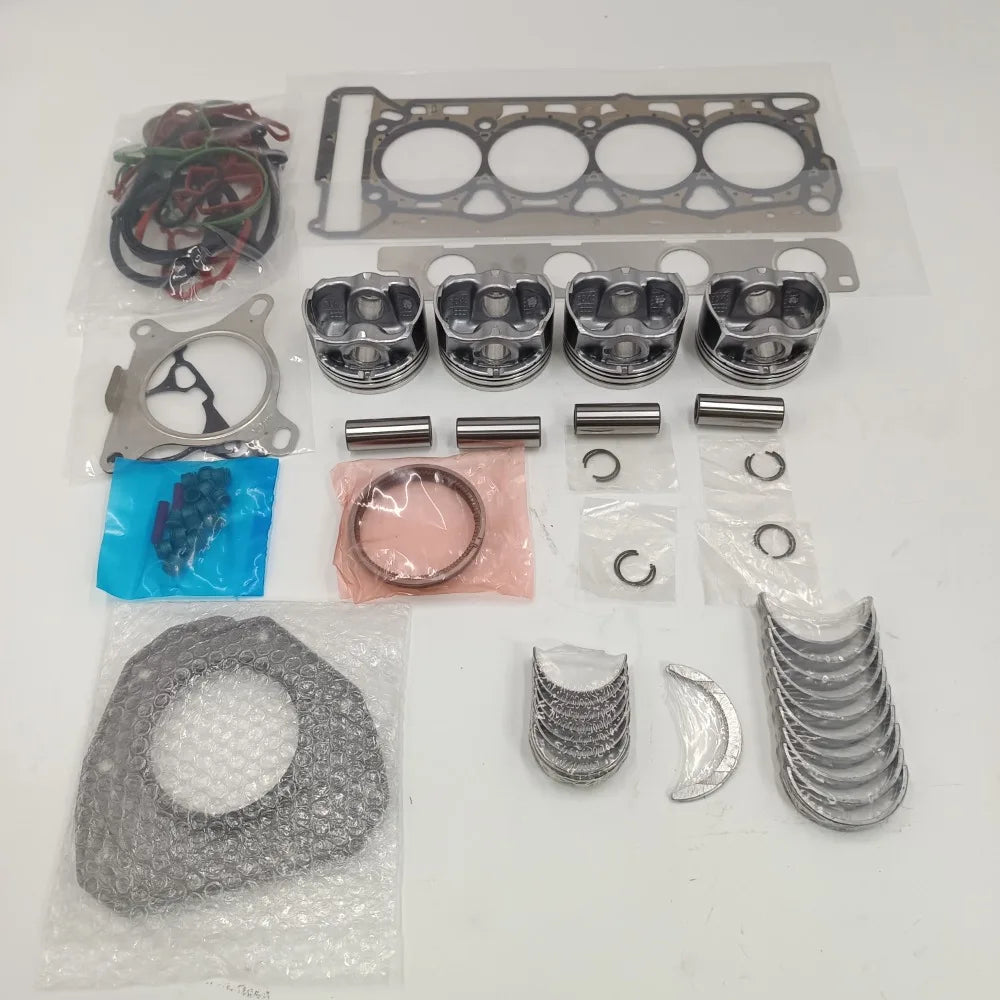

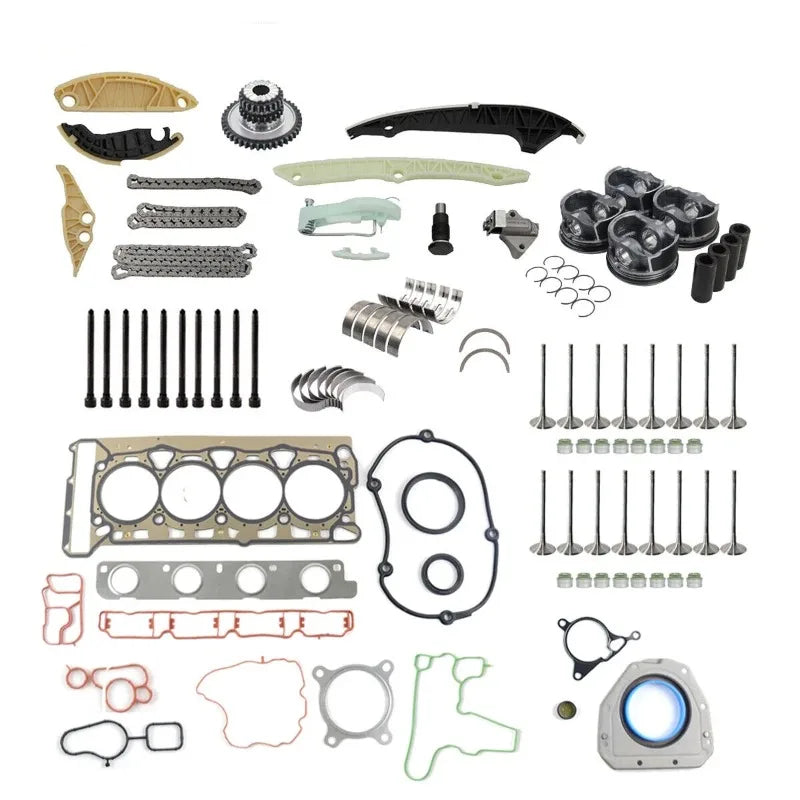

Package includes
Piston & Ring    x1 set
Bearing Shell     x1 set
Thrust washer   x1 set
16pcs valves     x1 set
Repair Kit         x1 set
Timing Kit        x1 set
Head Bolt         x10 pcs


Fit Car Model


Brand & Model                 Produce Year          Fit Engine
Audi
Piston pin bolt Φ21mm
A3 / A3 Quattro    2008-30.5.2011    2.0 TFSI CAWB CCTA CCZA CBFA
A4 / A4 Quattro    2009-30.5.2011    2.0 TFSI CAEA CAEB CDNB CDNC
A4 Allroad Quattro    2010-30.5.2011    2.0 TFSI CDNC
A5 / A5 Quattro    2008-30.5.2011    2.0 TFSI CAEB CDNB CDNC
Q5    2009-30.5.2011    2.0 TFSI CAEB CDNB CDNC
TT / TT Quattro    2007-2010    2.0 TFSI CCTA CCZA



Volkswagen
Piston pin bolt Φ21mm
EOS    2009-30.4.2011    2.0 TSI CCTA CCZA CCZB CBFA
Golf GTI    2008-2011    2.0 TSI CAWB CCTA CBFA CCZB
Jetta     2009-2011    2.0 TSI CCTA CCZA CAWA CAWB CBFA
Passat    2008-2011    2.0 TSI CCTA CCTB CAWB CCZA
Passat CC    2009-30.5.2011     2.0 TSI CCTA CAWB CBFA
Scirocco    2009-30.4.2011    2.0 TSI CAWB CCZB
Tiguan    2008-2011    2.0 TSI / 2.0 TFSI



Skoda
Piston pin bolt Φ21mm
Octavia    2009-15.5.2011    2.0 TSI CCZA
Superb    2008-15.5.2011    2.0 TSI CCZA
