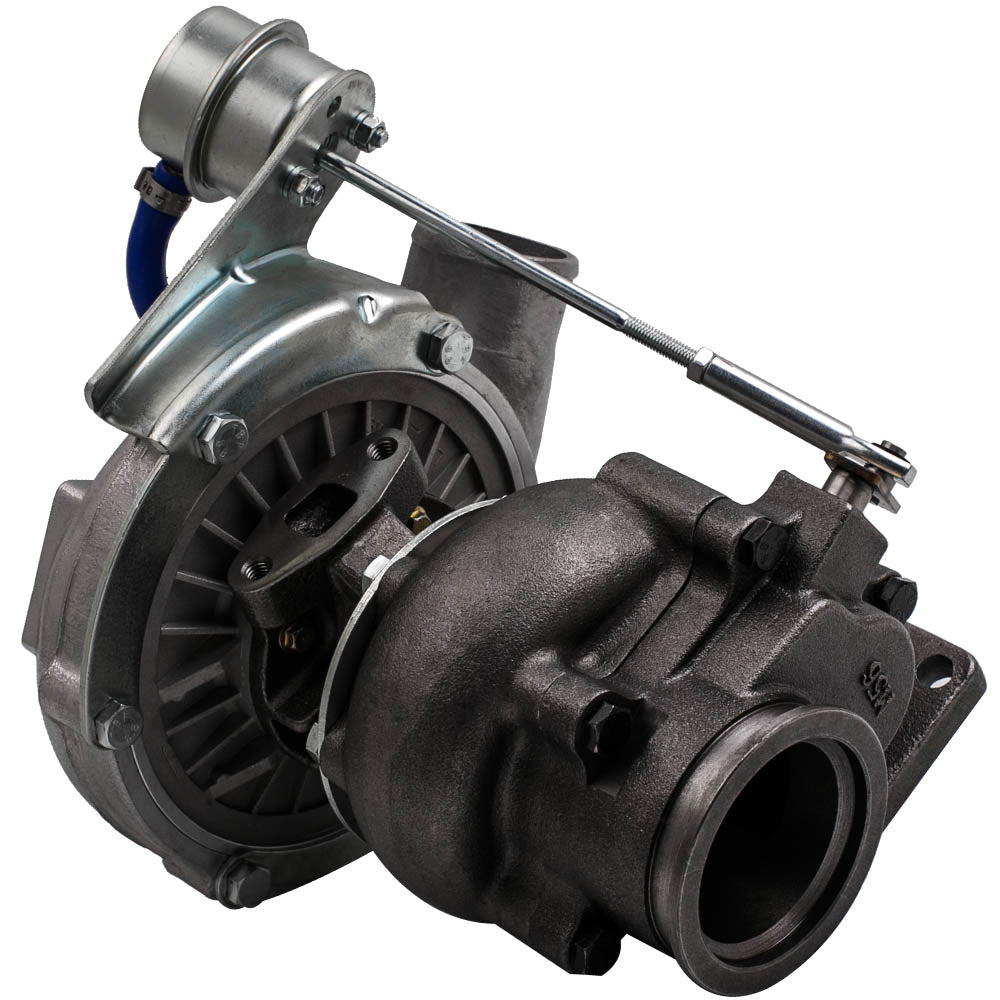

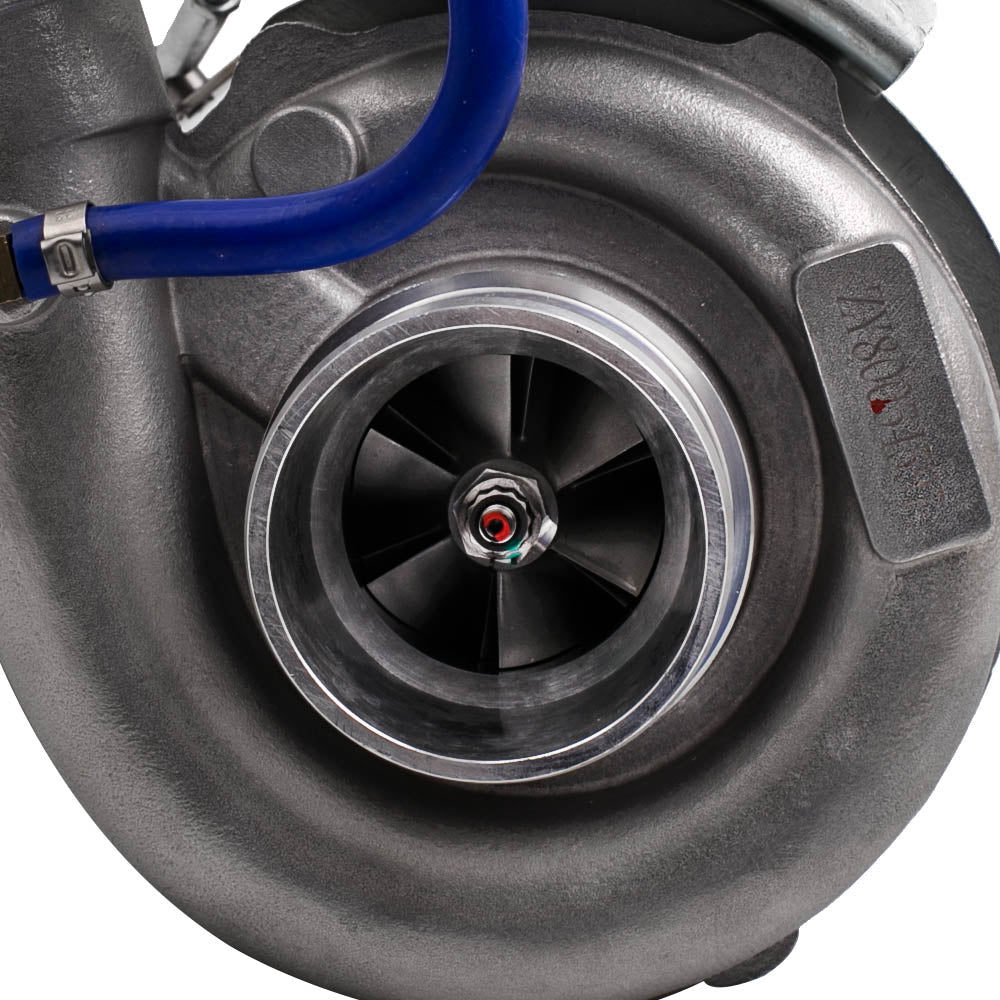

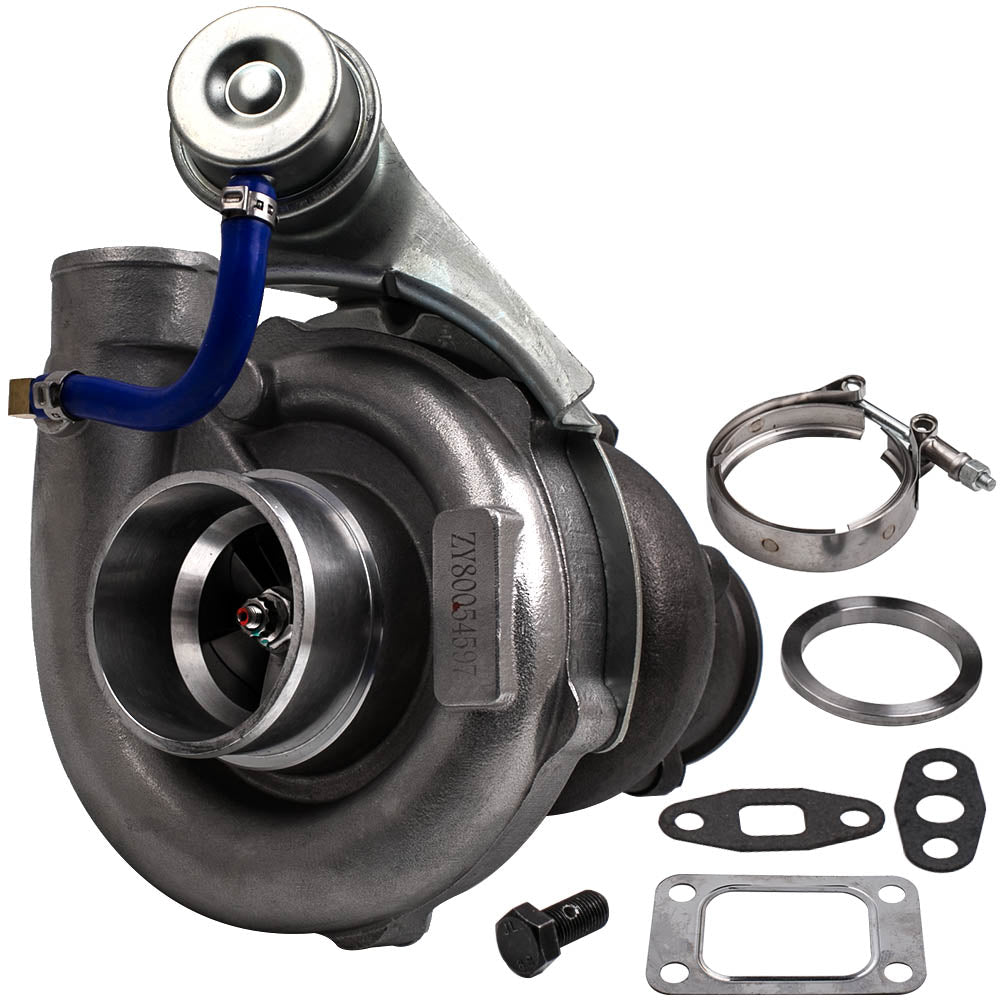

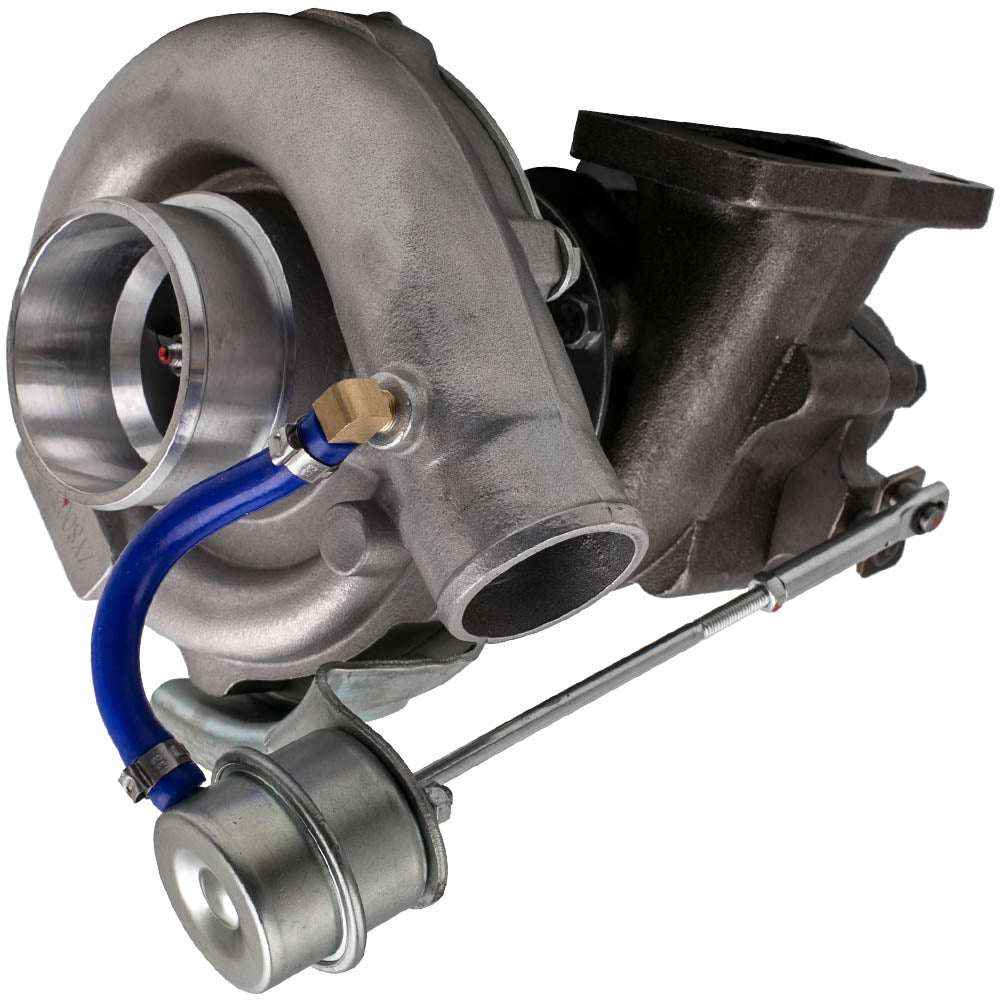

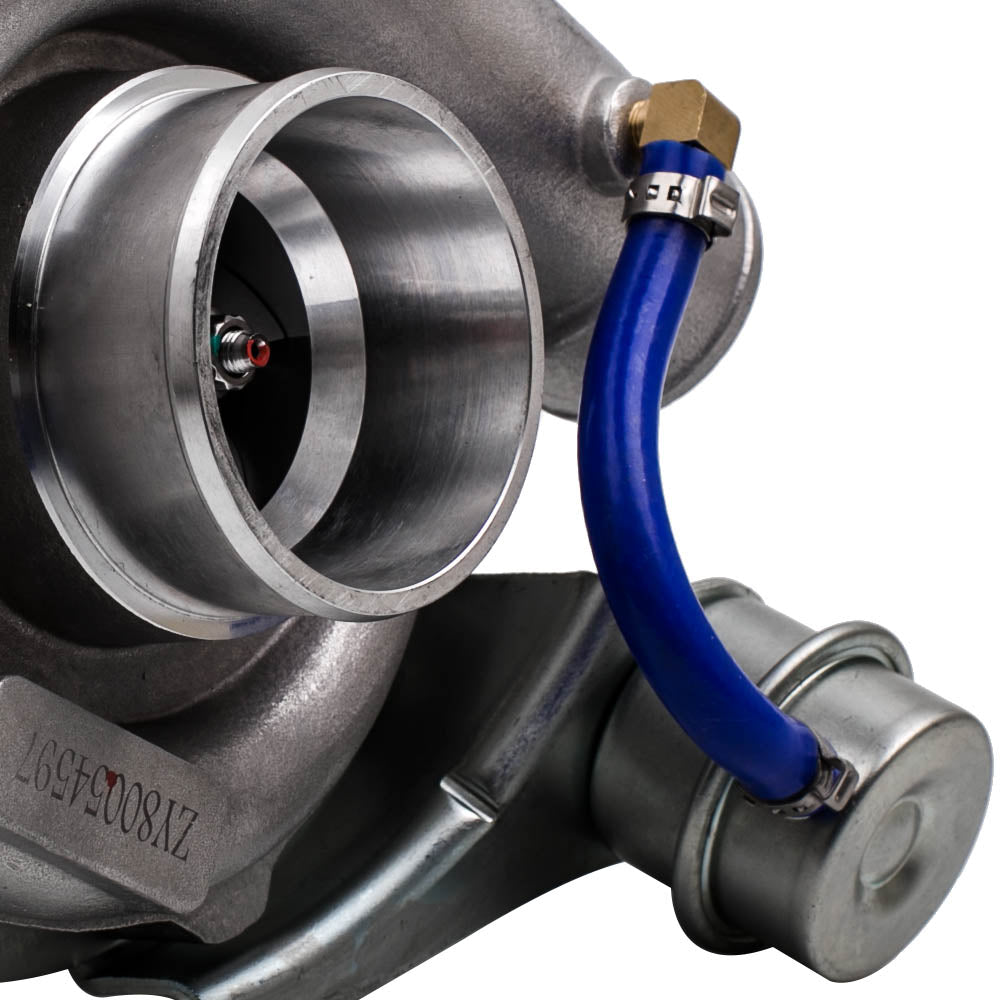

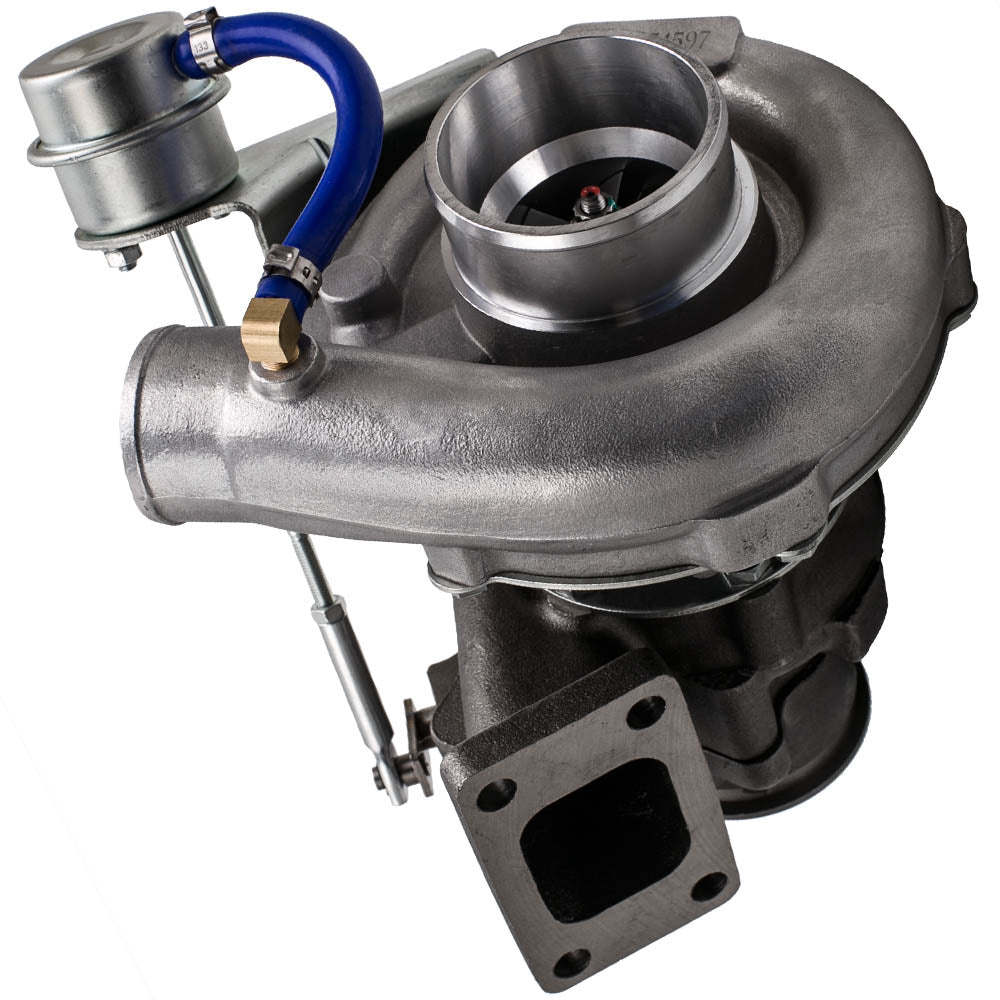

GT35 GT30 T3T4 T04E T3 Turbo Turbine 0.73 0.5 a/r 2.5 INCH v-band journal turbo turbocharger Turbolader for 4 6 Cyl

Application:

Perfect for all 4 or 6 CYL, 1.5L- 2.5L engines

Horse Power: Capable of Boosting Horse Power up to 420HP

Bearing: Journal Bearing


Specification:

Exhaust Inlet (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns

Exhaust Outlet (Downpipe) Flange: V-Band Flange

Bearing: Journal Bearing

Cooling Type: Oil Cooled

Wastegate: Internal Wastegate


Compressor：

Trim: 48.1

A/R: 0.5

Inducer: 52.7mm

Exducer: 76mm

----------------------

Turbine:

Trim: 74.2

A/R: 0.63

Inducer: 64.8mm

Exducer: 55.8mm

----------------------

Turbine exhaust  outlet : 79mm

Turbine exhaust inlet：44.7mm/85.8mm

Compressor outlet：78 mm

Compressor inlet：51.5 mm


Feature

KEY FEATURES

-High Quality Material, Cast Housing with Durable Steel

-Boost Engine Horsepower Significantly

-Increase Engine Power and Torque Outpout;

-Maintain Combustion Chamber Pressure and Fuel/Air Load

-Contructed with High Quality Material

-Built for Durability and Strength
