Product Description

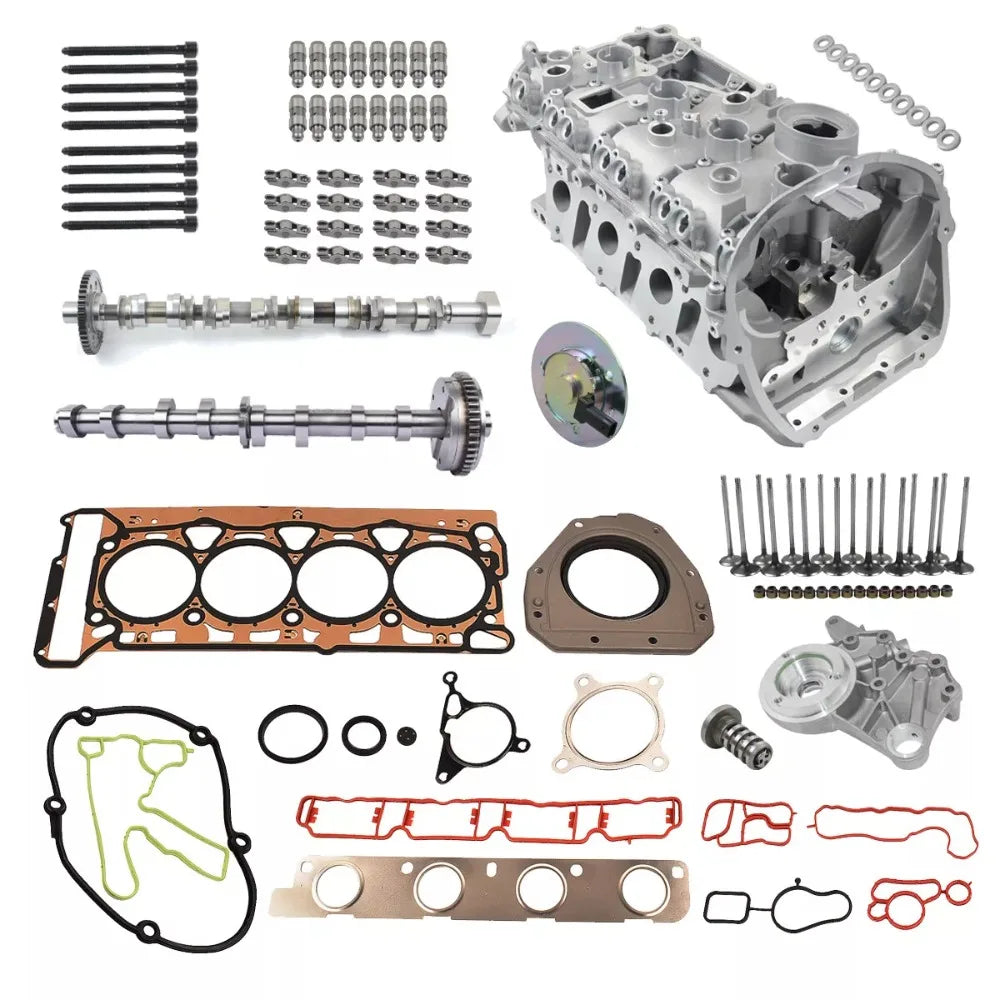

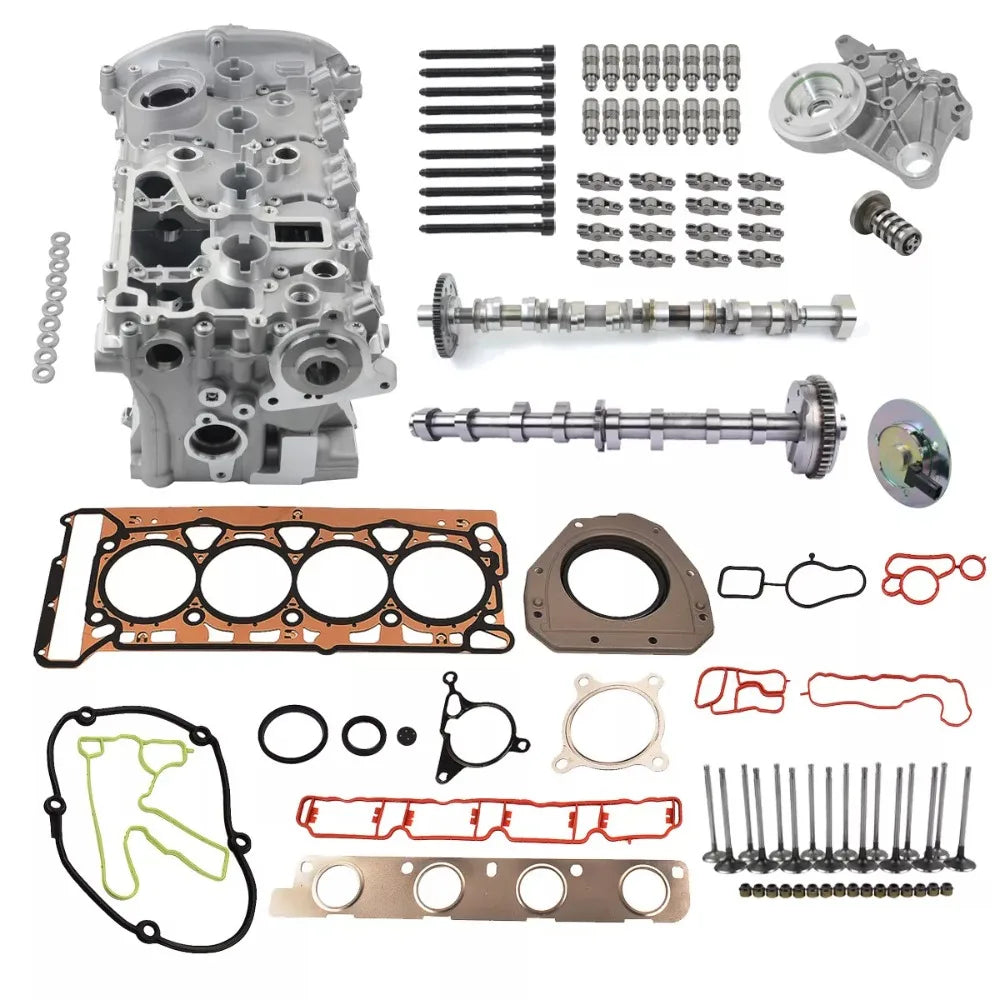

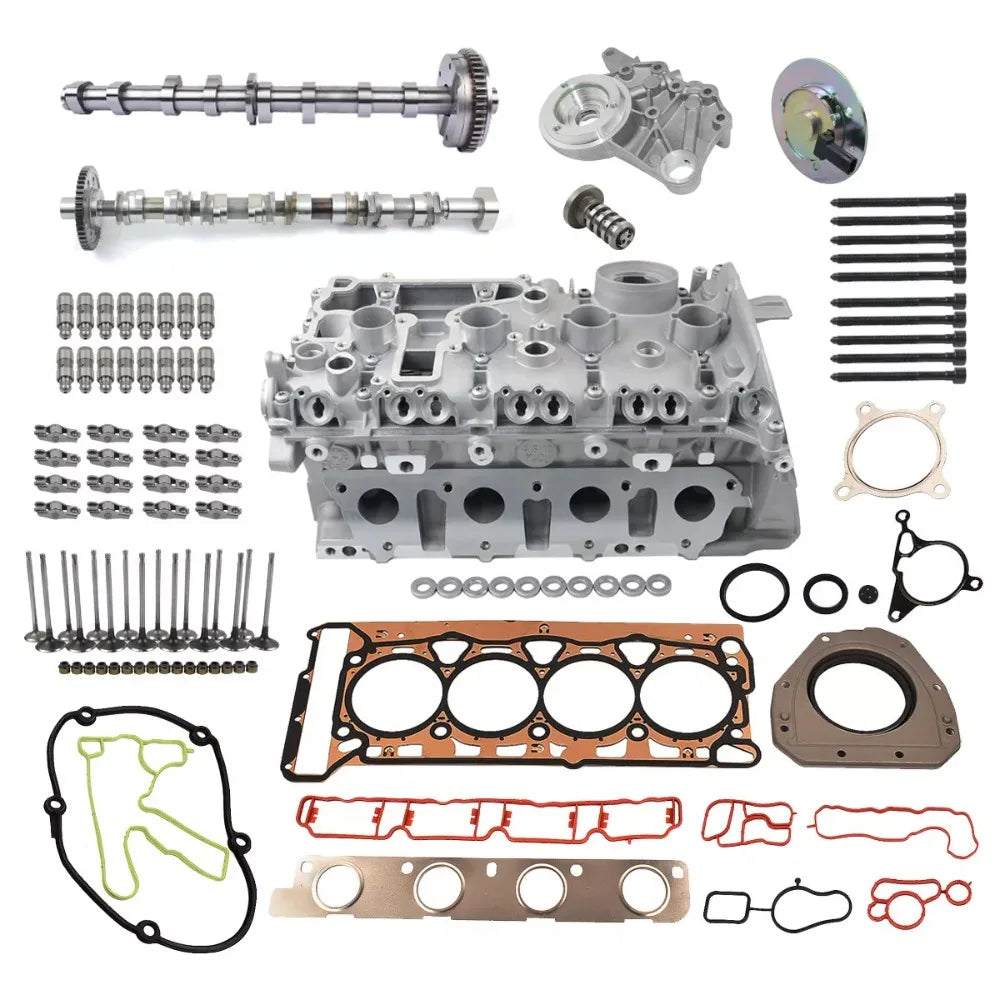

Engine Cylinder Head Rebuild Overhaul Repair Camshaft Valves Seals Gaskets Hydraulic Lifters Rocker Arms Kit
For Audi A4 B8 A5 A6 A8 Q5 TT 2.0TFSI CAEA CAEB CAED CDNB CDNC CESA CETA


Please note me your "Engine Code" when you purchase


-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Cylinder Head OE# Description
06H 103 064 AC - Brand New with Valve conduit ducts
06H 103 064 L
06H 103 064 LX
06H 103 064 N
06H 103 064 NX
06H 103 064 R
06H 103 064 RX
06H 103 475 H
06H 103 264 AX
06H 103 063 L
06H 103 063 LX

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


Camshaft OE# Description
06H 109 022 BG -100% Brand New
06H 109 571 M - OE Genuine
06H 109 021 K
06H 109 088 C
06H 109 021 C / E / G / J
06J 109 088
06H 109 022 BD / BJ
06H 109 022 L / M
06H 109 571 G
06H 103 144 H
06H 103 144 F / G / J
06J 103 166 A
INA - F-347413.09
INA - F-347413.08

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Intake Exhaust Valves OE# Description & Size
06D 109 601 M - Intake length 104mm / Base Diameter 34mm
06D 109 611 H - Exhaust length 102mm / Base Diameter 28mm
06D 109 611 L / T - Valve stick diameter 6mm / Valve seat angle 45°



--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Tappets & Rock arms OE# Description
06E 109 417 E - INA Genuine
022 109 423 D - 100% Brand New
022 109 423 A
06J 109 423 A
06E 109 417 P
06E 109 409 A / K / M


--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Seals & Gasket Kit OE# Included Parts
06H 103 383 AD / 06H 103 483 C Valve oil seal
06H 103 483 D / 06H 103 484 A Cylinder Head Gasket
06F 129 717 D / 06F 253 039 F Crankshaft oil seal
1K0 253 115 AB / 06J 117 070 C Camshaft oil seal
06J 115 441 A / 06J 121 119 Intake & Exhaust manifold Gasket
06H 103 121 J / 06H 103 171 F Valve Cover Gasket
06H 103 085 G / 036 109 675 A


--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


Package includes
Cylinder Head x1
Intake Cam x1
Exhaust Cam x1
Cam Bridge Mount x1
Seals Repair Kit x1 set
Head Bolt x10 pcs
Valves x16 (installed)
Valve stem oil seal x16 (installed)
Valve Spring x16 (installed)
Lifters & Arms x16


Fit Car Model

Brand & Model    Year    Engine Code
Audi

A4 (B8)    2009-2015    2.0 TFSI CAEA CAEB CAED CDNB CDNC
A4 allroad    2010-2013    2.0 TFSI CDNC
A5    2009-2016    2.0 TFSI CAEB CAED CDNB CDNC
A6 (C7)    2012-2014    2.0 TFSI CAEB CAED CDNB
Q5    2009-2016    2.0 TFSI CAEB CDNB CDNC
TT    2011-2014    2.0 TFSI CESA CETA
