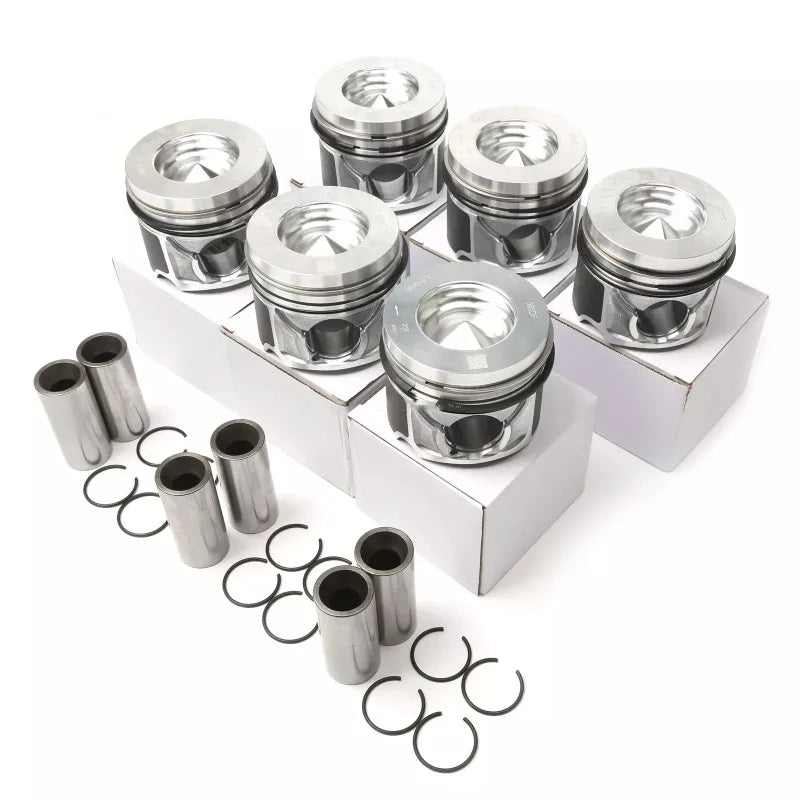

6x Pistons & Rings Set 83.01mm Φ30mm
For VW Touareg Phaeton Audi A4 A5 A6 A7 A8 Q5 Q7 3.0 TDI Diesel


Please confirm your piston pin is Φ30mm before purchase

OE#
059 107 065 DF
059 198 151 N
059 107 441  (Φ30mm)

Replacement OE#
059 107 065 BS / CH / DG / DP / FD / JE
059 198 151 K / P

Description
- STD 0.00 spec (no fit cylinder expand)
- Piston Diameter Φ83.010mm
- Pin Bolt Diameter Φ30mm / Length 68mm
- Ring size 1st 83x1.8   2nd 83x2.0   3rd 83x2.0
- Please Read carefully the "Fit Car Model" in the following

Package includes
Piston & Ring        x6
Piston Pin              x6
Piston Pin Buckle  x12



Fit Car Model


Brand & Model               Produce Year         Fit Engine
Audi
Cylinder bore 83.010mm / Piston pin Φ30mm
A4 (B8)    2009-2015    3.0 TDI 150kw (204ps) / 155kw (211ps)  / 176kw (239ps) / 180kw( 245ps)
A4 allroad     2011-2016    3.0 TDI 180kw( 245ps)
A5    2009-2016    3.0 TDI 150kw (204ps) / 155kw (211ps)  / 160kw (218ps) / 176kw (239ps) / 180kw( 245ps)
A6 (C6 , C7)    2009-2017    3.0 TDI 150kw (204ps) / 155kw (211ps)  / 160kw (218ps) / 176kw (239ps) / 180kw( 245ps)
A7    2011-2018    3.0 TDI 150kw (204ps) / 176kw (239ps) / 180kw( 245ps)
A8    2010-2013    3.0 TDI 155kw (211ps) / 176kw (239ps) / 184kw (250ps)
Q5    2009-2017    3.0 TDI 155kw (211ps) / 176kw (239ps) / 180kw (245ps) / 184kw (250ps) / 190kw (258ps)
Q7    2009-2016    3.0 TDI 150kw (204ps) / 155kw (211ps) / 165kw (224ps) / 176kw (239ps) / 180kw (245ps)



Volkswagen
Cylinder bore 83.010mm / Piston pin Φ30mm
Phaeton    2008-2016    3.0 TDI 171kw (234ps) / 176kw (239ps) / 180kw (245ps)
Touareg    2009-2015    3.0 TDI 155kw (211ps) / 165kw (224ps) / 176kw (239ps) / 180kw (245ps)
