Pistons Rings Timing Chain Tensioner Crankshaft Connecting Rod Bearing Shell Oil Seals Gasktets  Engine Overhaul Reconstruction Kit For VW Golf GTI AUDI A3 A4 A5 Q5 TT 2.0 TFSI TSI EA888 Gen 3 CNCB CNCD CNCE CHHA CHHB CNTA CNTC

Please confirm your original piston pin bolt is Φ23mm
Please read carefully the "Fit Car Model" in the following

Pistons & Rings OE#                         Pistons & Rings Replacement OE#
  06K 107 065 D                                  06K 107 065 F / T / AD
N 911 766 01 (Φ23mm)                     06H 198 151 C / E / L
06H 198 151 F                                   06K 198 15

Pistons & Rings Spec
STD 0.00 spec (no fit cylinder expand)
Piston Diameter 82.5mm （3.25" / 3.25in.）
Pin bolt Diameter Φ23mm
Ring Thickness 82.5x1.2, 82.5x1.2 , 82.5x2.0
Buckle Size 23x1.5mm

Valves OE#                                        Replacement OE#
06D 109 601 M                                  06D 109 611 L / T
06D 109 611 H

Bearing Shell OE#                   Bearing Shell Replacement OE#
06H 105 561 K                                   N/A
 06H 105 591 K                                   N/A
06H 105 701 P GLB                             N/A

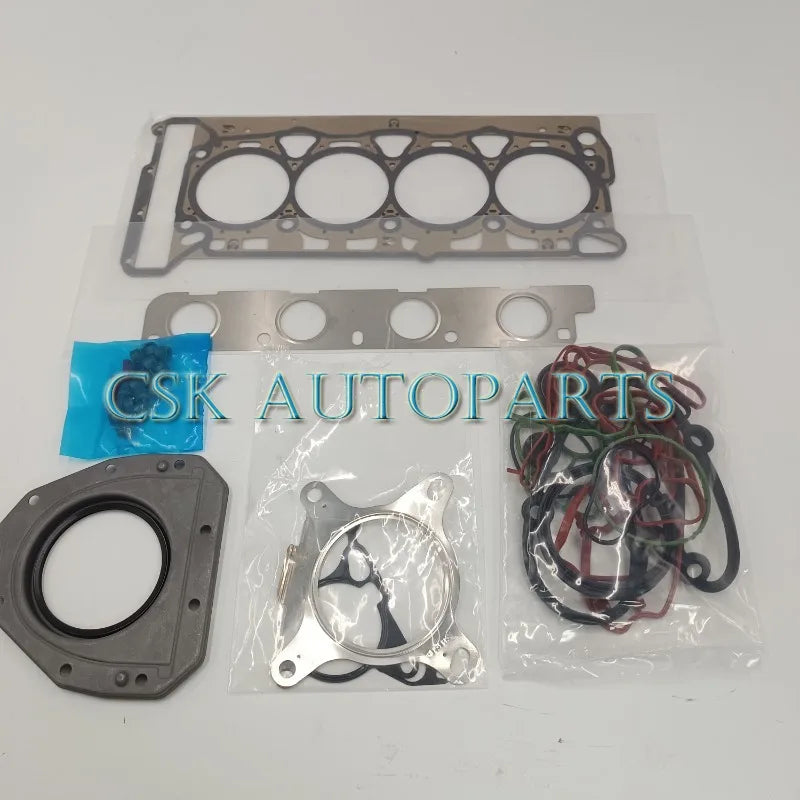

Seals & Gasket Kit OE#                           Included Parts
06K 103 383 K /    06K 103 483                      Valve oil seal
      06H 103 483 D /   06H 103 484 A            Cylinder Head Gasket
06F 129 717 D /   06F 253 039 F             Crankshaft oil seal
1K0 253 115 AB / 06J 117 070 C             Camshaft oil seal
                       06J 115 441 A /    06J 121 119                 Intake & Exhaust manifold Gasket
06H 103 121 J /    06H 103 171 F            Valve Cover Gasket
06H 103 085 G /   036 109 675 A

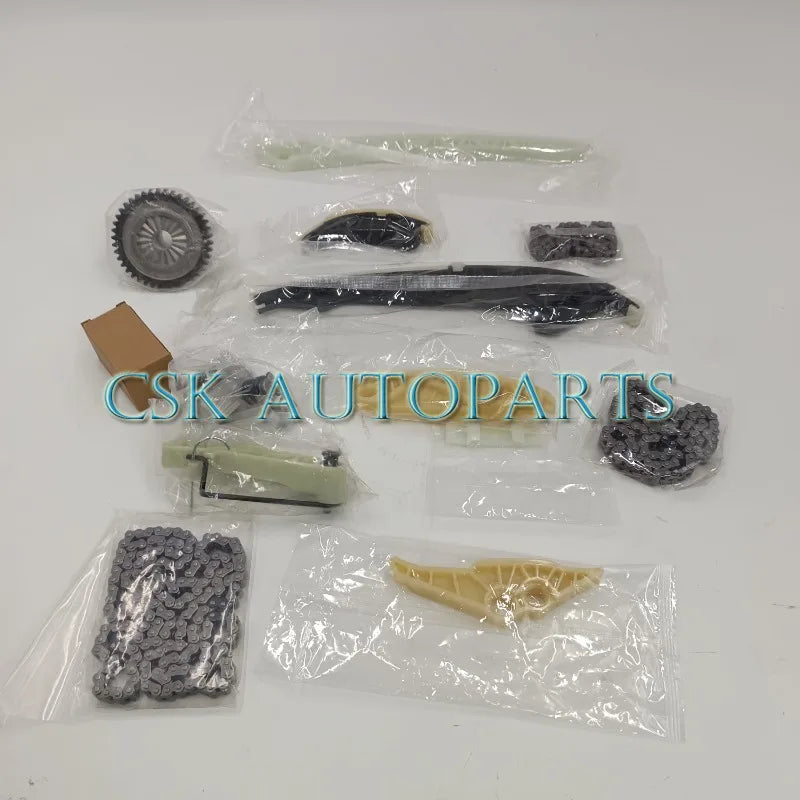

Timing Chain Kit OE#                                Included Parts
   06K 109 467 P / 06H 109 467 AE              Timing Chain Tensioner
06K 109 158 A / 06K 109 158 F                Timing Chain (Long)
06H 109 469 AQ / 06H 109 469 AH            Timing Chain (Short)
06H 109 469 AP / 06H 109 469 T              Timing Gear
06H 109 509 P / 06H 109 509 Q               Timing Guide Set
06K 109 507 N / 06H 105 209 AQ             Oil Pump Chain
       06H 115 225 L                                            Oil Pump Chain Tensioner

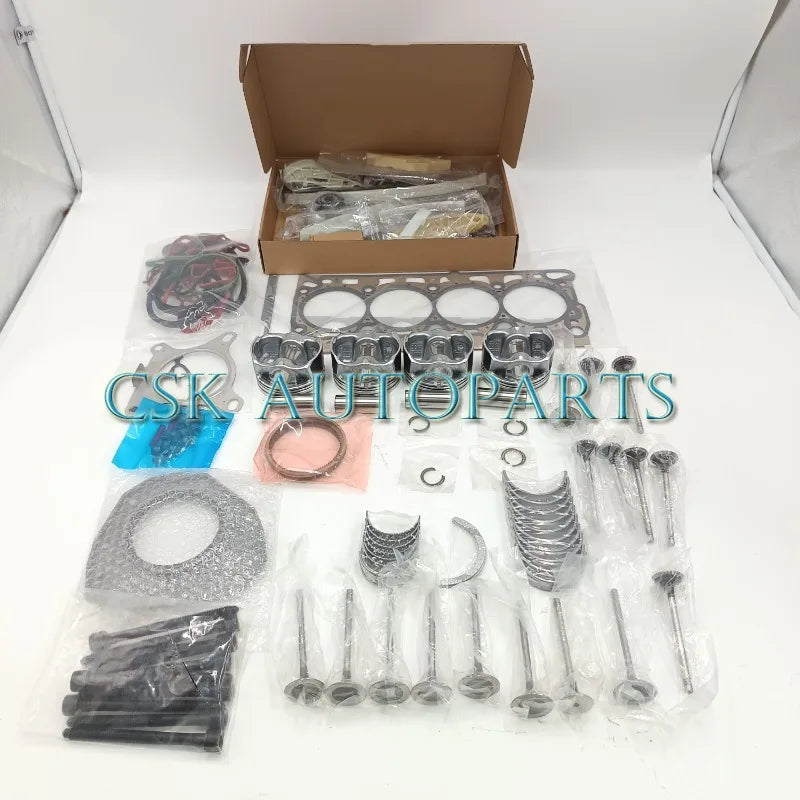

Package includes

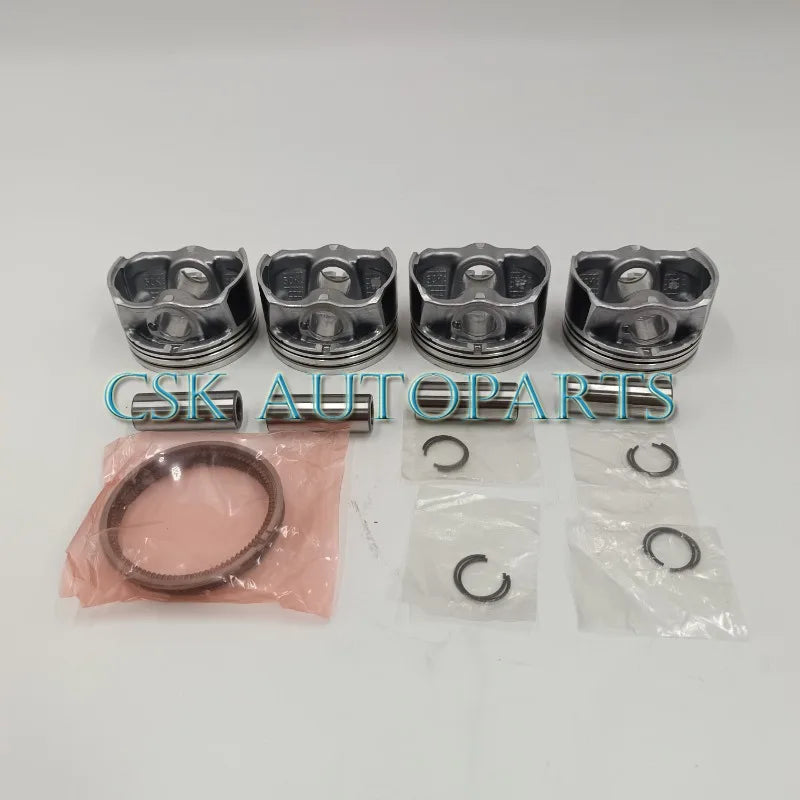

Piston & Ring        x4

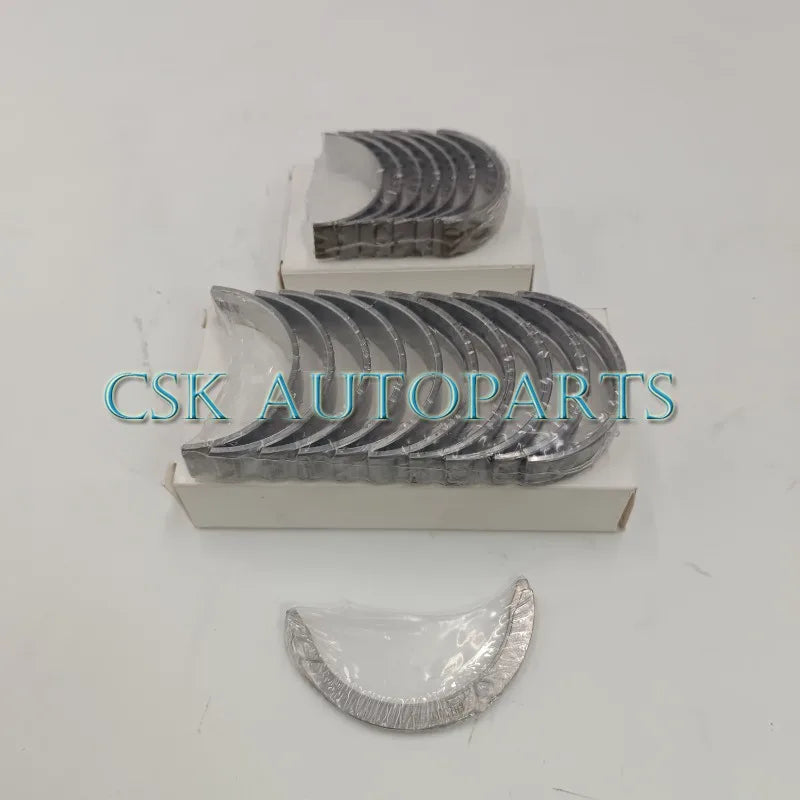

Bearing Shell        x1 set

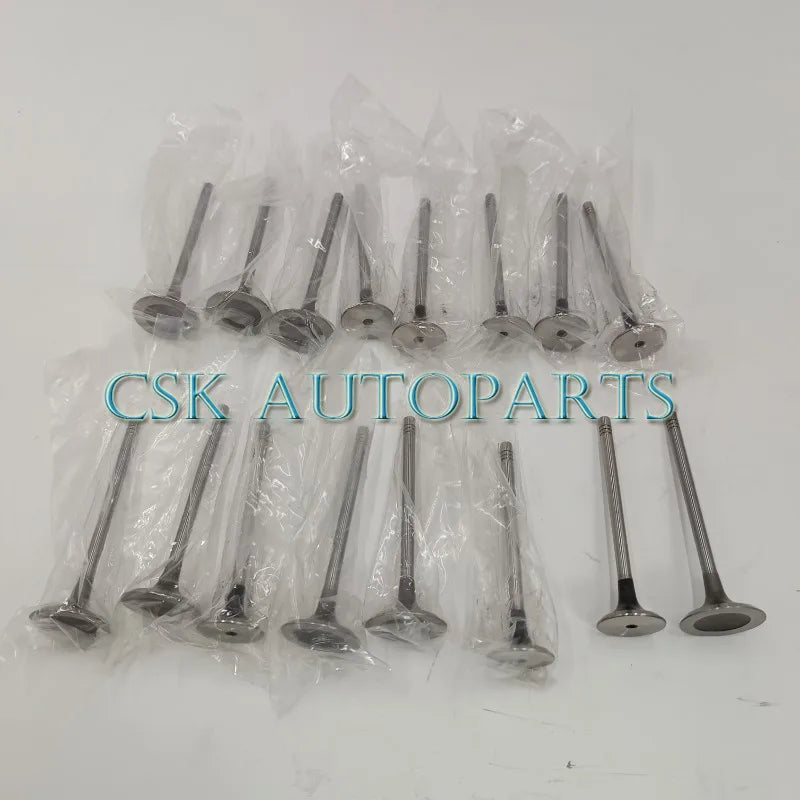

 16pcs valves         x1 set
Repair Kit              x1 set
 Timing Kit              x1 set
Head Bolt              x10 pcs

Fit Car Model
Brand & Model                 Produce Year          Fit Engine
AUDI         Piston pin bolt Φ23mm
A1    2015-2018    2.0 TFSI CWZA
A3 (8V)    2014-2016    2.0 TFSI CHHB CNTC
A4 (B8)    2013-2015    2.0 TFSI CNCD
A4 Allroad Quattro    2013-2016    2.0 TFSI CNCD
A5 / A5 Quattro    2013-2017    2.0 TFSI CNCD CNCE
A6 / A6 Quattro    2015-2018    2.0 TFSI
Q5    2013-2017    2.0 TFSI CNCB CNCD CNCE
TT / TT Quattro    2015-2018    2.0 TFSI CHHC CNTC



VOLKSWAGEN
Piston pin bolt Φ23mm
Golf GTI (MK7)    2014-2018    2.0 TSI CHHA CHHB CNTA



SKODA
Piston pin bolt Φ23mm
Octavia 2.0 RS    2013-2018    2.0 TSI CHHA CHHB
