Engine Overhaul Oversize Rebuilding Kit For VW AUDI 1.8 TSI TFSI
CDA CDH EA888 Gen2


Confirm your cylinder bore is 83.01mm ( +0.50mm) / piston pin wrist Φ23mm

Completely solve oil consumption issue

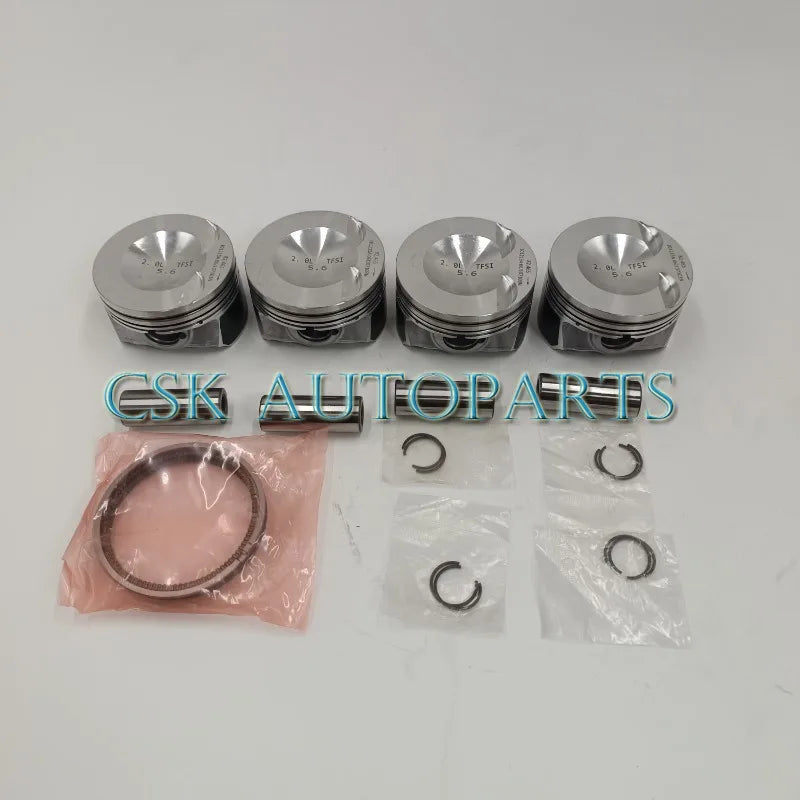

Pistons & Rings OE#
06H 107 065 BK / BF / BS / CP / DF / DL
06H 107 065 F / T
N 911 766 01 ( Φ23mm)
06H 198 151 B / C / F / J
Pistons & Rings Spec
- Oversize +0.50 spec
- Cylinder bore  Φ 83.01mm
-  Piston Diameter  Φ 82.975mm
- Pin Diameter  Φ 23mm
- Ring thickness 1.2mm / 1.2mm / 2.0mm

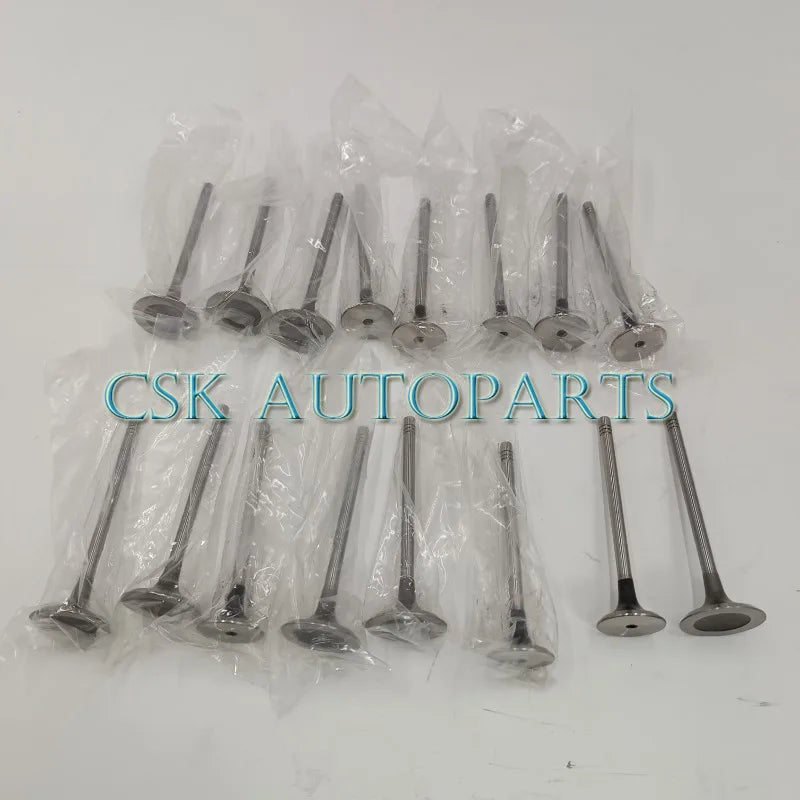

Valves OE#
06D 109 601 M
06D 109 611 H / L / T

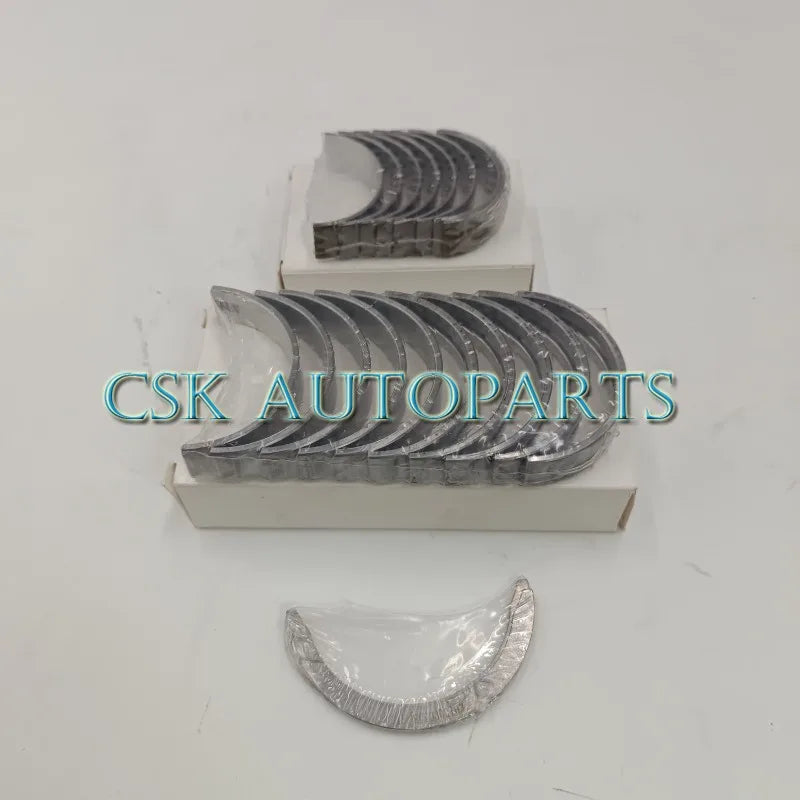

Bearing Shell OE#
06H 105 561 K
06H 105 591 K
06H 105 701 C / D GLB

Seals & Gasket Kit OE#
06J 103 383 D /    06H 103 483 C
06H 103 483 D /   06H 103 484 A
06F 129 717 D /   06F 253 039 F
1K0 253 115 AB / 06J 117 070 C
06J 115 441 A /    06J 121 119
06H 103 121 J /    06H 103 171 F
06H 103 085 G /   036 109 675 A

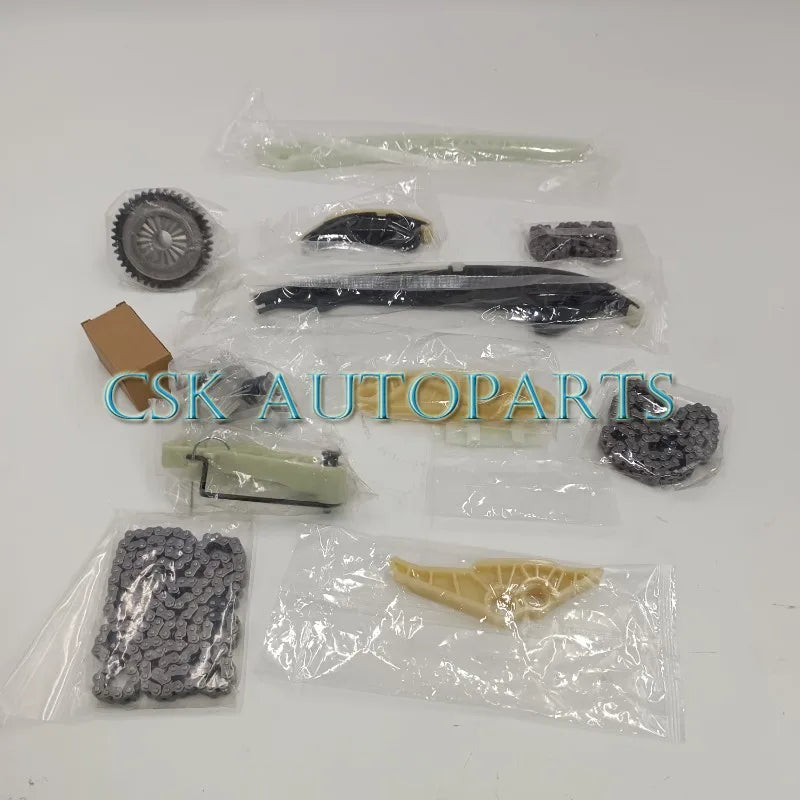

Timing Chain Kit OE#
06H 109 467 N / 06H 109 467 AE
06H 109 158 H / 06H 109 158 J
06H 109 469 AQ / 06H 109 469 AH
06H 109 469 AP / 06H 109 469 T
06H 109 509 P / 06H 109 509 Q
06H 109 507 N / 06H 105 209 AQ
06H 115 225 L

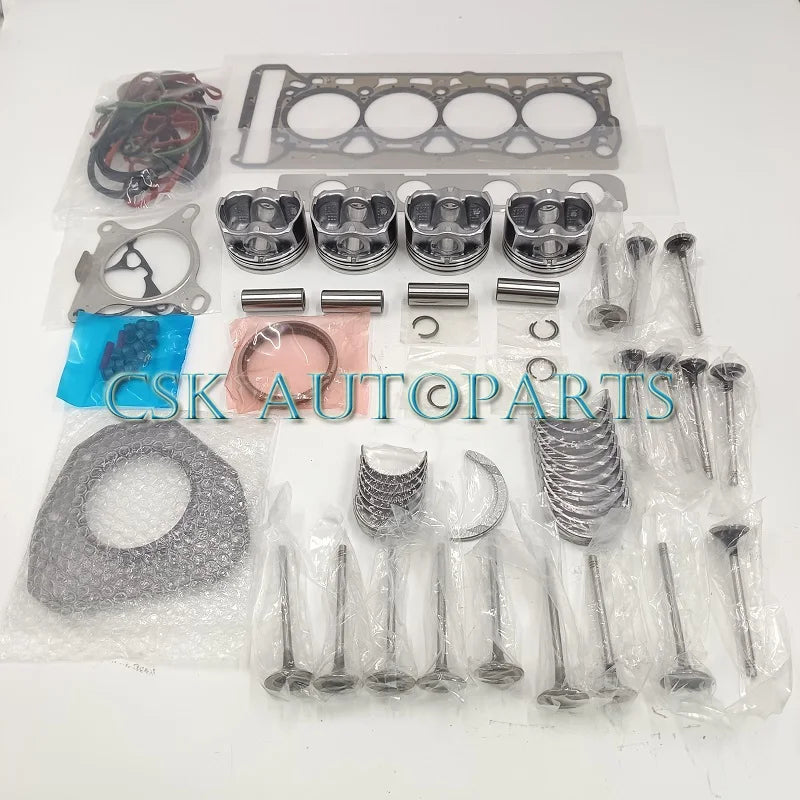

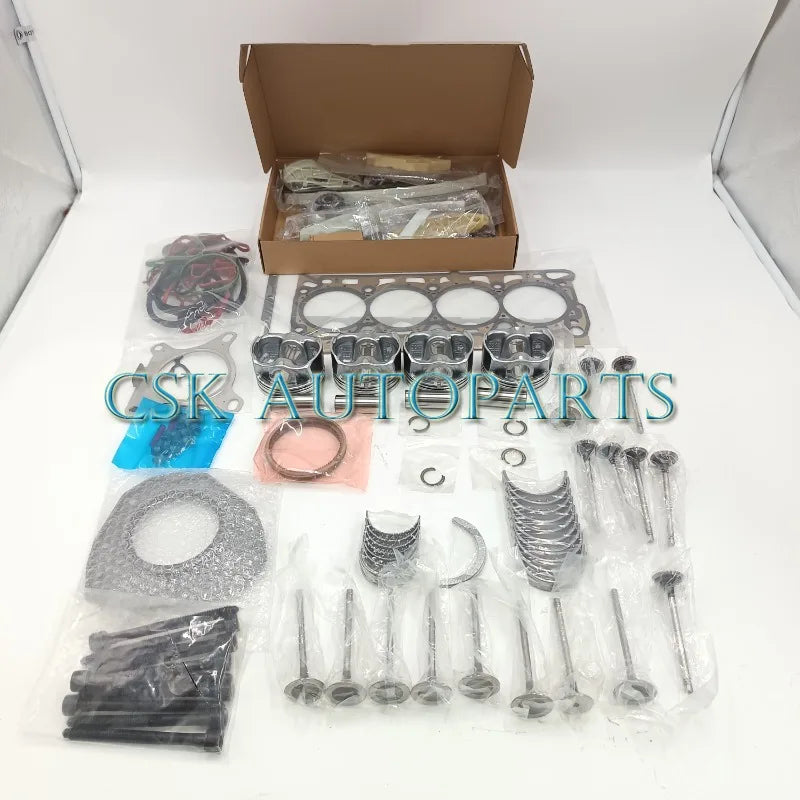

Package includes
Piston & Ring      x1 set
Bearing Shell       x1 set
Valves                x1 set
Seals Kit             x1 set
Timing Kit           x1 set
Head Bolt           x1 set



Fit Car Model


Brand & Model                 Produce Year          Fit Engine
Audi         Cylinder bore 83.01mm / Piston pin Φ23mm
A3    31.05.2011-2013      1.8 TFSI CDAA
A4    31.05.2011-2015    1.8 TFSI CDHA CDHB
A5    31.05.2011-2013    1.8 TFSI CDHB
TT    31.05.2011-2014    1.8 TFSI CDAA



Volkswagen         Cylinder bore 83.01mm / Piston pin Φ23mm
CC    2012-2017    1.8 TSI CDAA CDAB
Passat (E.U)    2012-2015    1.8 TSI CDAA CDAB
Sharan    2012-2015    1.8 TSI CDAA



Skoda         Cylinder bore 83.01mm / Piston pin Φ23mm
Octavia    18.05.2011-2013    1.8 TSI CDAA CDAB
Superb    18.05.2011-2015    1.8 TSI CDAA CDAB
