Pistons Rings Timing Chain Tensioner Crankshaft Connecting Rod Bearing Shell Oil Seals Gasktets
Engine Overhaul Reconstruction Kit For VW Golf Scirocco R Audi S3 TTS Seat Leon Cupra R 2.0 TSI TFSI
CDLA CDLC CDLF CDLG CDLH CDLK CDMA CRZA BHZ BZC BWJ


Please confirm your original piston pin wrist ( Φ21mm or  Φ22mm )

Or you can send VIN number we can check it

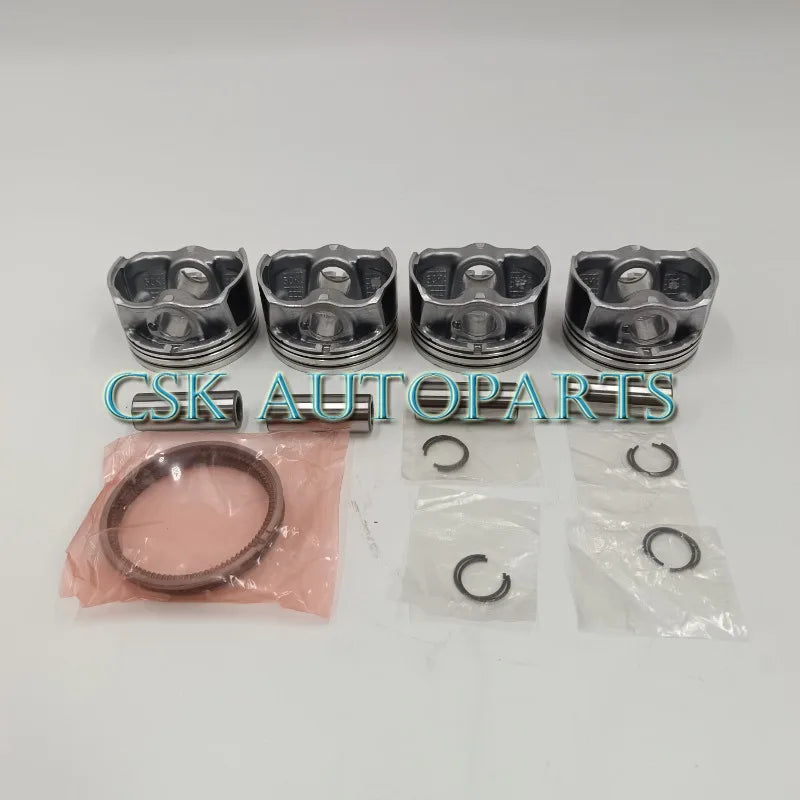

Pistons & Rings OE#
06D 107 066 L / K / S / R
N 905 583 01  ( Φ21mm)
N 012 278 1  ( Φ22mm)
06J 198 151 B

Pistons & Rings Spec
STD 0.00 spec
Piston Diameter Φ82.5mm
Pin bolt Diameter Φ21mm / Φ22mm
Ring Thickness 1.2mm / 1.5mm / 2.0mm

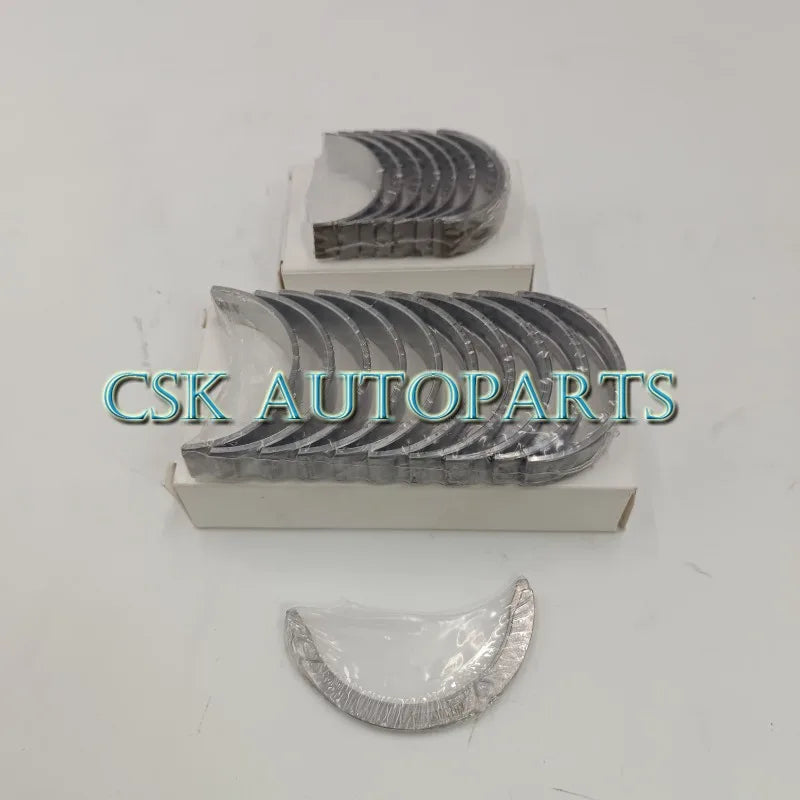

Bearing Shell OE#
06B 105 561
06B 105 591
06D 105 701 L GLB

Seals & Gasket Kit OE#
06F 103 483 D
06F 103 383 G / H / J
06A 103 171 A
8E0 253 115 D

Timing Chain Kit OE#
06F 121 011 X
06F 198 119 A
06D 109 243 B
06D 109 119 B
06F 198 119 B
06D 109 243 C
06F 109 217 A
06D 109 229 B

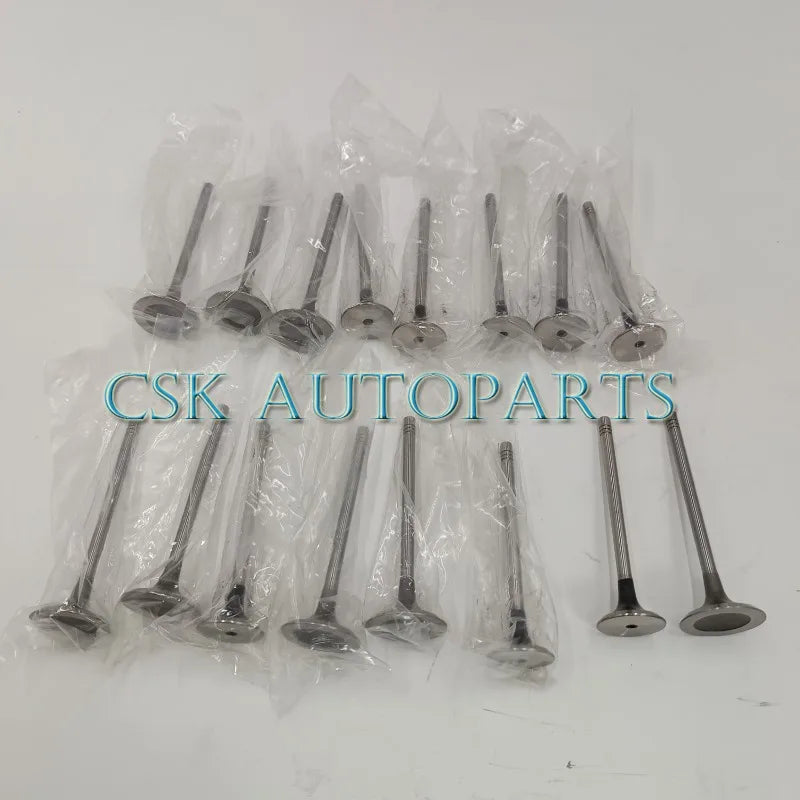

Inlet and exhaust valves Kit OE
06D 109 601 M
06D 109 611 H

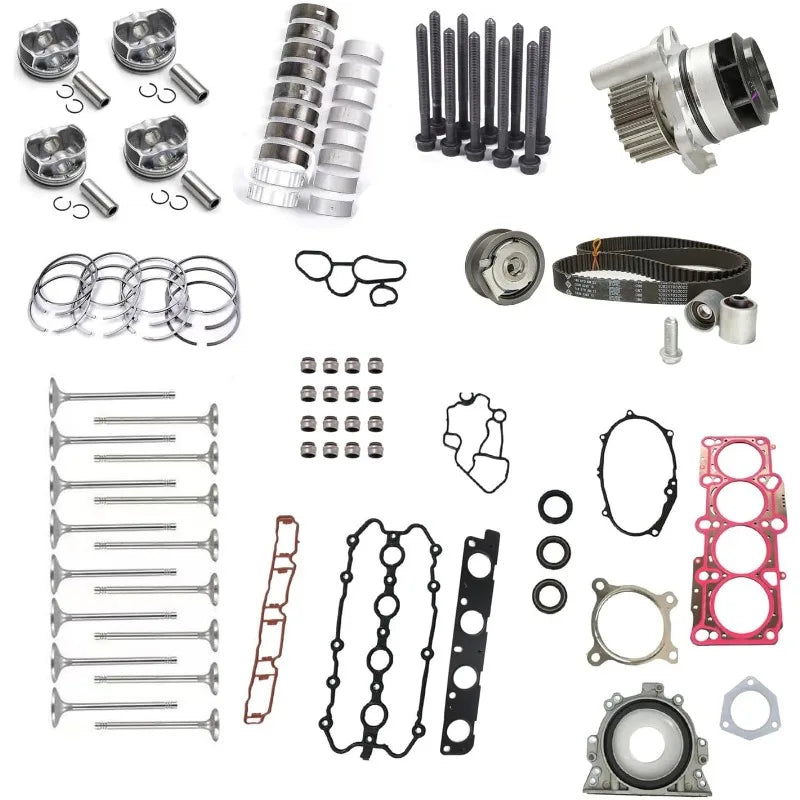

Package includes
Piston & Ring        x1 set
Bearing Shell        x1 set
Gasket Kit             x1 set
Timing Kit              x1 set
Valves                   x1 set

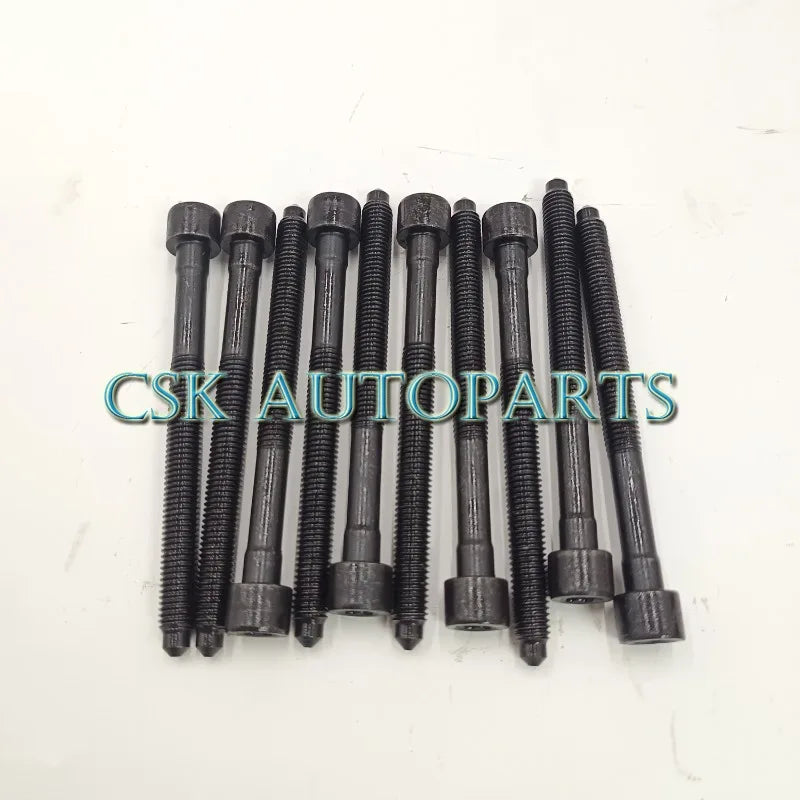

Head Bolt              x10 pcs

Fit Car Model


Brand & Model                 Produce Year          Fit Engine
Audi         Please confirm your original piston wrist diameter ( Φ21mm or Φ22mm)
S3 Quattro    2007-2008    2.0 TFSI BHZ 195kw (265ps) / BZC 188kw (256ps)
S3 Quattro    2008-2013    2.0 TFSI CDLA 195kw (265ps) / CDLC CDLH 188kw (256ps)
TTS Quattro    2008-2014    2.0 TFSI CDMA CDLA 195kw (265ps) / CDLB 200kw (272ps)



Volkswagen
Please confirm your original piston wrist diameter ( Φ21mm or Φ22mm)
Golf 2.0 R (MK6)    2010-2013    2.0 TSI CDLG 173kw (235ps) / CDLC CRZA 188kw (256ps)  / CDLF 199kw (271ps)
Golf R Cabriolet (MK6)       2013-2016    2.0 TSI CDLA 195kw (265ps) / CDLC 188kw (256ps)
Polo R    2013-2014    2.0 TSI CDLJ 162kw (220ps)
Scirocco 2.0 R    2010-2018    2.0 TSI CDLC 188kw (256ps) / CDLA 195kw (265ps) / CDLK 206kw (280ps)



Seat
Please confirm your original piston wrist diameter ( Φ21mm or Φ22mm)
Leon / Cupra R    2007-2009    2.0 TSI BWJ 177kw (241ps)
Leon / Cupra R    2010-2013    2.0 TSI CDLA 195kw (265ps) / CDLD 177kw (241ps)
