Pistons Rings Timing Chain Tensioner Crankshaft Connecting Rod Bearing Shell Oil Seals Gasktets
Engine Overhaul Reconstruction Kit  For VW AUDI SEAT SKODA 1.8 TSI CDAA CDAB CDHA CDHB
Please confirm your original piston pin bolt is Φ21mm
if you need  Φ23mm piston pin bolt please contact me b efore buying

Please read carefully the "Fit Car Model" in the following


Pistons & Rings OE#                         Pistons & Rings Replacement OE#
06H 107 065 BK                                 06H 107 065 BF / BS / CP
N 905 583 01 ( Φ21mm)                      06H 107 065 T / F
06H 198 151 B                                    06H 198 151 C / J
                                                            06J 198 151 B/C

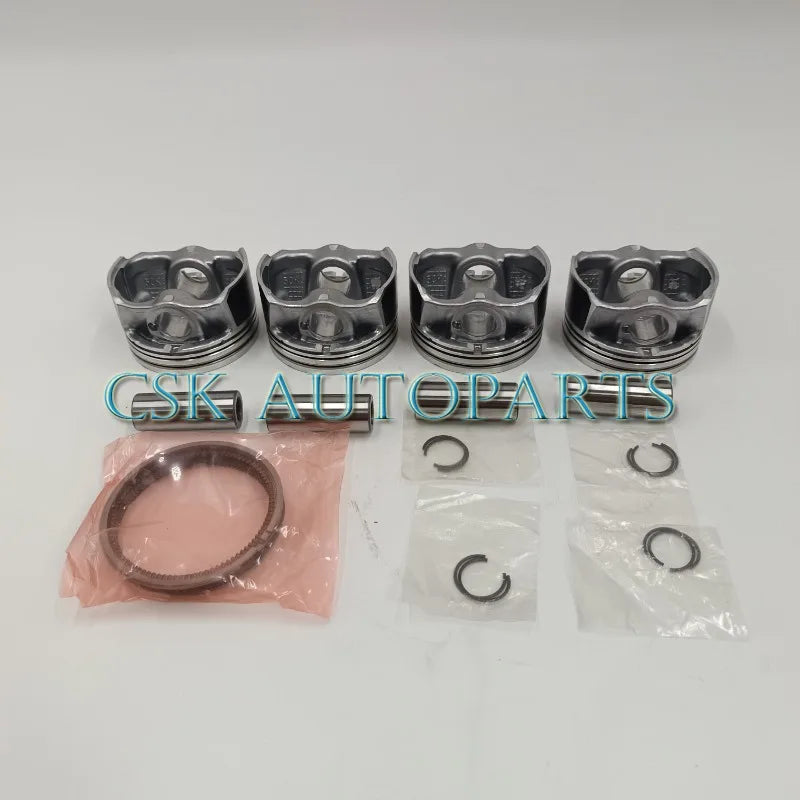

Pistons & Rings Spec
STD 0.00 spec (no fit cylinder expand)
Piston Diameter 82.5mm （3.25" / 3.25in.）
Pin bolt Diameter  Φ 21mm
Ring Thickness 82.5x1.2, 82.5x1.5 , 82.5x2.0
Buckle Size 21x1.5mm

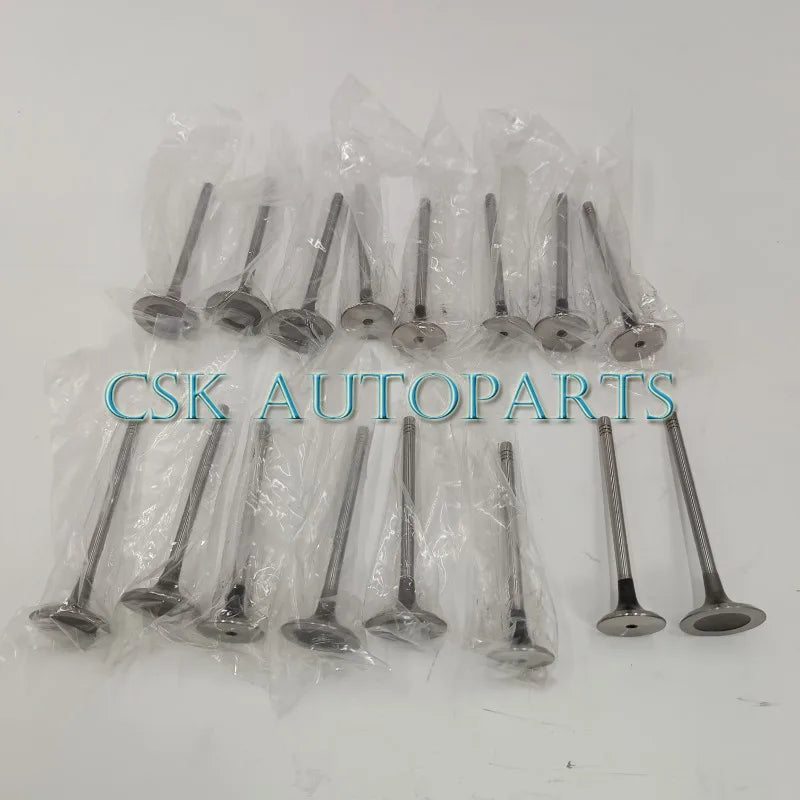

Valves OE#                                        Replacement OE#
06D 109 601 M                                  06D 109 611 L / T
06D 109 611 H

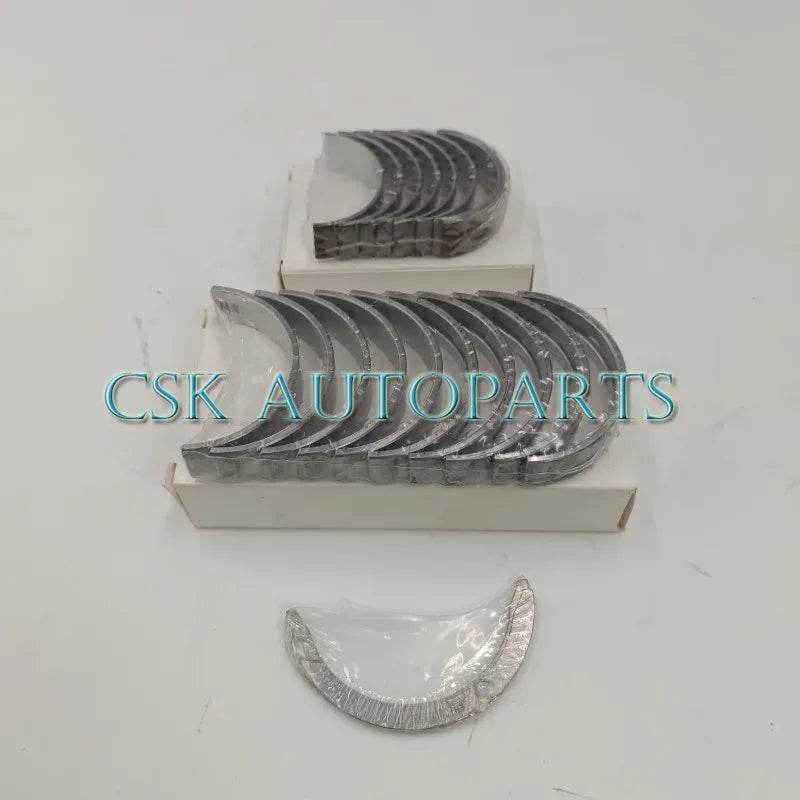

Bearing Shell OE#                             Bearing Shell Replacement OE#
06H 105 561 K                                   06H 105 561 C / M
06H 105 591 K                                    06H 105 591 C / M
06H 105 701 D GLB                           06H 105 701 C GLB

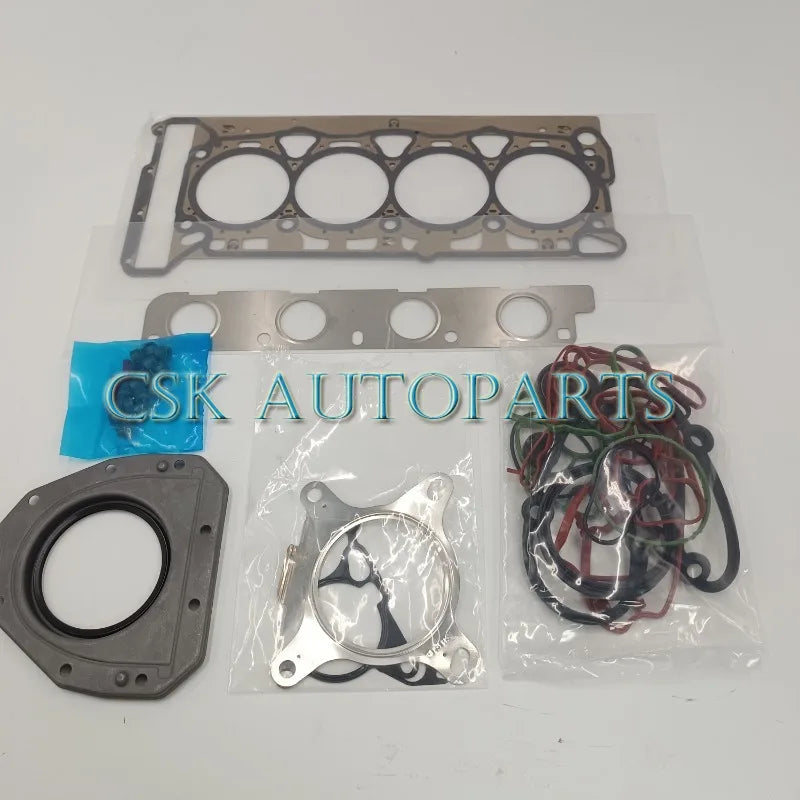

Seals & Gasket Kit OE#                           Included Parts
06J 103 383 D /    06H 103 483 C             Valve oil seal
06H 103 483 D /   06H 103 484 A             Cylinder Head Gasket
06F 129 717 D /   06F 253 039 F              Crankshaft oil seal
1K0 253 115 AB / 06J 117 070 C              Camshaft oil seal
06J 115 441 A /    06J 121 119                 Intake &  Exhaust manifold Gasket
06H 103 121 J /    06H 103 171 F             Valve Cover Gasket
06H 103 085 G /   036 109 675 A

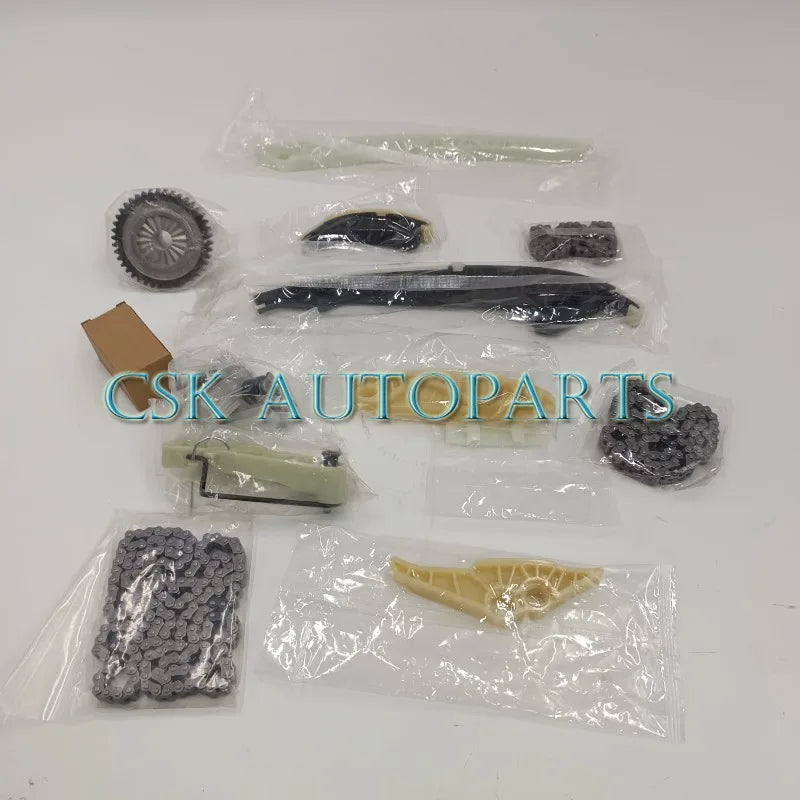

Timing Chain Kit OE#                                Included Parts
06H 109 467 N / 06H 109 467 AE              Timing Chain Tensioner
06H 109 158 H / 06H 109 158 J                 Timing Chain (Long)
06H 109 469 AQ / 06H 109 469 AH            Timing Chain (Short)
06H 109 469 AP / 06H 109 469 T               Timing Gear
06H 109 509 P / 06H 109 509 Q                 Timing Guide Set
06H 109 507 N / 06H 105 209 AQ              Oil Pump Chain
06H 115 225 L                                               Oil Pump Chain Tensioner

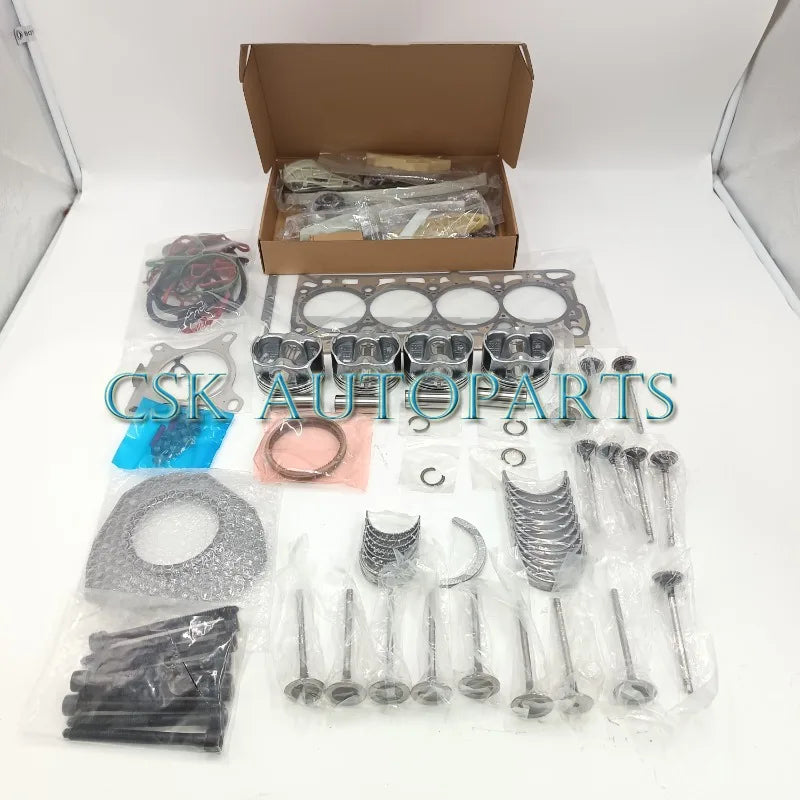

Package includes
Piston & Ring        x4      (MAHLE)
Bearing Shell        x1 set (MAHLE)
Thrust washer       x1 set
16pcs valves         x1 set
Repair Kit              x1 set
13pcs timing Kit    x1 set
Head Bolt              x10 pcs



Fit Car Model


Brand & Model                 Produce Year          Fit Engine
AUDI
Piston pin bolt Φ21mm
A3    2008-30.5.2011    1.8 TFSI CDAA
A3    2007-2008    1.8 TFSI BYT (contact me replace bearing shell)
A4    2009-30.5.2011    1.8 TFSI CDHA CDHB
A5    2008-30.5.2011    1.8 TFSI CDHB 118kw (160ps)
TT    2008-30.5.2011    1.8 TFSI CDAA 118kw (160ps)



VOLKSWAGEN
Piston pin bolt Φ21mm
Passat    2010-2011    1.8 TSI CDAA CDAB
Passat    2008-2011    1.8 TSI BZB CGYA (contact me replace bearing shell)
Passat CC    2009-31.5.2011    1.8 TSI CDAA CDAB
Passat CC    2008-2010    1.8 TSI BZB CGYA (contact me replace bearing shell)
Golf     2009-2011    1.8 TSI CDAA



SKODA
Piston pin bolt Φ21mm
Octavia    2008-15.5.2011    1.8 TSI CDAA CDAB
Octaiva    2007-2008    1.8 TSI BZB  (contact me replace bearing shell)
Superb    2008-15.5.2011    1.8 TSI CDAA CDAB
Superb    2008-2009    1.8 TSI BZB  (contact me replace bearing shell)
