Engine Rebuilding Seals Bearings Valves Kit
For BMW 220i 320i 420i 520i X1 X3 F22 F23 F30 F10 F25 E84 E89
2.0T 2.0 Turbocharge N20B20 N26B20
Engine Compression ratio 11：1

Send VIN number before order


Pistons & Rings OE#
11 25 8 606 461
11 25 7 594 453
11 25 7 640 168
11 25 7 618 814
Pistons & Rings Spec
- STD 0.00 spec (no fit cylinder expand)
- Cylinder bore 84.00mm
- Engine Compression ratio 11:1
- Bolt Diameter Φ 22mm
- Ring Thickness 1.2mm / 1.5mm / 2.0mm

Bearing Shell OE#
11 24 7 576 714
11 24 7 576 715
11 24 7 628 035
11 24 7 628 034
11 21 7 598 967
11 21 8 642 946
11 21 7 598 959
11 21 7 598 963
11 21 7 598 968
11 21 7 598 969
11 21 8 642 945
11 21 8 642 944
11 21 7 598 960
11 21 7 598 961
11 21 7 598 964
11 21 7 598 965

Seals & Gasket Kit OE#
11 12 7 620 697
11 12 8 676 519
11 12 7 588 418
11 34 0 038 719
11 13 7 627 512
11 12 2 212 157

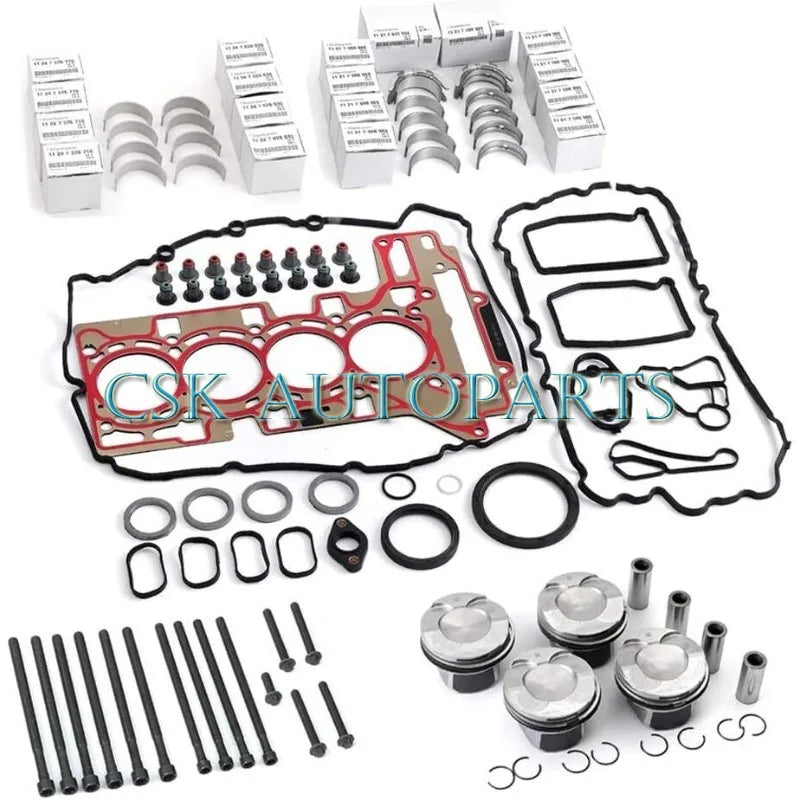

Package includes

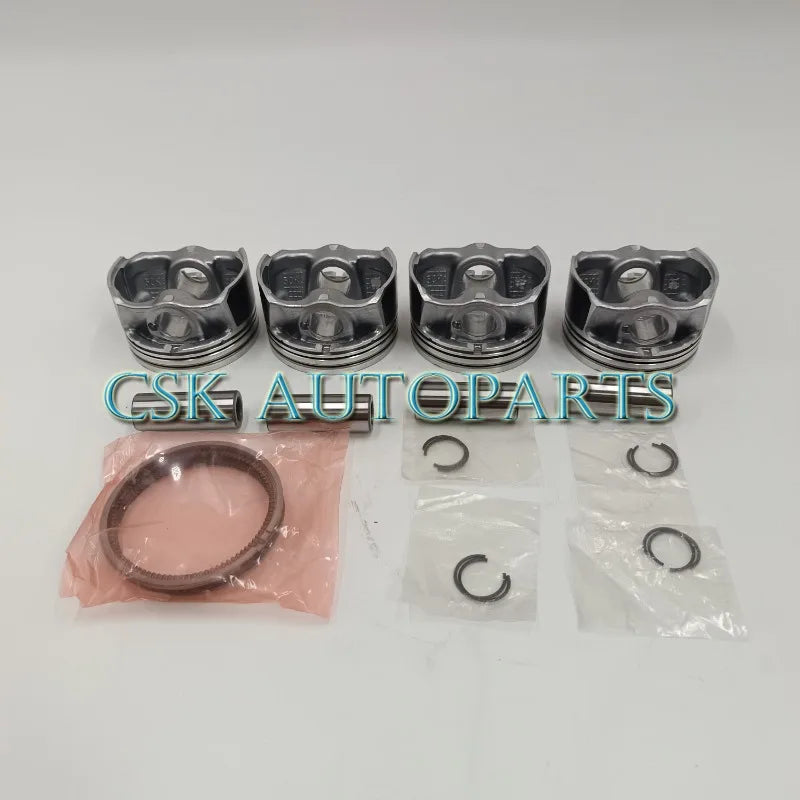

Pistons & rings x1set
Overhaul gakset x1set

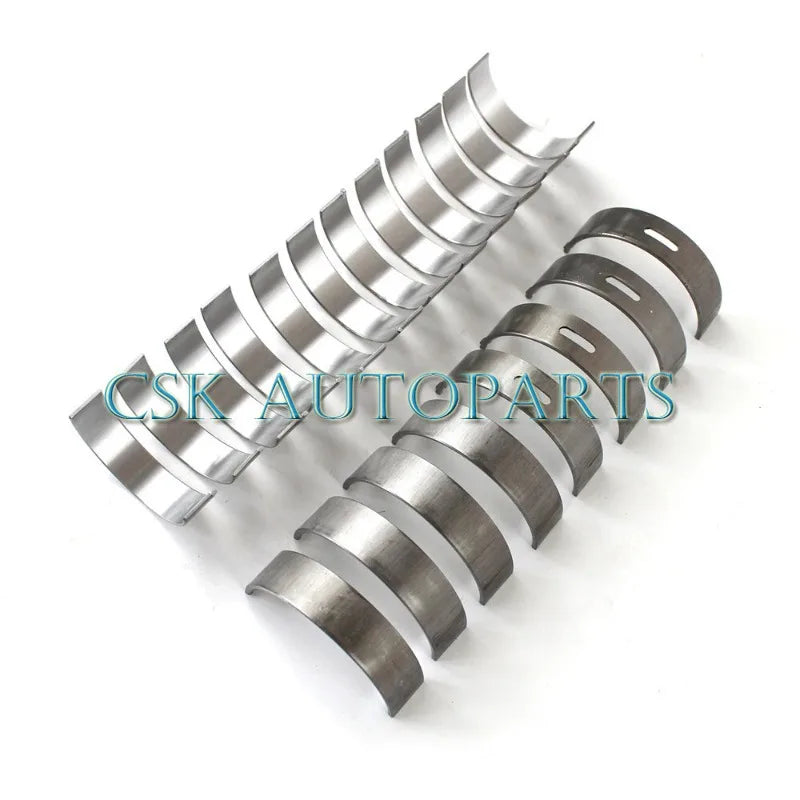

Main & Con rod bearing x1set
Oil pump chain kit  x 1 set
Camshaft Control Valve X 2pcs

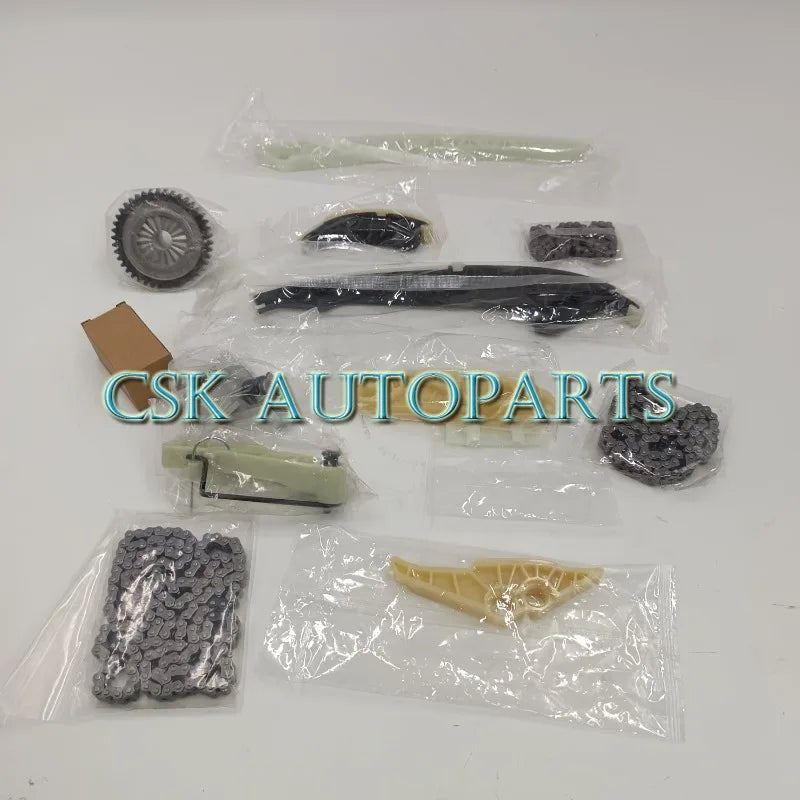

Timing kit  x 1set

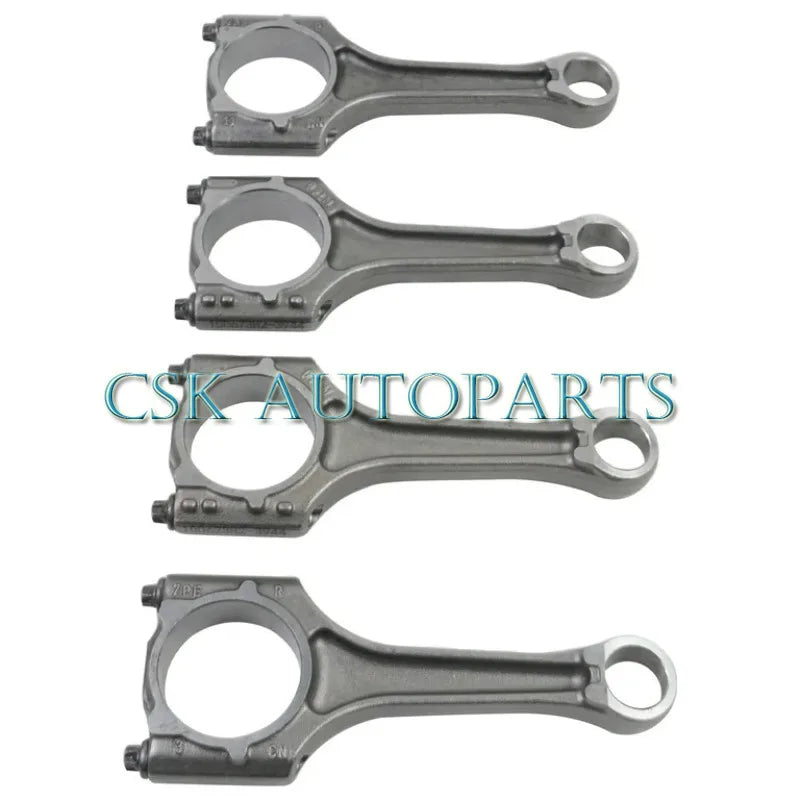

Con rod   x4 PCS
Valves   x 16pcs
cam adjuster   x 2 PCS

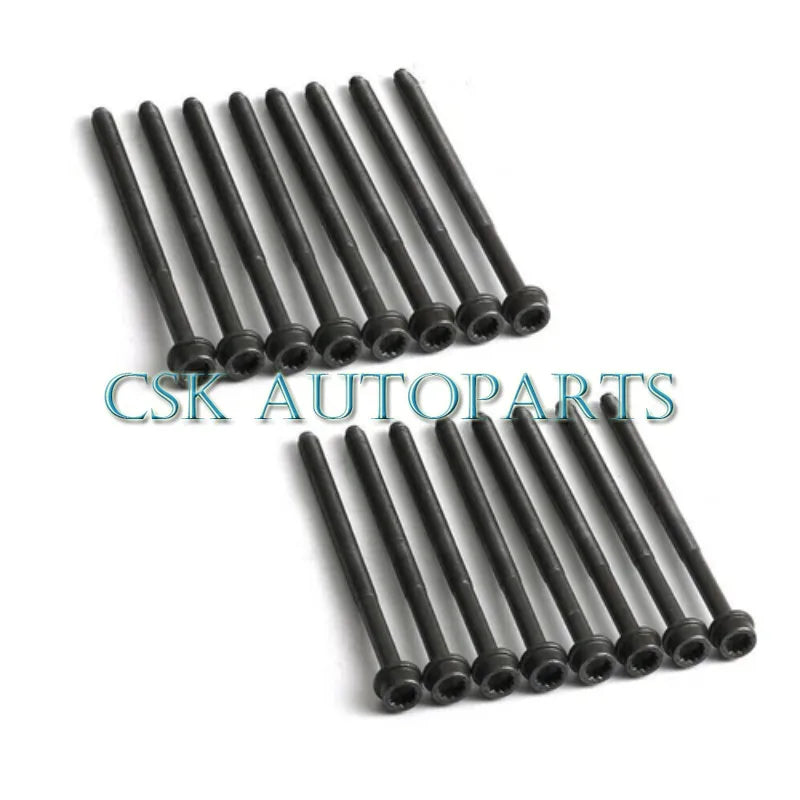

Head bolt x1set


Fit Car Model

Brand & Model    Produce Year    Fit Engine
BMW         N20 N26 / Compression ratio 11:1
220i    2012-2016    F22 F23
320i / 320ix    2011-2017    F30 F31
320i / 320ix    2012-2016    F34
420i / 420ix    2013-2016    F32 F33 F36
520i / 520ix    2011-2017    F10 F11
X1 16i    2012-2015    E84
X3 18i    2013-2017    F25
