Engine Overhaul Repair Rebuilding Kit Pistons Rings Timing Chain Tensioner
Crankshaft Connecting Rod Bearing Shell Oil Seals Gasktets For
VW Golf GTI AUDI A3 A4 A5 Q5 TT 2.0 TFSI TSI EA888 Gen2
CAW CBF CCT CCZ CAE CDN CPM

Confirm your cylinder bore is 83.01mm ( +0.50mm) / piston pin wrist Φ23mm
Completely solve oil consumption issue


Pistons & Rings OE#
06L 107 065 E / K / P / AG / AR / BR
06K 107 065 D / F / K / T / AB / AD / AR / BL / CG
06H 107 065 BH / CM / DD / DG / DJ / DN / DM
N 911 766 01 (Φ23mm)
06H 198 151 B / C / F / J

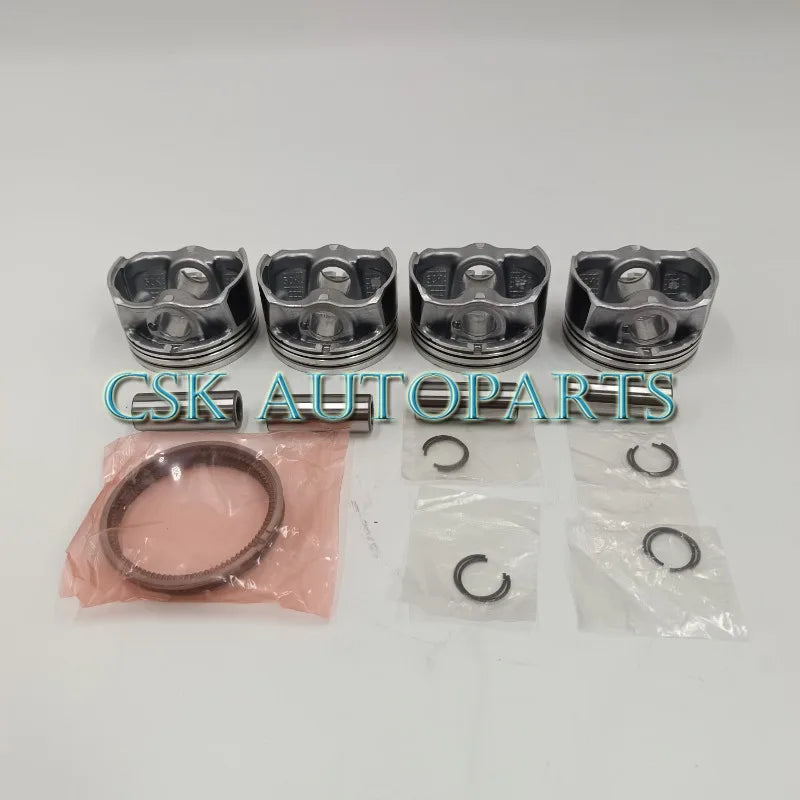

Pistons & Rings Spec
- Oversize +0.50 spec
- Cylinder bore Φ83.01mm
- Piston Diameter Φ82.975mm
- Pin Diameter Φ23mm
- Ring thickness 1.2mm / 1.2mm / 2.0mm

Valves OE#
06D 109 601 M
06D 109 611 H / L / T

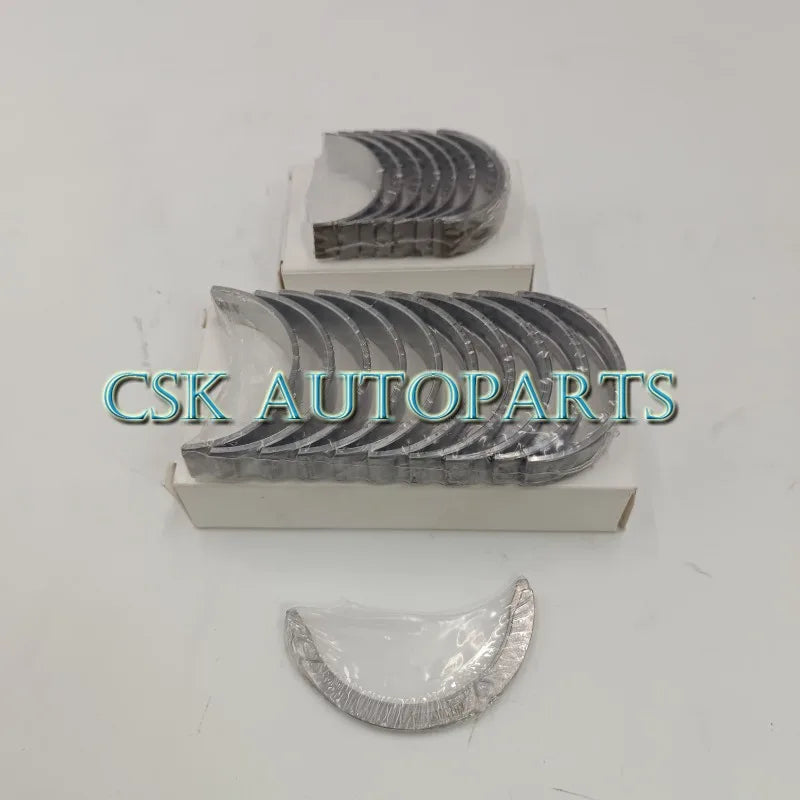

Bearing Shell OE#
06H 105 561 A / L
06H 105 591 A / L
06H 105 701 C / D GLB

Seals & Gasket Kit OE#
06J 103 383 D /    06H 103 483 C
06H 103 483 D /   06H 103 484 A
06F 129 717 D /   06F 253 039 F
1K0 253 115 AB / 06J 117 070 C
06J 115 441 A /    06J 121 119
06H 103 121 J /    06H 103 171 F
06H 103 085 G /   036 109 675 A

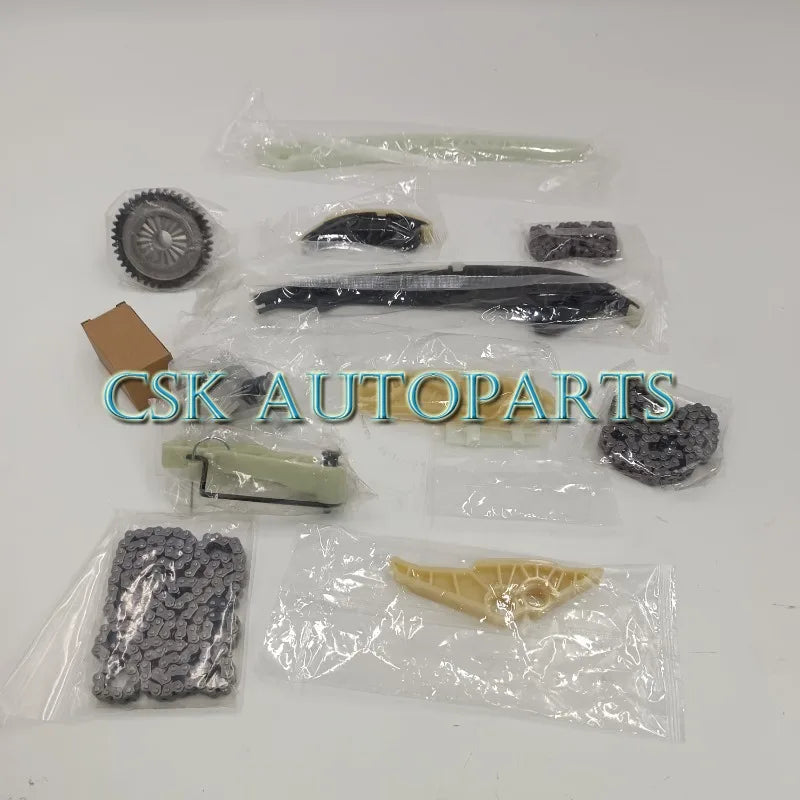

Timing Chain Kit OE#
06H 109 467 N / 06H 109 467 AE
06H 109 158 H / 06H 109 158 J
06H 109 469 AQ / 06H 109 469 AH
06H 109 469 AP / 06H 109 469 T
06H 109 509 P / 06H 109 509 Q
06H 109 507 N / 06H 105 209 AQ
06H 115 225 L

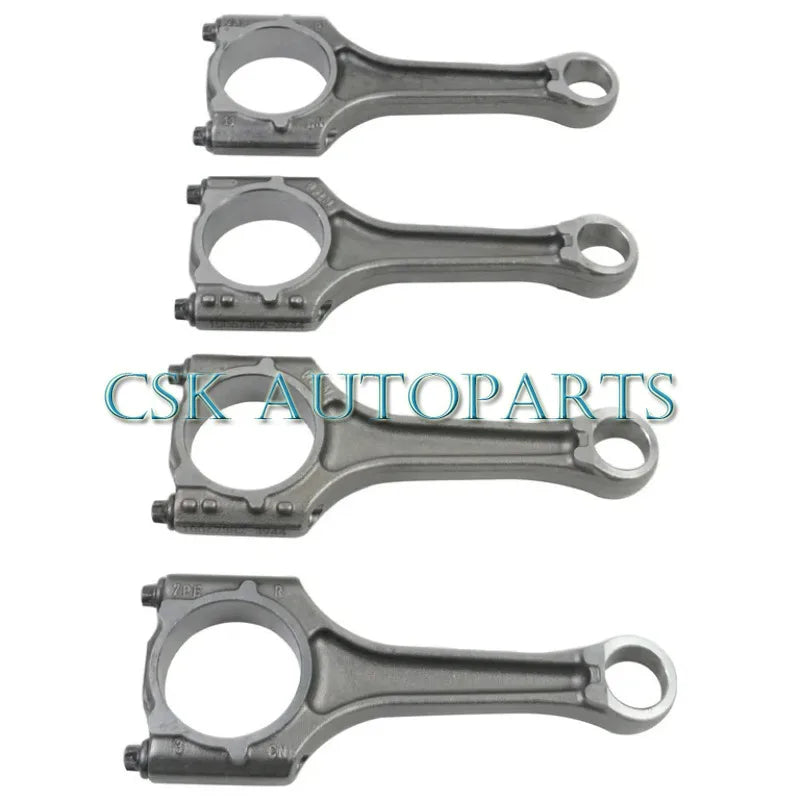

Connecting rod OE#
06H 198 401 D

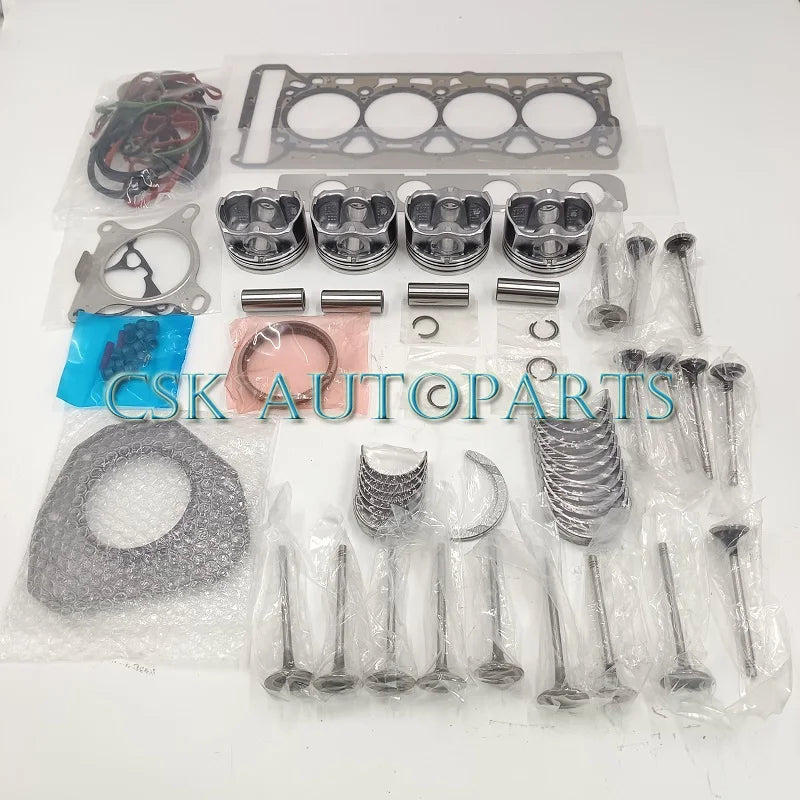

Package includes
Piston & Ring            x1 set
Bearing Shell                    x1 set
Valves                    x1 set
Seals Kit                 x1 set
         Timing Kit               x1 set
Connecting rod               x 1 set

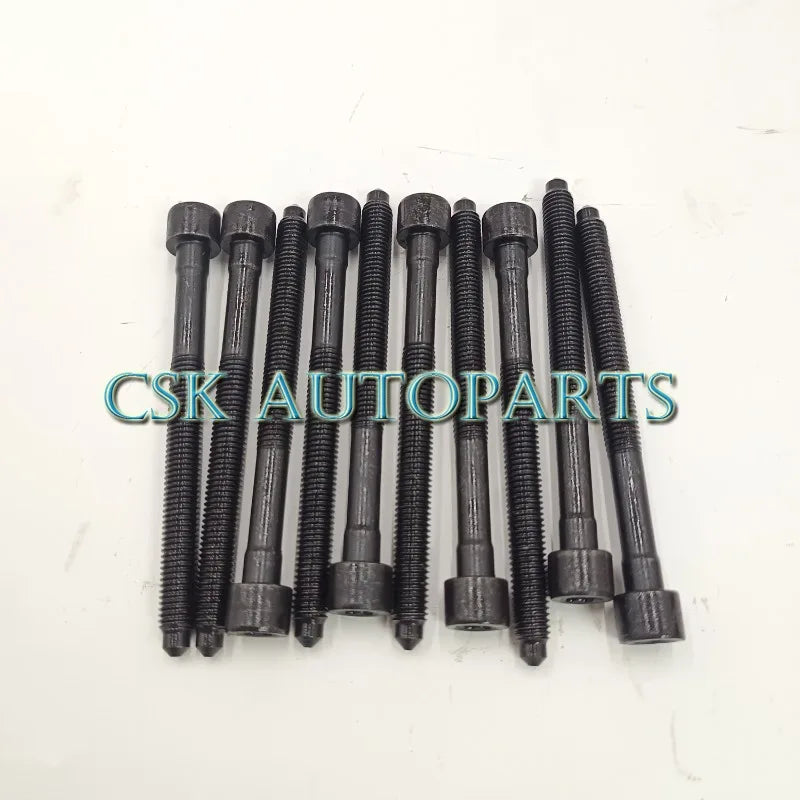

Head Bolt               x1 set


Fit Car Model


Brand & Model                 Produce Year                 Fit Engine
Audi         Cylinder bore 83.01mm / Piston pin Φ23mm
A3 / A3 Quattro    01.06.2011-2013    2.0 TFSI CAWB CBFA CCTA CCZA
A4 / A4 Quattro    01.06.2011-2015    2.0 TFSI CAEA CAEB CDNB CDNC CFKA CPMA CPMB
A4 Allroad Quattro    01.06.2011-2015    2.0 TFSI CDNC CPMA CPMB
A5 / A5 Quattro    01.06.2011-2015    2.0 TFSI CAEB CAED CDNB CDNC CPMA CPMB
A6    2012-2014    2.0 TFSI CAEB CAED CDNB CHJA
Q5    01.06.2011-2015    2.0 TFSI CAEB CDNB CDNC
TT / TT Quattro    2011-2014    2.0 TFSI CESA CETA 155kw (211ps)

Volkswagen         Cylinder bore 83.01mm / Piston pin Φ23mm
EOS    01.05.2011-2015    2.0 TSI CCTA CCZA CCZB CBFA
CC    2012-2016    2.0 TSI CAWB CBFA CCTA CCZA CCZB
Golf GTI (MK6)    2012-2013    2.0 TSI CAWB CCTA CBFA CCZB
Passat    2012-2015    2.0 TSI CAWB CCTA CCTB CCZA
Passat CC    01.06.2011-2012    2.0 TSI CAWB CBFA CCTA
Scirocco    01.05.2011-2015    2.0 TSI CAWB CCZB
Tiguan    2012-2016    2.0 TSI / 2.0 TFSI




Skoda         Cylinder bore 83.01mm / Piston pin Φ23mm
Octavia    16.05.2011-2013    2.0 TSI CCZA
Superb    16.05.2011-2013    2.0 TSI CCZA
