Engine Rebuild Overhaul Set Φ96mm
For  Porsche Panamera Cayenne S 4S GTS 9PA 970 92A
4.8L V8  Naturally aspirated M48.01 M48.02 M48.20 M48.40 MCX

Send VIN number before order


Pistons OE#

948 103 048 24
948 103 048 25
948 103 048 27
948 103 048 28
948 103 047 24
948 103 047 25
948 103 047 27
948 103 047 28

Specification
- Size = STD
- Cylinder bore Φ96.00mm
- Wrist Diameter Φ23mm
- Wrist Length  58mm
- Ring thickness 1st 1.2mm / 2nd 1.5mm / 3rd 2.0mm

- Fit M48.01 / M48.02 / M48.20 / M48.40 4.8L V8 (4806cc)  Naturally aspirated
- Fit  MCX.PA / MCX.RA   4.8L V8 (4806cc)  Naturally aspirated

Gasket set OE#
948 104 173 05
948 104 174 05
948 105 935 01
948 105 936 01
943 101 125 02
948 101 910 20
997 101 212 01
996 105 115 52
948 105 938 00
948 110 146 01
948 105 937 02

Bearings OE#
948 103 210 10
948 103 210 11
948 103 210 12
946 103 354 00
946 103 354 01
946 103 354 02
948 101 241 04
948 101 241 05
948 101 241 06
948 101 242 04
948 101 242 05
948 101 242 06

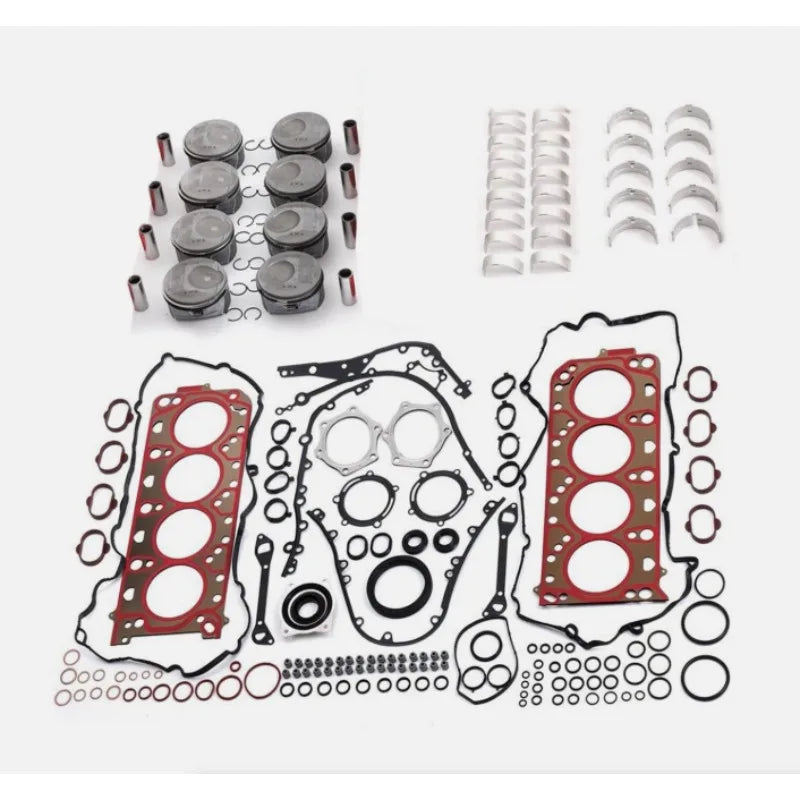

Package includes
Pistons & rings     x 1set
Gasket Kit            x 1set
Main bearings      x 1set
Conrod bearings   x 1set


Fit Car Model


Brand & Model            Produce Year          Fit Model
Porsche
Send Vin number
Cayenne S / GTS      2007-2018    9PA / 92A
Panamera S / 4S / GTS           2010-2016    970
