Product Description

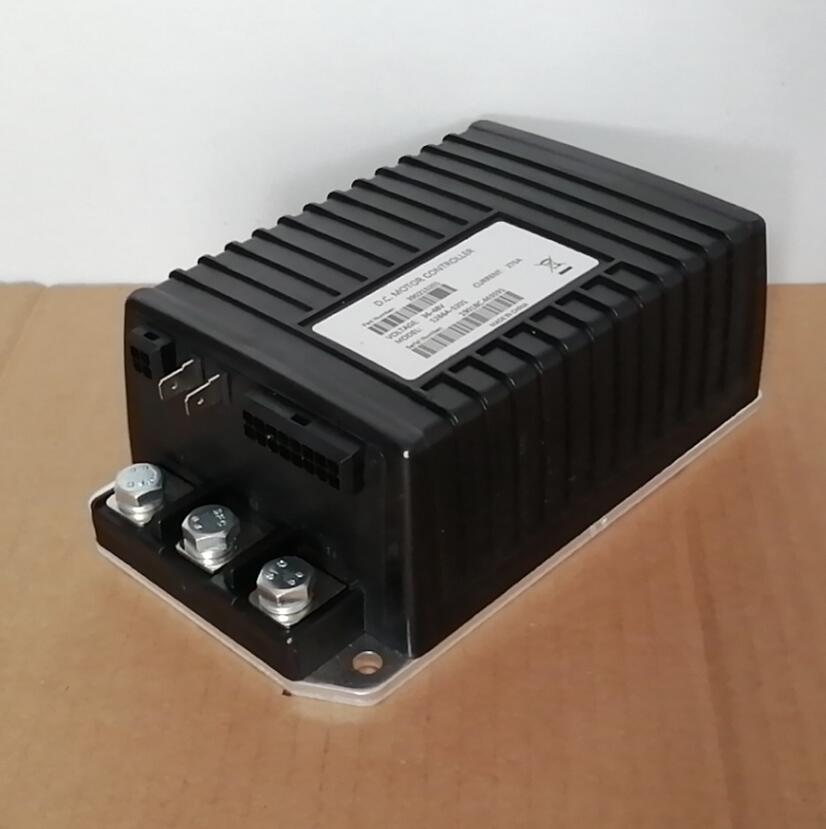

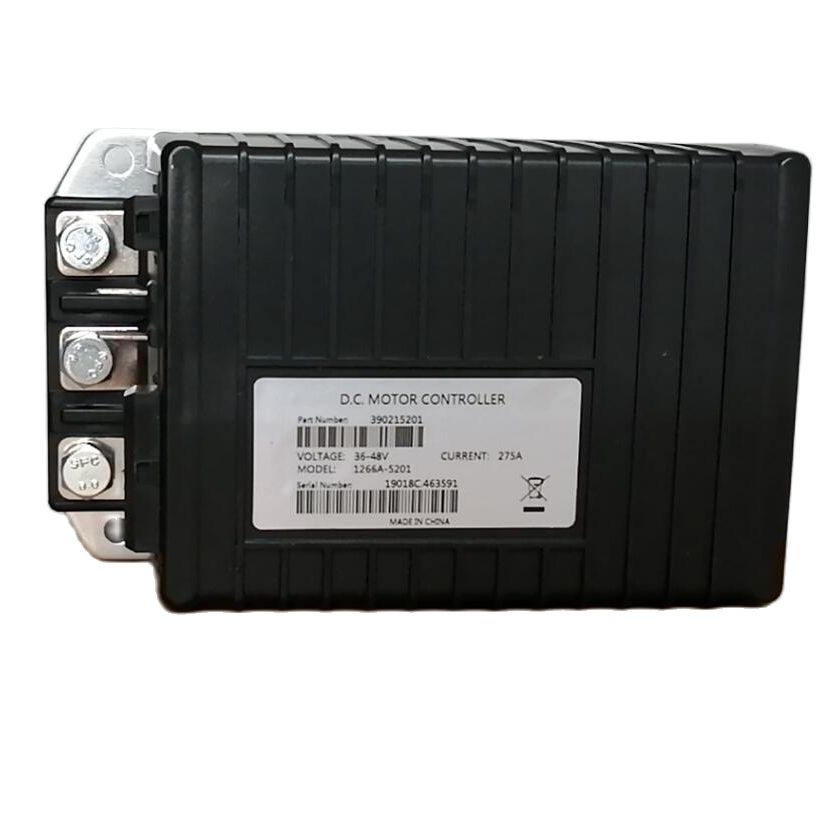

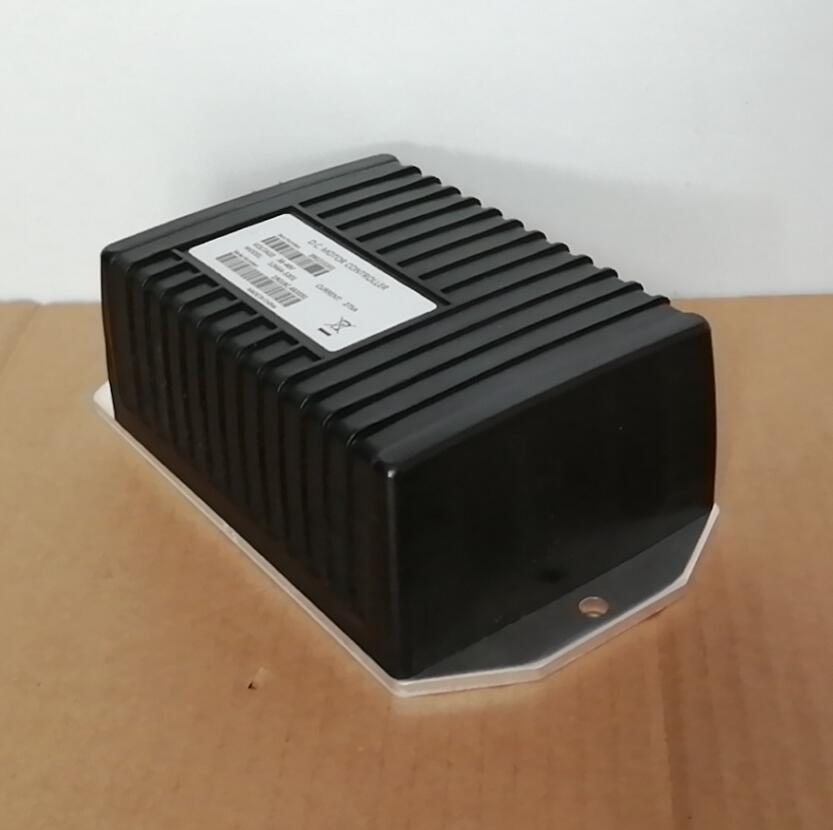

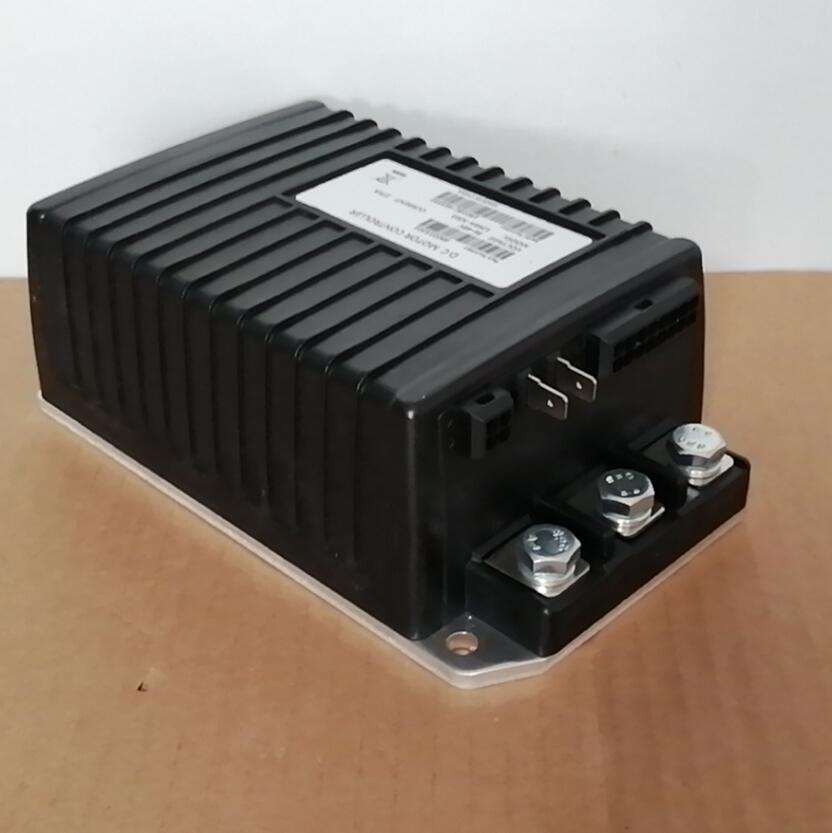

Replacing Curtis 1266 1266A-5201 36V 48V 275A DC SepEx Motor Controller For Electirc Stacker Pallet Truck





General Description:
The 1266 series controllers  are power MOSFET electronic motor speed controllers designed to provide smooth, silent, efficient and cost effective speed, torque and braking control.



Applications:
The 1266A-5201 motor speed controllers are ideal for a variety of electric vehicle applications, including industrial trucks, personnel carriers, material handling vehicles, tow tractors, walkie and small forklift applications, scrubbers, sweepers, scissors-lift and boom trucks, etc.

Specifications:

  • Frequency of Operation:16 kHz

  • Standby Current:less than 20 mA

  • Standard Throttle Input:0-5V (others available)

  • Weight: 1.45kg

  • Full Power Operating Temperature Range:-25°Celsius to 75°Celsius (controller temperature)

  • Nominal input voltage:36V/48V(Optional)
    Current rating 2minute:275A
