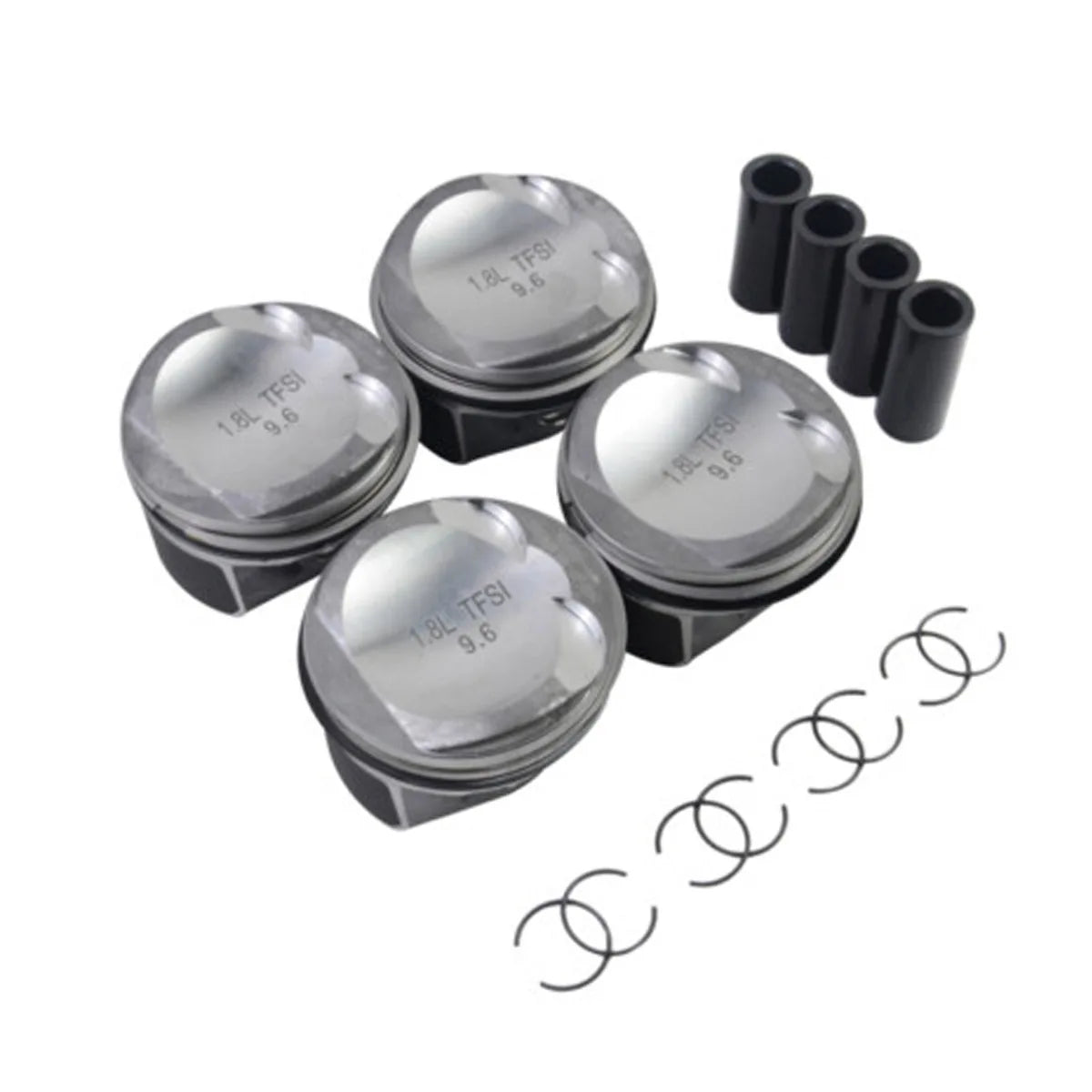

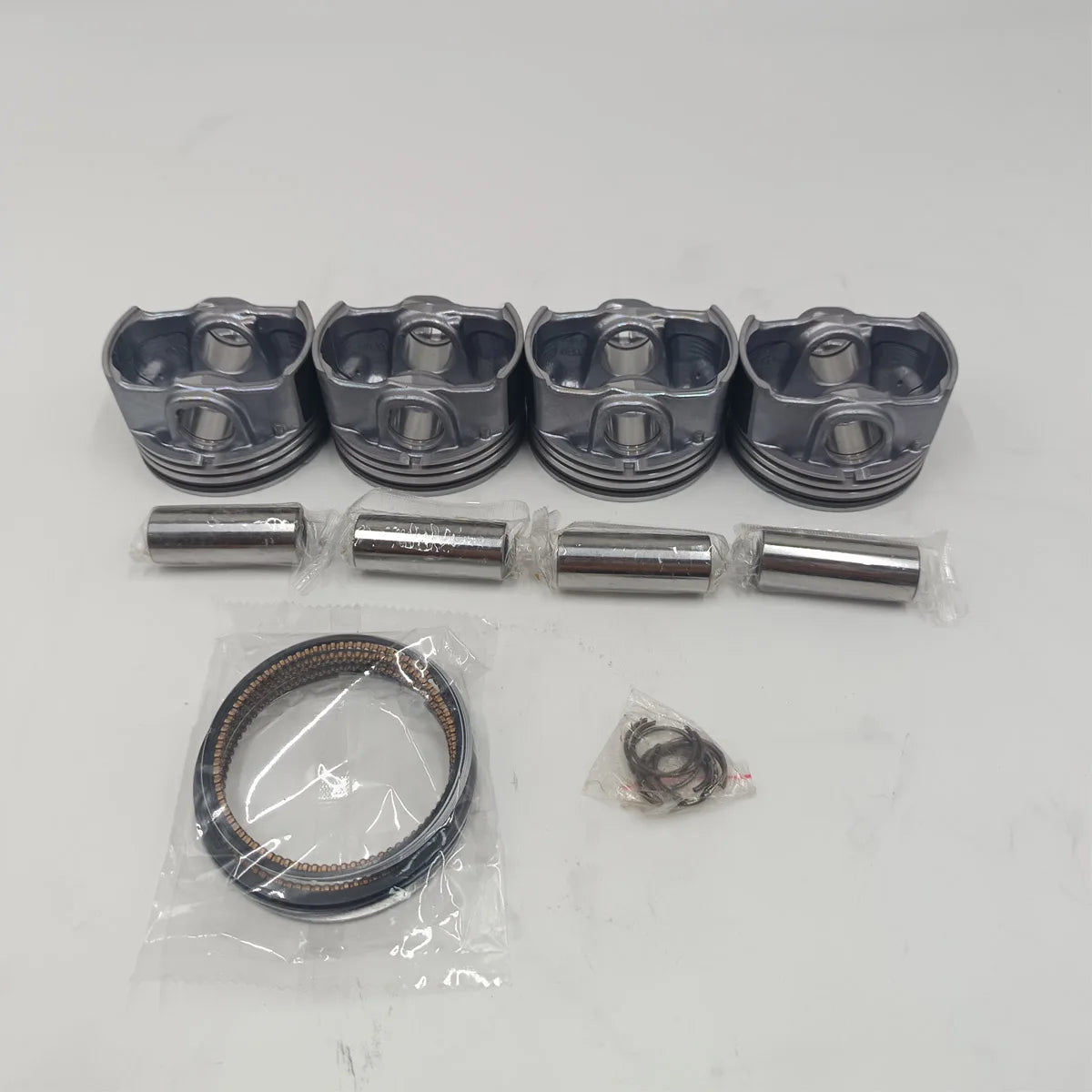

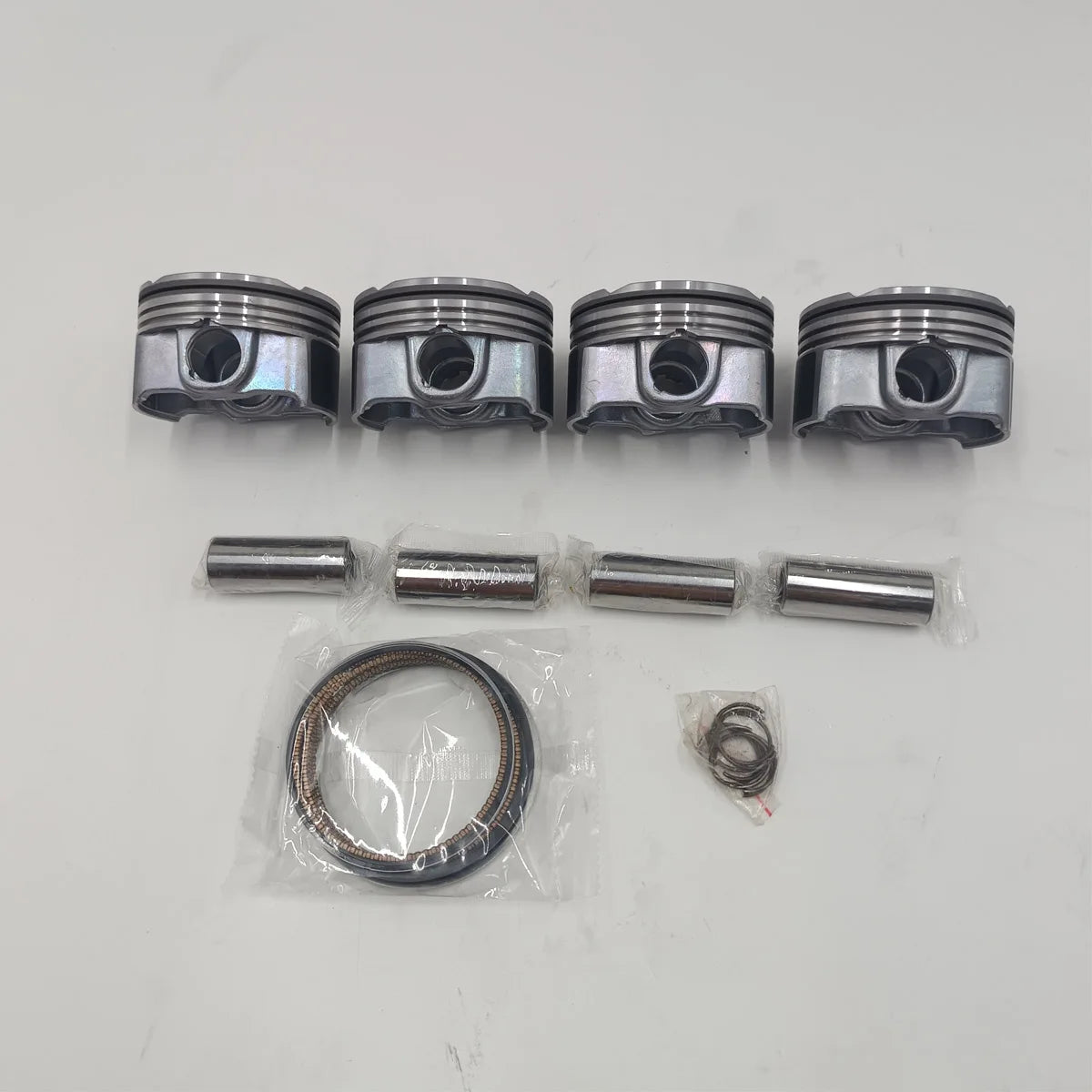

Pistons & Rings Oversized Φ83mm +0.50 Φ23mm 4pcs Set
For VW CC Passat Golf Beetle AUDI A3 A4 A5 TT 1.8 TFSI
CDA CJE CJS CNS CPR CPK


Confirm cylinder bore Φ83mm ( +0.50mm) / pin bolt Φ23mm
Completely solve oil consumption issue

OE#
06H 107 065 DL
06H 198 151 C
N 911 766 01 (Φ23mm)

Replacement OE#
06H 107 065 F / T / CA / BS / CP / DF
06H 107 099 BS / BM
06K 107 065 A / G / BF / BG / BQ
06K 107 099 AA / BC / BJ
06L 107 065 B / AS
06H 198 151 B

Description
- Oversized  Φ83.01 mm (+0.50)
- Pin Diameter Φ23mm / Length 52mm
- Only fit 1.8L engine Please Read carefully the "Fit Car Model" in the following

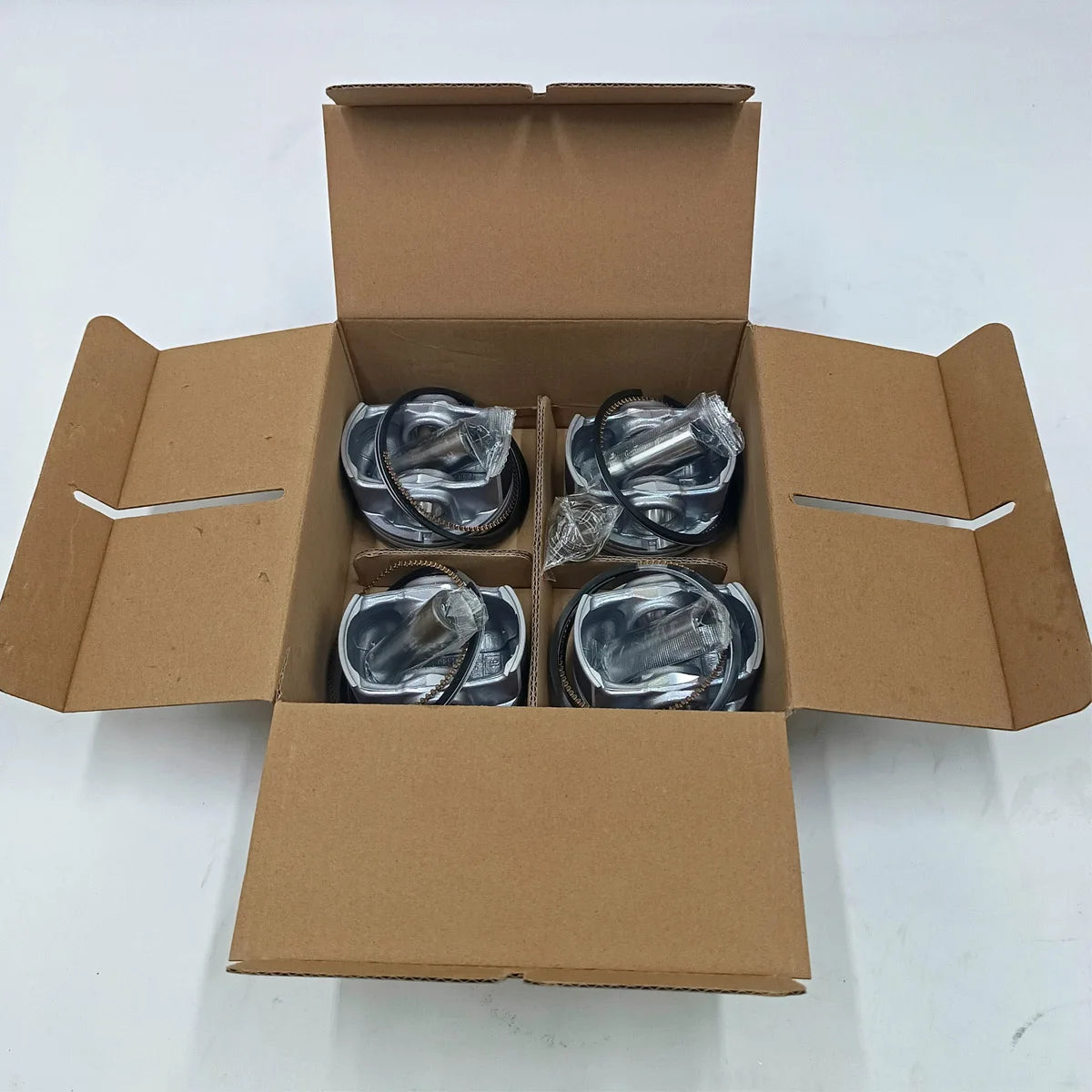

Package includes
Pistons      x 1set



Fit Car Model


Brand & Model                 Produce Year                      Fit Engine
Audi
Oversized 83mm / pin Φ23mm
A3    2012-2017    1.8 TFSI CDAA CJSA CJSB CNSB
A4    2012-2015    1.8 TFSI CDHA CDHB CJEB
A5    2012-2016    1.8 TFSI CDHB CJEB CJEE
TT    2012-2017    1.8 TFSI CDAA CJSA CJSB



Volkswagen
Oversized 83mm / pin Φ23mm
Beetle    2016-    1.8 TSI CPRA CPKA
CC    2012-2017    1.8 TSI CDAA CDAB
Golf     2014-2017    1.8 TSI CNSA CNSB
Jetta    2012-2017    1.8 TSI CPRA CPKA
Passat    2012-2016    1.8 TSI CDAA CDAB CPRA CPKA



Skoda
Oversized 83mm / pin Φ23mm
Octavia     2012-2017    1.8 TSI CDAA CDAB CJSA CJSB
Superb    2012-2017    1.8 TSI CDAA CDAB CJSA CJSC



Seat
Oversized 83mm / pin Φ23mm
Altea    2012-2016    1.8 TSI CDAA
Leon    2012-2017    1.8 TSI CDAA CJSA
