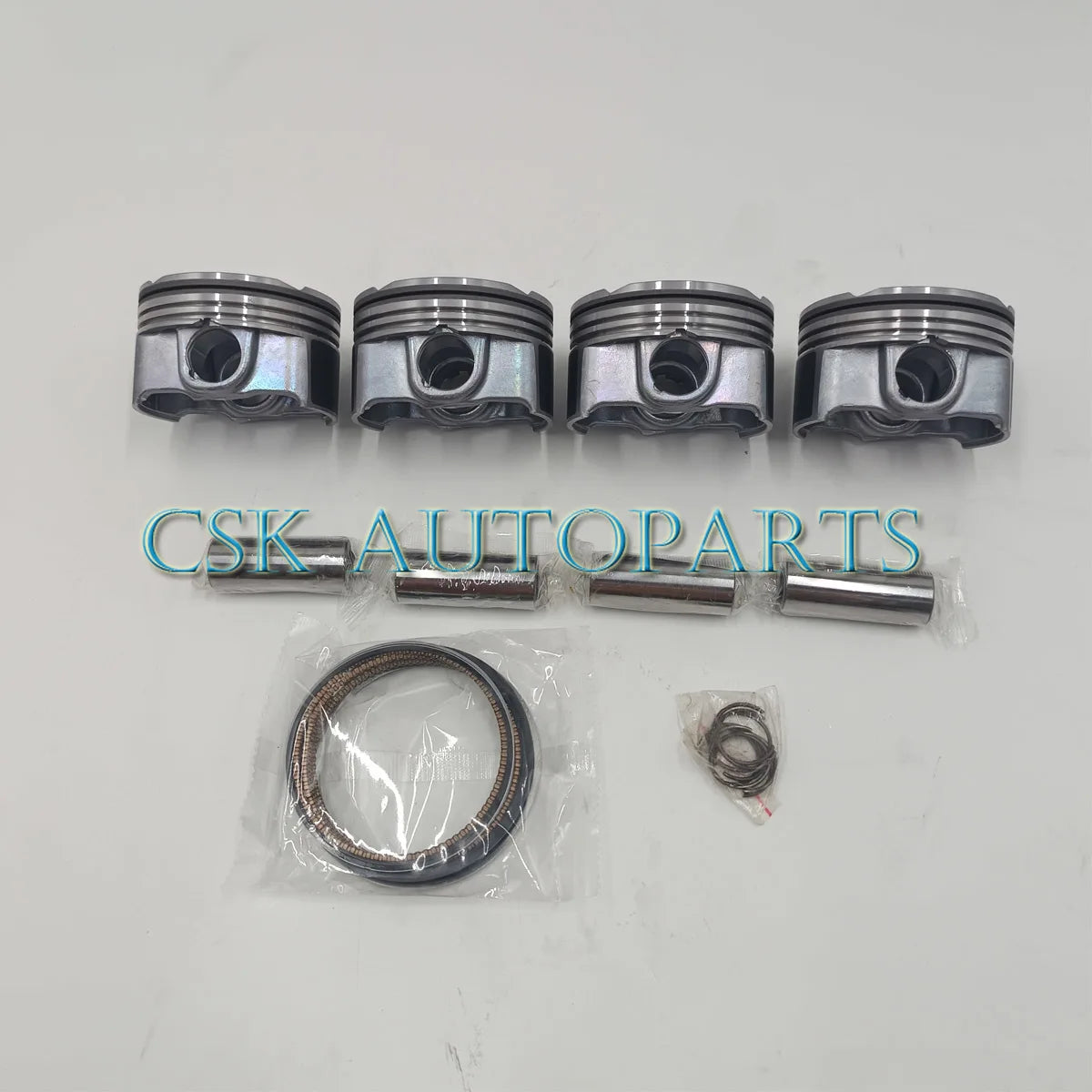

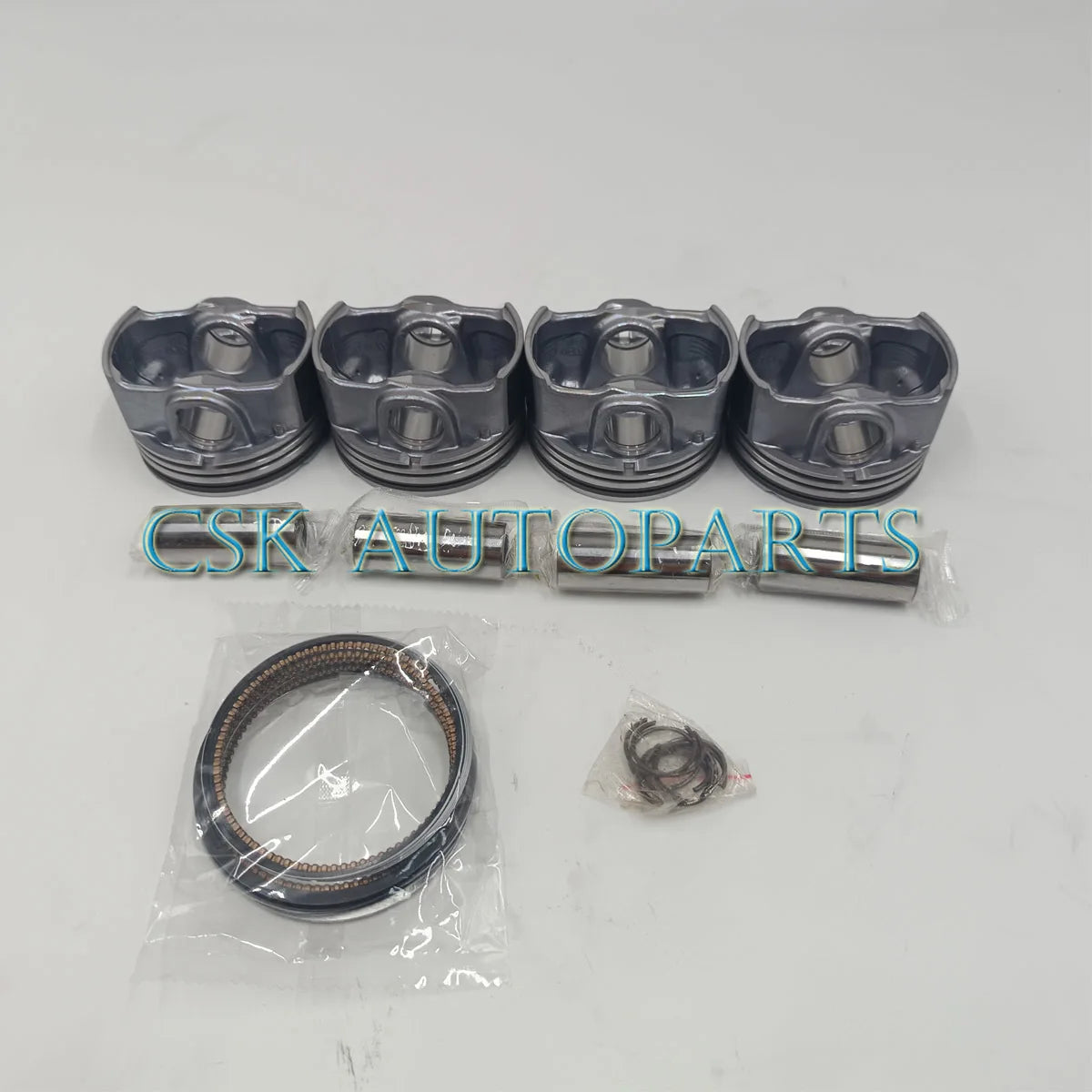

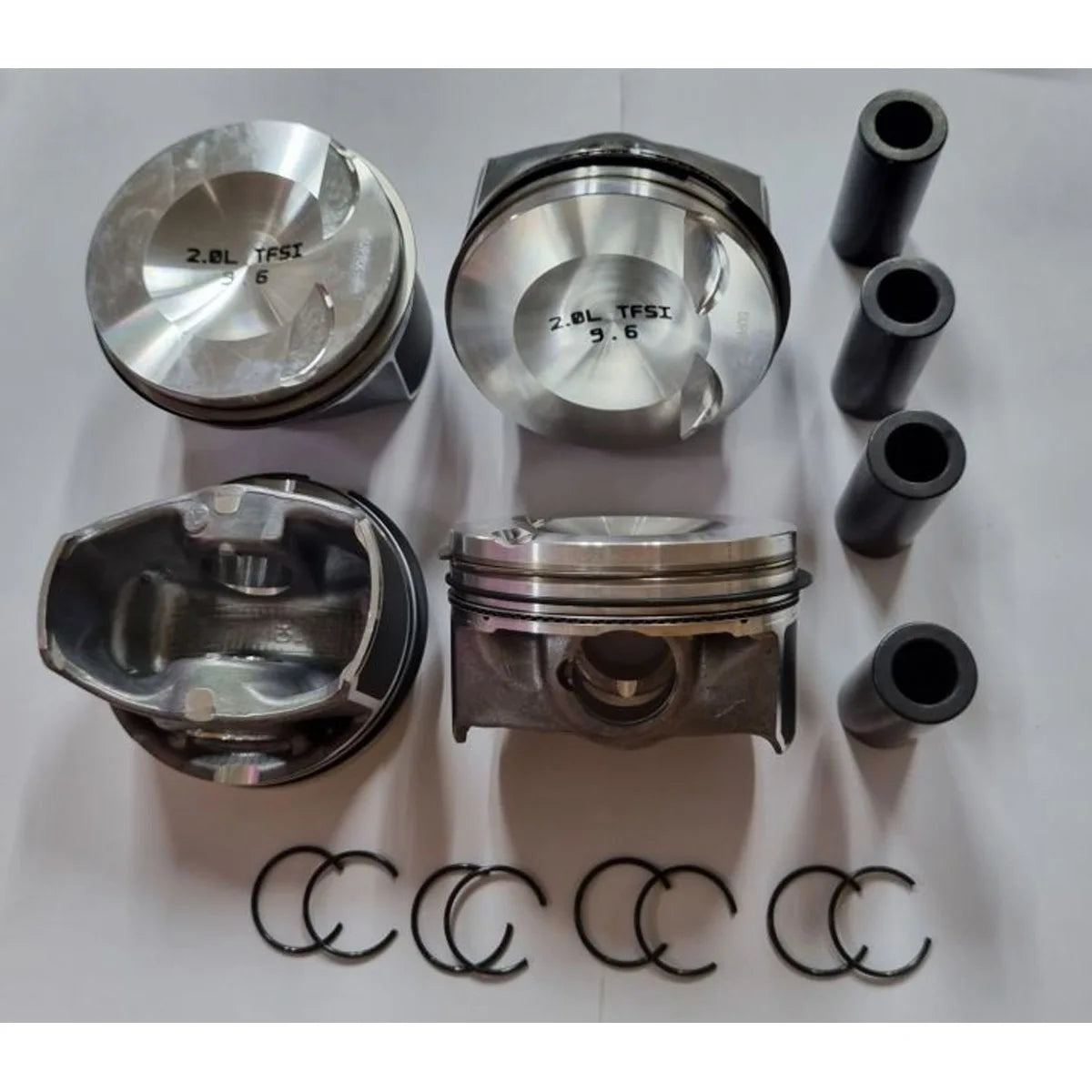

4x Engine  Pistons & Rings Set 0.50mm 83mm /  Φ21mm  Oversized Set
For VW Jetta GLI Golf GTI Passat Tiguan Audi A3 A4 A5 2.0TSI 2.0TFSI DOHC 16V EA888
Confirm cylinder bore Φ83mm ( +0.50mm) / pin bolt Φ21mm
Completely solve oil consumption issue


OE#
06H 107 065 DM
N 905 583 01 ( Φ21mm)
06H 198 151 B

Replacement OE#
06H 107 065 AB / AM / BE / CM / DD
06H 107 099 AM
06H 198 151 C / J
06J 198 151 B / C

Description
- Oversized 0.50mm ( fit cylinder expand)
- Fit Cylinder Bore 83.01mm
- Piston Diameter 82.975mm
- Pin Bolt Diameter Φ21mm
- Ring Thickness 1.2mm / 1.5mm / 2.0mm
- Buckle Size 21mm x 1.5mm
- Made by  KOLBENSCHMIDT
- Please Read carefully the "Fit Car Model" in the following

Package includes
Piston                    x1set
Piston Ring            x1set
Piston Pin              x4
Piston Pin Buckle  x8



Fit Car Model


Brand & Model                 Produce Year          Fit Engine
Audi
Pin Φ21mm
A3 / A3 Quattro    2008-2011.5.30    2.0 TFSI CAWB CBFA CCZA
A4 / A4 Quattro    2009-2011.5.30    2.0 TFSI CAEA CAEB CDNB CDNC
A4 Allroad    2010-2011.5.30    2.0 TFSI CDNC
A5 / A5 Quattro    2008-2011.5.30    2.0 TFSI CAEB CDNB CDNC
Q5    2008-2011.5.30    2.0 TFSI CAEB CDNB CDNC
TT / TT Quattro    2008-2010    2.0 TFSI CCTA CCZA



Volkswagen
Pin Φ21mm
EOS    2008-2011.4.30    2.0 TSI CAWB CBFA CCTA CCZA CCZB
Golf GTI    2008-2011    2.0 TSI CAWB CBFA CCTA CCZA CCZB
Jetta / GLI    2008-2011    2.0 TSI CAWA CAWB CBFA CCTA CCZA
Passat    2008-2011    2.0 TSI CAWB CCTA CCTB CCZA CCZB
Passat CC    2009-2011.5.30      2.0 TSI CAWB CBFA CCTA CCZA CCZB
Scirocco    2009-2011.4.30    2.0 TSI CAWB CCZB
Tiguan    2008-2011    2.0 TSI / 2.0 TFSI



Skoda
Pin Φ21mm
Octavia    2009-2011.5.15    2.0 TSI CCZA
Superb    2008-2011.5.15    2.0 TSI CCZA



Seat
Pin Φ21mm
Altea    2008-2010    2.0 TSI CCZB
Leon    2008-2010    2.0 TSI CCZB
