Pistons Rings Timing Chain Tensioner Crankshaft Connecting Rod Bearing Shell Oil Seals Gasktets
Engine Overhaul Reconstruction Kit  For VW AUDI SEAT SKODA 1.8 TSI CDAA CDAB CDHA CDHB
Please confirm your original piston pin bolt is Φ23mm
if you need  Φ21mm piston pin bolt please contact me b efore buying

Please read carefully the "Fit Car Model" in the following


Pistons & Rings OE#                         Pistons & Rings Replacement OE#
06H 107 065 DF                                06H 107 065 BK / BF / BS / CP / DL
N 911 766 01 ( Φ23mm)                     06H 107 065 T / F
06H 198 151 B                                   06H 198 151 C / J
                                                           06J 198 151 B/C


Pistons & Rings Spec
STD 0.00 spec (no fit cylinder expand)
Piston Diameter 82.5mm （3.25" / 3.25in.）
Pin bolt Diameter  Φ 23mm
Ring Thickness 82.5x1.2, 82.5x1.5 , 82.5x2.0
Buckle Size 23x1.5mm


Valves OE#                                        Replacement OE#
06D 109 601 M                                  06D 109 611 L / T
06D 109 611 H


Bearing Shell OE#                             Bearing Shell Replacement OE#
06H 105 561 K                                   06H 105 561 C / M
06H 105 591 K                                    06H 105 591 C / M
06H 105 701 D GLB                           06H 105 701 C GLB


Seals & Gasket Kit OE#                           Included Parts
06J 103 383 D /    06H 103 483 C             Valve oil seal
06H 103 483 D /   06H 103 484 A             Cylinder Head Gasket
06F 129 717 D /   06F 253 039 F              Crankshaft oil seal
1K0 253 115 AB / 06J 117 070 C              Camshaft oil seal
06J 115 441 A /    06J 121 119                 Intake &  Exhaust manifold Gasket
06H 103 121 J /    06H 103 171 F             Valve Cover Gasket
06H 103 085 G /   036 109 675 A

Timing Chain Kit OE#                                Included Parts
06H 109 467 N / 06H 109 467 AE              Timing Chain Tensioner
06H 109 158 H / 06H 109 158 J                 Timing Chain (Long)
06H 109 469 AQ / 06H 109 469 AH            Timing Chain (Short)
06H 109 469 AP / 06H 109 469 T               Timing Gear
06H 109 509 P / 06H 109 509 Q                 Timing Guide Set
06H 109 507 N / 06H 105 209 AQ              Oil Pump Chain
06H 115 225 L                                               Oil Pump Chain Tensioner

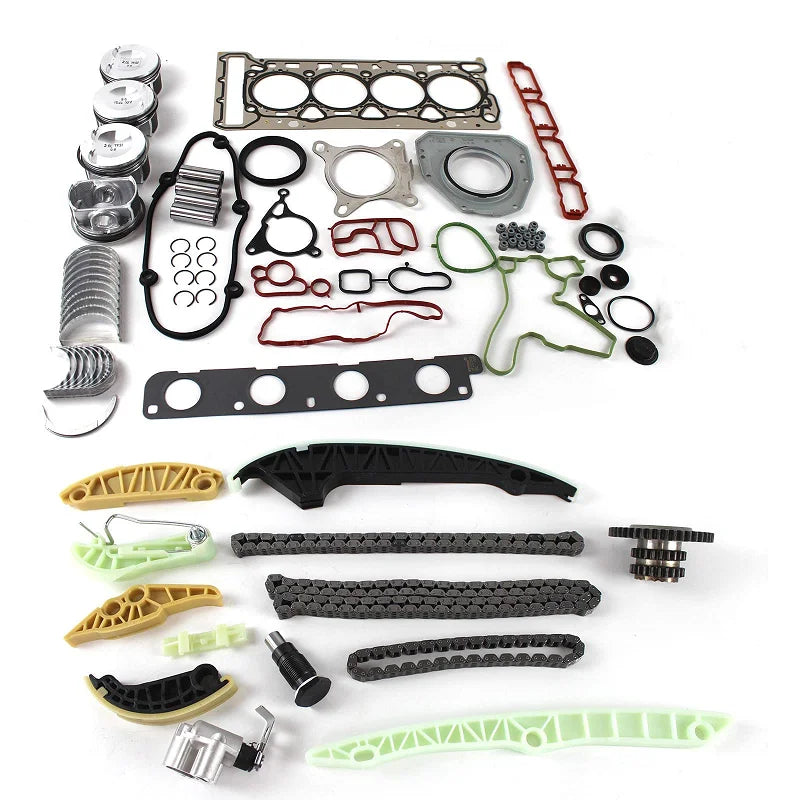

Package includes
Piston & Ring        x4
Bearing Shell        x1 set
Thrust washer       x1 set
16pcs valves         x1 set
Repair Kit              x1 set
13pcs timing Kit    x1 set
Head Bolt              x10 pcs



Fit Car Model


Brand & Model                 Produce Year          Fit Engine
AUDI
Piston pin bolt Φ23mm
A3    31.05.2011-2013         1.8 TFSI CDAA
A4    31.05.2011-2015    1.8 TFSI CDHA 88kw (120ps) /  CDHB 118kw (160ps)
A5    31.05.2011-2013    1.8 TFSI CDHB 118kw (160ps)
TT    31.05.2011-2014    1.8 TFSI CDAA 118kw (160ps)






VOLKSWAGEN
Piston pin bolt Φ23mm
CC    2012-2016    1.8 TSI CDAA CDAB
Passat (B7)    2012-2015    1.8 TSI CDAA CDAB
Sharan    2012-2015    1.8 TSI CDAA






SKODA
Piston pin bolt Φ23mm
Octavia    18.05.2011-2013    1.8 TSI CDAA CDAB
Superb    18.05.2011-2015    1.8 TSI CDAA CDAB
