Engine Pistons Gaskets Overhaul Rebuild Kit
For Audi A6 A7 A8 S5 Q7 3.0 TFSI EA837 CRE CTD

Send Vin number before order


Pistons OE#
06E 107 065 EC / DS
06E 107 066 EC / DS
06E 198 151 AA

Description
- Cylinder bore Φ84.51mm ( STD spec )
- P in  wrist  Φ22mm
- Ring thickness 1st 1.2mm / 2nd 1.2mm / 3rd / 2.0mm
- For 3.0 TFSI ( 2995cc )  V6 Supercharged (CRE CTD)

Bearing Shell OE#
06E 105 561 AB / AC
06E 105 591 AB / AC
07L 105 701 D / E

Seals & Gasket Kit OE#
06E 103 148 AN / AR
06E 103 149 AN / AR
06E 103 483 Q
06E 103 484 P
06E 103 153 E
06E 103 051 J

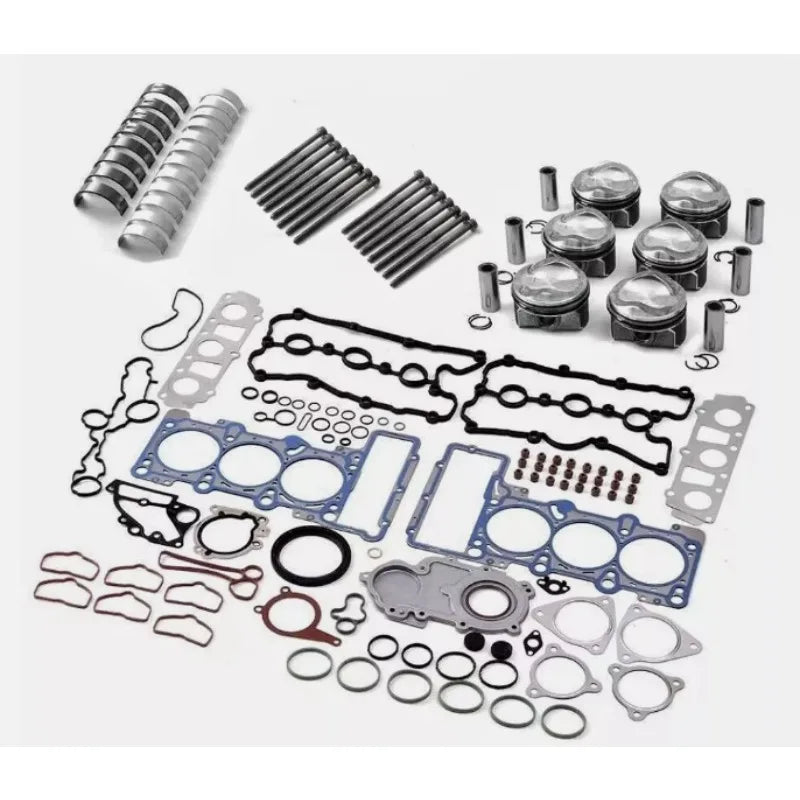

Package includes
Piston & Ring        x1set
Gasket seals kit    x1 set
Bearings               x1 set
Head Bolt             x16pcs


Fit Car Model


Brand & Model             Year                         Note
Audi
Send Vin number
A6 (C7)    2015-2018    3.0 TFSI CTDB 200kw (272ps ) / CREC 245kw (333ps)
A6 allroad (C7)    2016-2018    3.0 TFSI CREC 245kw (333ps)
A7 (4GF)    2016-2018    3.0 TFSI CREC 245kw (333ps)
A8 (D4)    2014-2018    3.0 TFSI CREG 213kw (290ps) / CTDA 245kw (333ps)
Q7 (4M)    2016-2019    3.0 TFSI CREC 245kw (333ps)
S5 (B8)    2014-2018    3.0 TFSI CTDA 245kw (333ps)
