Engine Pistons Gaskets Overhaul Rebuild Kit For Audi A5 A6 A7 A8 S4 S5 Q5 Q7 VW Touareg 3.0 TSI TFSI EA837

Compatible VW Audi 3.0 TFSI V6 2995cc 183Cu Supercharged

Confirmed your Original Piston pin bolt is Φ22mm

Pistons & Rings OE# Pistons & Rings Replacement OE# Pistons & Rings Spec

06E 107 065 DM (4-6 Cyl.) 06E 107 065 CJ / CN - Cylinder bore Φ84.51mm ( STD spec )

06E 107 066 DM (1-3 Cyl.) 06E 107 066 CJ / CN - Piston diameter Φ84.475mm

06E 198 151 L 06E 198 151 J / K / Q - Piston pin wrist Φ22mm / Length 59mm

N 012 278 1 (Φ22mm) MAHLE - 028 PI 00124 000 / 028 PI 00125 000

- Ring thickness 1st 1.2mm / 2nd 1.5mm / 3rd / 2.0mm

MAHLE - 033 PI 91207 000 / 033 PI 91208 000

Bearing Shell OE# Bearing Shell Replacement OE# Bearing Shell Spec

06E 105 561 AB 06E 105 561 AC STD spec

06E 105 591 AB 06E 105 591 AC

07L 105 701 D

07L 105 701 E

Seals & Gasket Kit OE#

06E 103 148 AG

06E 103 149 AG

06E 253 039 C

06E 103 483 P

06E 103 484 N

06C 115 189 B

06E 103 153 E

Timing kit OE#

06E 109 217 AH

06E 109 218 AJ

06E 109 507 D

06E 109 465 AS

06E 109 465 AT

06E 109 465 BC

079 109 469 AL

079 109 469 AM

079 109 507 T

079 109 470

Intake and exhaust valve OE#

06E 109 601 E

06D 109 611 H

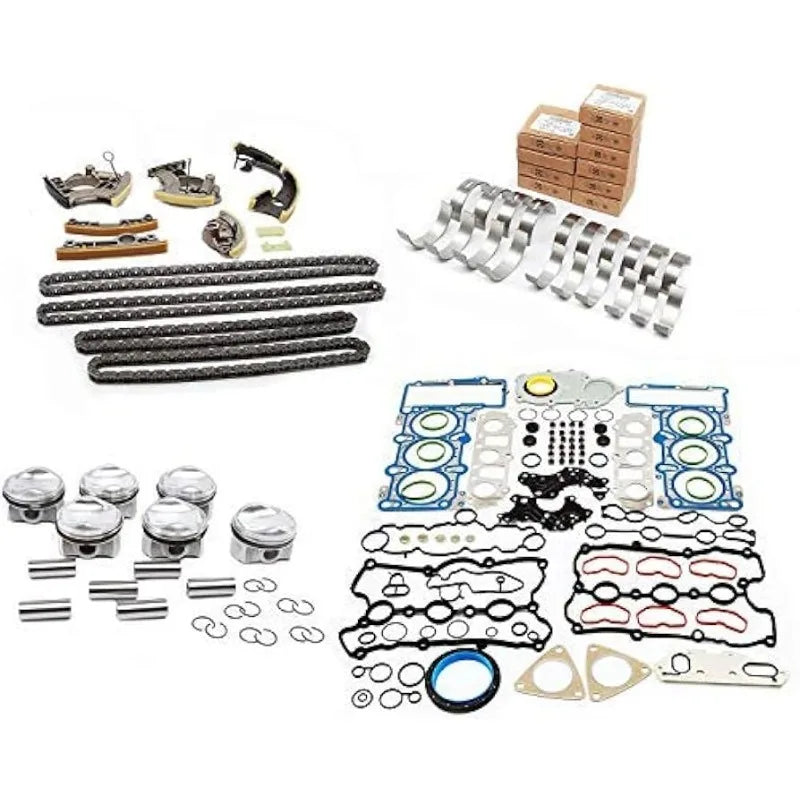

Package includes

Piston & Ring x1set (MAHLE)

Gasket seals kit x1 set (ELRING)

Bearings x1 set (OE)
Timing kit x1 set (INA)
Intake and exhaust valve x1 set (MAHLE)

Head Bolt x16pcs (ELRING)

Fit Car Model

Brand & Model	Year	Note
Volkswage		Cylinder bore Φ84.51mm / Piston Pin bolt Φ22mm
Touareg	2011-2016	3.0 TSI Hybrid CGEA CGFA CJTA CYJA

Audi		Cylinder bore Φ84.51mm / Piston Pin bolt Φ22mm
A4 Quattro	2012-2015	3.0 TFSI CMUA
S4 Quattro (B8)	2010-2015	3.0 TFSI CAKA CCBA CGWC CGXC CTUB
A5 Quattro	2012-2016	3.0 TFSI CMUA
S5 Quattro	2010-2014	3.0 TFSI CAKA CCBA CGWC CGXC CTUB
A6 Quattro (C6)	2009-2011	3.0 TFSI CAJA CCAA
A6 Quattro (C7)	2012-2014	3.0 TFSI CGWB CGWD CGXB CTUA
A6 Allroad (C6)	2008-2011	3.0 TFSI CAJA
A6 Allroad (C7)	2012-2014	3.0 TFSI CGWD
A7	2011-2014	3.0 TFSI CGWB CTTA
A8	2010-2013	3.0 TFSI CGWA CMDA
Q5	2012-2017	3.0 TFSI CTVA CTUC
SQ5	2013-2017	3.0 TFSI CTXA CTUD
Q7	2010-2015	3.0 TFSI CJT CJW CNA

BeeSpareParts

Overhaul Rebuild Pistons Gaskets Kit For Audi A4 A5 VW Touareg 3.0T Engine

SKU 06E 107 065 DM

Regular price: $ 1,529
