Compatible VW Audi 3.0 TFSI V6 2995cc 183Cu Supercharged
Confirmed your Original Piston pin bolt is Φ22mm
Pistons & Rings OE# Pistons & Rings Replacement OE# Pistons & Rings Spec
06E 107 065 DM (4-6 Cyl.) 06E 107 065 CJ / CN - Cylinder bore Φ84.51mm ( STD spec )
06E 107 066 DM (1-3 Cyl.) 06E 107 066 CJ / CN - Piston diameter Φ84.475mm
06E 198 151 L 06E 198 151 J / K / Q - Piston pin wrist Φ22mm / Length 59mm
N 012 278 1 ( Φ22mm)
Seals & Gasket Kit OE#
06E 103 153 E
06E 103 149 AG
06E 103 148 AG
06E 103 483 P
06E 103 484 N
06E 103 121 A
06E 117 070 J
06E 121 139 H
036 109 675 A
079 103 051 F
06E 103 181 K
06E 103 181 L
06E 103 181 M
079 129 717 B*6
079 129 717 D*6
06E 115 446
06E 145 417 A
06J 103 113
06E 121 119 B
Bearings OE#
07L 105 701 D GLB*6
07L 105 701 E GLB*6
06E 105 591 AC GLB*4
06E 105 561 AC GLB*4
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

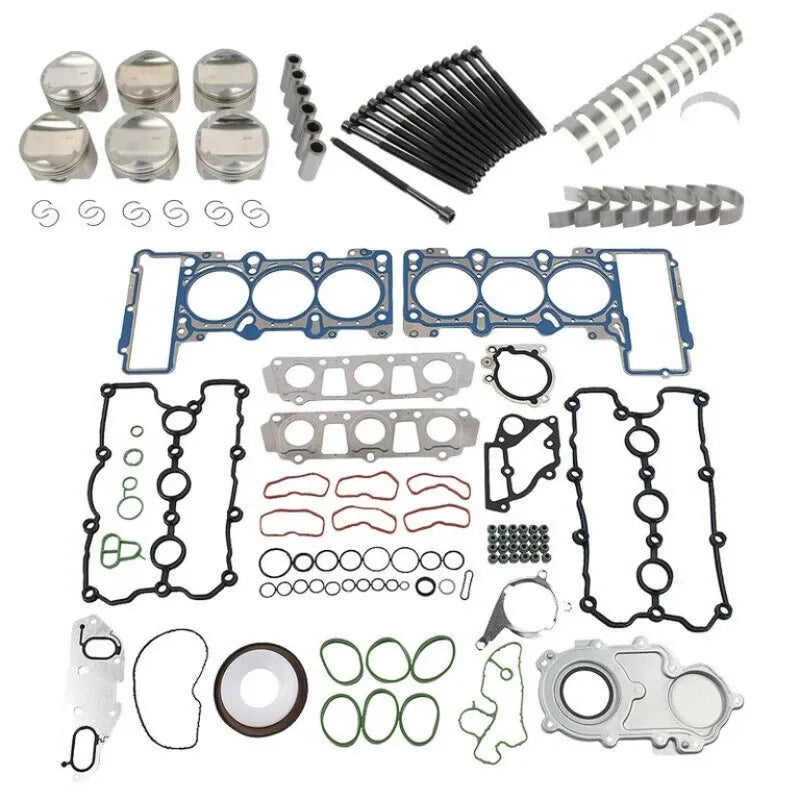

Package includes
Piston & Ring x1set
Gasket seals kit x1 set
Bearings x1 set
Fit Car Model
Brand & Model Year Note
Volkswage Cylinder bore Φ84.51mm / Piston Pin bolt Φ22mm
Touareg 2011-2016 3.0 TSI Hybrid CJTA 213kw (290ps)
Touareg 2011-2016 3.0 TSI Hybrid CGEA CGFA 245kw (333ps)
Audi
Cylinder bore Φ84.51mm / Piston Pin bolt Φ22mm
A4 Quattro 2012-2015 3.0 TFSI CMUA 200kw (272ps)
S4 Quattro (B8) 2010-2015 3.0 TFSI CAKA CCBA CGWC CGXC CTUB 245kw (333ps)
A5 Quattro 2012-2016 3.0 TFSI CMUA 200kw (272ps)
S5 Quattro 2010-2017 3.0 TFSI CAKA CCBA CGWC CGXC CTUB 245kw (333ps)
A6 Quattro (C6) 2009-2011 3.0 TFSI CAJA 213kw (290ps) / CCAA 220kw (300ps)
A6 Quattro (C7) 2012-2014 3.0 TFSI CGWB 220kw (300ps) / CGWD CGXB CTUA 228kw (310ps)
A6 Allroad (C6) 2008-2011 3.0 TFSI CAJA 213kw (290ps)
A6 Allroad (C7) 2013-2017 3.0 TFSI CGWD 228kw (310ps)
A7 2011-2014 3.0 TFSI 220kw (300ps) / 228kw (310ps)
A8 2011-2014 3.0 TFSI 213kw (290ps) / 228kw (310ps) / 245kw (333ps)
Q5 2012-2017 3.0 TFSI CTVA CTUC 200kw (272ps)
SQ5 2013-2017 3.0 TFSI CTXA CTUD 260kw (354ps)
Q7 2010-2015 3.0 TFSI 200kw (272ps) / 206kw (280ps) / 245kw (333ps)
- Regular price
- $ 834
Compatible VW Audi 3.0 TFSI V6 2995cc 183Cu Supercharged
Confirmed your Original Piston pin bolt is Φ22mm
Pistons & Rings OE# Pistons & Rings Replacement OE# Pistons & Rings Spec
06E 107 065 DM (4-6 Cyl.) 06E 107 065 CJ / CN - Cylinder bore Φ84.51mm ( STD spec )
06E 107 066 DM (1-3 Cyl.) 06E 107 066 CJ / CN - Piston diameter Φ84.475mm
06E 198 151 L 06E 198 151 J / K / Q - Piston pin wrist Φ22mm / Length 59mm
N 012 278 1 ( Φ22mm)
Seals & Gasket Kit OE#
06E 103 153 E
06E 103 149 AG
06E 103 148 AG
06E 103 483 P
06E 103 484 N
06E 103 121 A
06E 117 070 J
06E 121 139 H
036 109 675 A
079 103 051 F
06E 103 181 K
06E 103 181 L
06E 103 181 M
079 129 717 B*6
079 129 717 D*6
06E 115 446
06E 145 417 A
06J 103 113
06E 121 119 B
Bearings OE#
07L 105 701 D GLB*6
07L 105 701 E GLB*6
06E 105 591 AC GLB*4
06E 105 561 AC GLB*4
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Package includes
Piston & Ring x1set
Gasket seals kit x1 set
Bearings x1 set
Fit Car Model
Brand & Model Year Note
Volkswage Cylinder bore Φ84.51mm / Piston Pin bolt Φ22mm
Touareg 2011-2016 3.0 TSI Hybrid CJTA 213kw (290ps)
Touareg 2011-2016 3.0 TSI Hybrid CGEA CGFA 245kw (333ps)
Audi
Cylinder bore Φ84.51mm / Piston Pin bolt Φ22mm
A4 Quattro 2012-2015 3.0 TFSI CMUA 200kw (272ps)
S4 Quattro (B8) 2010-2015 3.0 TFSI CAKA CCBA CGWC CGXC CTUB 245kw (333ps)
A5 Quattro 2012-2016 3.0 TFSI CMUA 200kw (272ps)
S5 Quattro 2010-2017 3.0 TFSI CAKA CCBA CGWC CGXC CTUB 245kw (333ps)
A6 Quattro (C6) 2009-2011 3.0 TFSI CAJA 213kw (290ps) / CCAA 220kw (300ps)
A6 Quattro (C7) 2012-2014 3.0 TFSI CGWB 220kw (300ps) / CGWD CGXB CTUA 228kw (310ps)
A6 Allroad (C6) 2008-2011 3.0 TFSI CAJA 213kw (290ps)
A6 Allroad (C7) 2013-2017 3.0 TFSI CGWD 228kw (310ps)
A7 2011-2014 3.0 TFSI 220kw (300ps) / 228kw (310ps)
A8 2011-2014 3.0 TFSI 213kw (290ps) / 228kw (310ps) / 245kw (333ps)
Q5 2012-2017 3.0 TFSI CTVA CTUC 200kw (272ps)
SQ5 2013-2017 3.0 TFSI CTXA CTUD 260kw (354ps)
Q7 2010-2015 3.0 TFSI 200kw (272ps) / 206kw (280ps) / 245kw (333ps)
- Regular price
- $ 834
