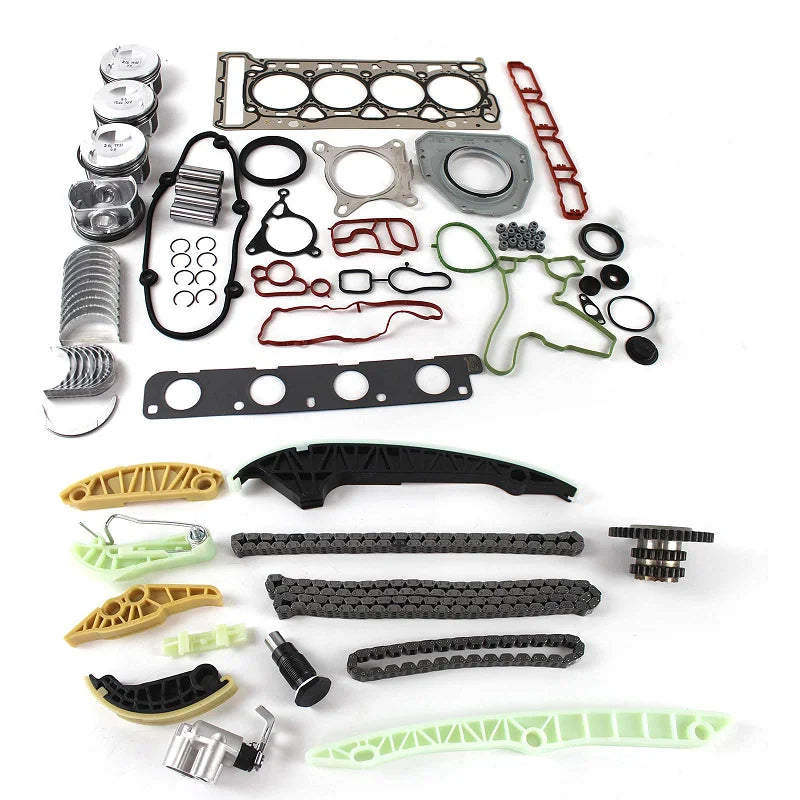

Pistons Rings Timing Chain Tensioner Crankshaft Connecting Rod Bearing Shell Oil Seals Gasktets

Engine Overhaul Reconstruction Kit For VW AUDI 2.0 TFSI

Please confirm your original piston pin bolt is Φ23mm

if you need Φ21mm piston pin bolt please contact me b efore buying

Please read carefully the "Fit Car Model" in the following

Pistons & Rings OE# Pistons & Rings Replacement OE#

06H 107 065 BH 06H 107 065 CM / DD / DG / DJ / DM / DN

N 911 766 01 ( Φ23mm) 06H 107 099 CA / BQ / BJ / BP

06H 198 151 B 06H 198 151 C / J

06J 198 151 B/C

Pistons & Rings Spec

STD 0.00 spec (no fit cylinder expand)

Piston Diameter 82.5mm （3.25" / 3.25in.）

Pin bolt Diameter Φ 23mm

Ring Thickness 82.5x1.2, 82.5x1.5 , 82.5x2.0

Buckle Size 23x1.5mm

Valves OE# Replacement OE#

06D 109 601 M 06D 109 611 L / T

06D 109 611 H

Bearing Shell OE# Bearing Shell Replacement OE#

06H 105 561 L 06H 105 561 A

06H 105 591 L 06H 105 591 A

06H 105 701 D GLB 06H 105 701 C GLB

Seals & Gasket Kit OE# Included Parts

06J 103 383 D / 06H 103 483 C Valve oil seal

06H 103 483 D / 06H 103 484 A Cylinder Head Gasket

06F 129 717 D / 06F 253 039 F Crankshaft oil seal

1K0 253 115 AB / 06J 117 070 C Camshaft oil seal

06J 115 441 A / 06J 121 119 Intake & Exhaust manifold Gasket

06H 103 121 J / 06H 103 171 F Valve Cover Gasket

06H 103 085 G / 036 109 675 A

Timing Chain Kit OE# Included Parts

06H 109 467 N / 06H 109 467 AE Timing Chain Tensioner

06H 109 158 H / 06H 109 158 J Timing Chain (Long)

06H 109 469 AQ / 06H 109 469 AH Timing Chain (Short)

06H 109 469 AP / 06H 109 469 T Timing Gear

06H 109 509 P / 06H 109 509 Q Timing Guide Set

06H 109 507 N / 06H 105 209 AQ Oil Pump Chain

06H 115 225 L Oil Pump Chain Tensioner

Package includes

Piston & Ring x4

Bearing Shell x1 set

Thrust washer x1 set

16pcs valves x1 set

Repair Kit x1 set

13pcs timing Kit x1 set

Head Bolt x10 pcs

Fit Car Model

Brand & Model	Produce Year	Fit Engine
AUDI		Piston pin bolt Φ23mm
A3 / A3 Quattro	01.06.2011-2013	2.0 TFSI CAWB CBFA CCTA CCZA
A4 / A4 Quattro	01.06.2011-2015	2.0 TFSI CAEA CAEB CDNB CDNC CFKA CPMA CPMB
A4 Allroad Quattro	01.06.2011-2015	2.0 TFSI CDNC CPMA CPMB
A5 / A5 Quattro	01.06.2011-2015	2.0 TFSI CAEB CAED CDNB CDNC CPMA CPMB
A6	2012-2014	2.0 TFSI CAEB CAED CDNB CHJA
Q5	01.06.2011-2015	2.0 TFSI CAEB CDNB CDNC
TT / TT Quattro	2011-2014	2.0 TFSI CESA CETA 155kw (211ps)

VOLKSWAGEN		Piston pin bolt Φ23mm
EOS	01.05.2011-2015	2.0 TSI CCTA CCZA CCZB CBFA
CC	2012-2016	2.0 TSI CAWB CBFA CCTA CCZA CCZB
Golf GTI (MK6)	2012-2013	2.0 TSI CAWB CCTA CBFA CCZB
Passat	2012-2015	2.0 TSI CAWB CCTA CCTB CCZA
Passat CC	01.06.2011-2012	2.0 TSI CAWB CBFA CCTA
Scirocco	01.05.2011-2015	2.0 TSI CAWB CCZB
Tiguan	2012-2016	2.0 TSI / 2.0 TFSI


SKODA		Piston pin bolt Φ23mm
Octavia	16.05.2011-2013	2.0 TSI CCZA
Superb	16.05.2011-2013	2.0 TSI CCZA

BeeSpareParts

Overhaul Rebuild Kit STD Φ23mm Piston Pin For VW AUDI SKODA SEAT 2.0 TFSI Engine

SKU 06H 107 065 BH

Regular price: $ 320
