P Pistons Rings Timing Chain Tensioner Crankshaft Connecting Rod Bearing Shell Oil Seals Gasktets
Engine Overhaul Oversize Rebuilding Kit For VW AUDI 1.8 TSI TFSI
BYT BZB CDA CDH EA888 Gen2


Confirm your cylinder bore is 83.01mm ( +0.50mm) / piston pin wrist Φ21mm

Completely solve oil consumption issue


Pistons & Rings OE#
06H 107 065 BK / BF / BS / CP
06H 107 065 F / T
N 905 583 01 (Φ21mm)
06H 198 151 B / C / F / J
Pistons & Rings Spec
- Oversize +0.50 spec
- Cylinder bore Φ 83.01mm
- Piston Diameter Φ 82.975mm
- Pin Diameter Φ 21mm
- Ring thickness 1.2mm / 1.2mm / 2.0mm

Valves OE#
06D 109 601 M
06D 109 611 H / L / T

Bearing Shell OE#
06H 105 561 K
06H 105 591 K
06H 105 701 C / D GLB

Seals & Gasket Kit OE#
06J 103 383 D / 06H 103 483 C
06H 103 483 D / 06H 103 484 A
06F 129 717 D / 06F 253 039 F
1K0 253 115 AB / 06J 117 070 C
06J 115 441 A / 06J 121 119
06H 103 121 J / 06H 103 171 F
06H 103 085 G / 036 109 675 A

Timing Chain Kit OE#
06H 109 467 N / 06H 109 467 AE
06H 109 158 H / 06H 109 158 J
06H 109 469 AQ / 06H 109 469 AH
06H 109 469 AP / 06H 109 469 T
06H 109 509 P / 06H 109 509 Q
06H 109 507 N / 06H 105 209 AQ
06H 115 225 L

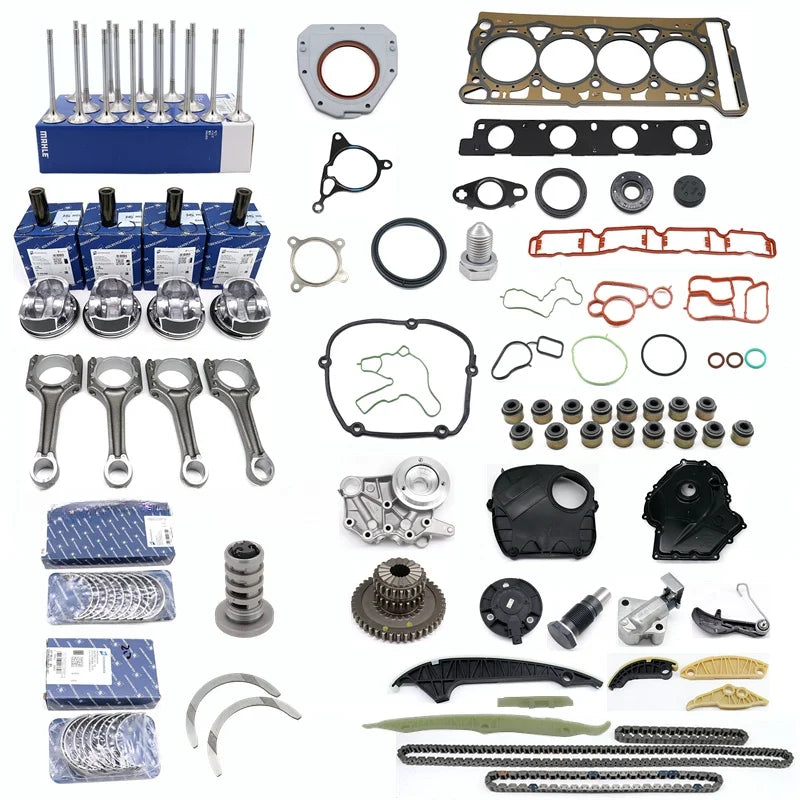

Package includes
Piston & Ring x1 set
Bearing Shell x1 set
Valves x1 set
Seals Kit x1 set
Timing Kit x1 set
Connecting rod x1 set
Head Bolt x1 set



Fit Car Model

Brand & Model    Produce Year    Fit Engine
Audi         Cylinder bore 83.01mm / Piston pin Φ21mm
A3    2008-30.5.2011    1.8 TFSI CDAA
A3    2007-2008    1.8 TFSI BYT
A4    2009-30.5.2011    1.8 TFSI CDHA CDHB
A5    2008-30.5.2011    1.8 TFSI CDHB 118kw (160ps)
TT    2008-30.5.2011    1.8 TFSI CDAA 118kw (160ps)


Volkswagen         Cylinder bore 83.01mm / Piston pin Φ21mm
Passat    2010-2011    1.8 TSI CDAA CDAB
Passat    2008-2011    1.8 TSI BZB CGYA
Passat CC    2009-31.5.2011    1.8 TSI CDAA CDAB
Passat CC    2008-2010    1.8 TSI BZB CGYA
Golf    2009-2011    1.8 TSI CDAA


Skoda         Cylinder bore 83.01mm / Piston pin Φ21mm
Octavia    2008-15.5.2011    1.8 TSI CDAA CDAB
Octaiva    2007-2008    1.8 TSI BZB
Superb    2008-15.5.2011    1.8 TSI CDAA CDAB
Superb    2008-2009    1.8 TSI BZB
