Pistons Rings Timing Chain Tensioner Crankshaft Connecting Rod Bearing Shell Oil Seals Gasktets
Engine Overhaul Reconstruction Kit  For VW AUDI 2.0 TSI TFSI
CAWB CBFA CCTA CCZA CCZB CCZD CAEA CAEB CDNB CDNC
Please confirm your cylinder bore is 83.01mm ( +0.50mm) / piston pin bolt is Φ21mm

If you need  pistons of  standard spec please contact us
Completely solve oil consumption issue


Pistons & Rings OE#                         Pistons & Rings Replacement OE#
06H 107 065 DM                                06H 107 065 AB / AM / BE / CM / DD
N 905 583 01                                       06H 107 099 AM
06H 198 151 B                                   06H 198 151 C / J
MAHLE -  028 PI 00 119 000             06J 198 151 B/C


Pistons & Rings Spec
Oversized Cylinder bore 83.01mm (+0.5mm)
Oversized Piston Diameter 82.975 (+0.5mm)
Pin bolt Diameter  Φ21mm
Ring Thickness 82.5x1.2, 82.5x1.5 , 82.5x2.0
Buckle Size 21x1.5mm


Valves OE#                                        Replacement OE#
06D 109 601 M                                  06D 109 611 L / T
06D 109 611 H


Bearing Shell OE#                             Bearing Shell Replacement OE#
06H 105 561 L                                   06H 105 561 A
06H 105 591 L                                    06H 105 591 A
06H 105 701 D GLB                          06H 105 701 C GLB


Seals & Gasket Kit OE#                           Included Parts
06J 103 383 D /    06H 103 483 C             Valve oil seal
06H 103 483 D /   06H 103 484 A             Cylinder Head Gasket
06F 129 717 D /   06F 253 039 F              Crankshaft oil seal
1K0 253 115 AB / 06J 117 070 C              Camshaft oil seal
06J 115 441 A /    06J 121 119                 Intake &  Exhaust manifold Gasket
06H 103 121 J /    06H 103 171 F             Valve Cover Gasket
06H 103 085 G /   036 109 675 A

Timing Chain Kit OE#                                Included Parts
06H 109 467 N / 06H 109 467 AE              Timing Chain Tensioner
06H 109 158 H / 06H 109 158 J                 Timing Chain (Long)
06H 109 469 AQ / 06H 109 469 AH            Timing Chain (Short)
06H 109 469 AP / 06H 109 469 T               Timing Gear
06H 109 509 P / 06H 109 509 Q                 Timing Guide Set
06H 109 507 N / 06H 105 209 AQ              Oil Pump Chain
06H 115 225 L                                               Oil Pump Chain Tensioner

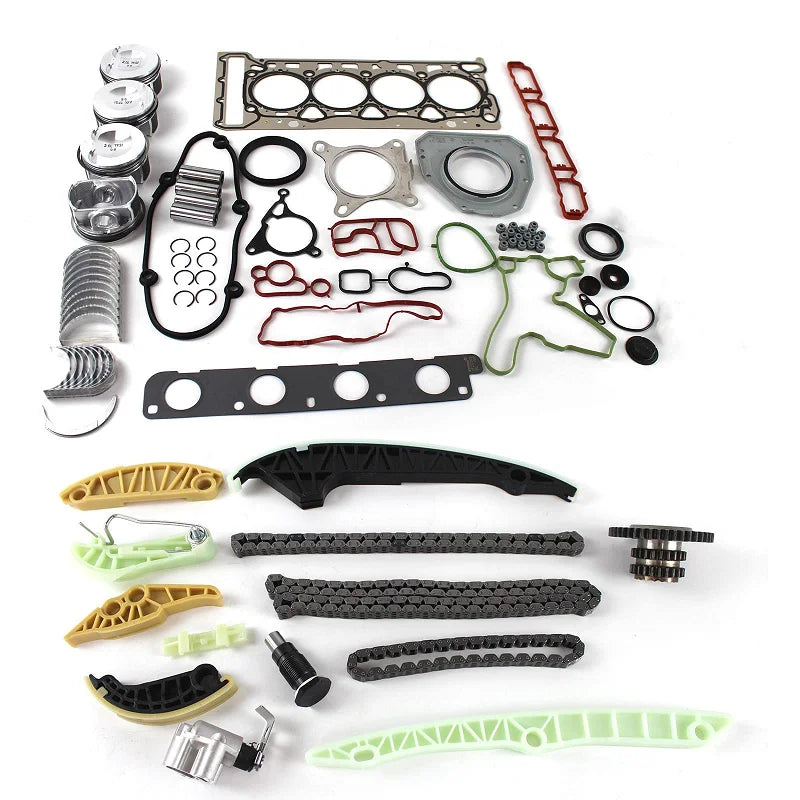

Package includes
Piston & Ring        x4        (Kolbenschmidt)
Bearing Shell        x1 set   (Mahle)
Repair Kit              x1 set   ( VW )
16pcs valves         x1 set
Timing Kit              x1 set
Head Bolt              x10 pcs



Fit Car Model


Brand & Model                 Produce Year          Fit Engine
Audi
Cylinder bore 83.01mm / Piston pin Φ21mm
A3 / A3 Quattro    2008-30.5.2011    2.0 TFSI CAWB CCTA CCZA CBFA
A4 / A4 Quattro    2009-30.5.2011    2.0 TFSI CAEA CAEB CDNB CDNC
A4 Allroad Quattro    2010-30.5.2011    2.0 TFSI CDNC
A5 / A5 Quattro    2008-30.5.2011    2.0 TFSI CAEB CDNB CDNC
Q5    2009-30.5.2011    2.0 TFSI CAEB CDNB CDNC
TT / TT Quattro    2007-2010    2.0 TFSI CCTA CCZA



Volkswagen
Cylinder bore 83.01mm / Piston pin Φ21mm
EOS    2009-30.4.2011    2.0 TSI CCTA CCZA CCZB CBFA
Golf GTI    2008-2011    2.0 TSI CAWB CCTA CBFA CCZB
Jetta     2009-2011    2.0 TSI CCTA CCZA CAWA CAWB CBFA
Passat    2008-2011    2.0 TSI CCTA CCTB CAWB CCZA
Passat CC    2009-30.5.2011     2.0 TSI CCTA CAWB CBFA
Scirocco    2009-30.4.2011    2.0 TSI CAWB CCZB
Tiguan    2008-2011    2.0 TSI / 2.0 TFSI



Skoda
Cylinder bore 83.01mm / Piston pin Φ21mm
Octavia    2009-15.5.2011    2.0 TSI CCZA
Superb    2008-15.5.2011    2.0 TSI CCZA
