Premium Engine Overhaul Rebuild Kit For VW Jetta Audi TT 2.0 TFSI CAWB CAEB CBFA CCZA CCZB CCTA


Please confirm your original piston pin bolt is Φ21mm
If you need  Φ23mm piston pin bolt please contact us b efore buying

Pistons & Rings OE#                         Pistons & Rings Replacement OE#
06H 107 065 AM                                06H 107 065 AB / BE / CM / DD / DM
N 905 583 01 ( Φ21mm)                     06H 107 099 AM                             06H 198 151 B
06H 198 151 C/J


Pistons & Rings Spec
STD 0.00 spec (no fit cylinder expand)
Piston Diameter 82.51mm （3.25" / 3.25in.）
Pin bolt Diameter  Φ 21mm
Ring Thickness 82.5x1.2, 82.5x1.5 , 82.5x2.0
Buckle Size 21x1.5mm


Bearing Shell OE#                             Replacement OE#
06H 105 561 L                                   06H 105 561 A
06H 105 591 L                                    06H 105 591 A
06H 105 701 D GLB                          06H 105 701 C GLB
WHT 000 033 D


Seals & Gasket Kit OE#                           Included Parts
06J 103 383 D /    06H 103 483 C             Valve oil seal
06H 103 483 D /   06H 103 484 A             Cylinder Head Gasket
06F 129 717 D /   06F 253 039 F              Crankshaft oil seal
1K0 253 115 AB / 06J 117 070 C              Camshaft oil seal
06J 115 441 A /    06J 121 119                 Intake &  Exhaust manifold Gasket
06H 103 121 J /    06H 103 171 F             Valve Cover Gasket
06H 103 085 G /   036 109 675 A

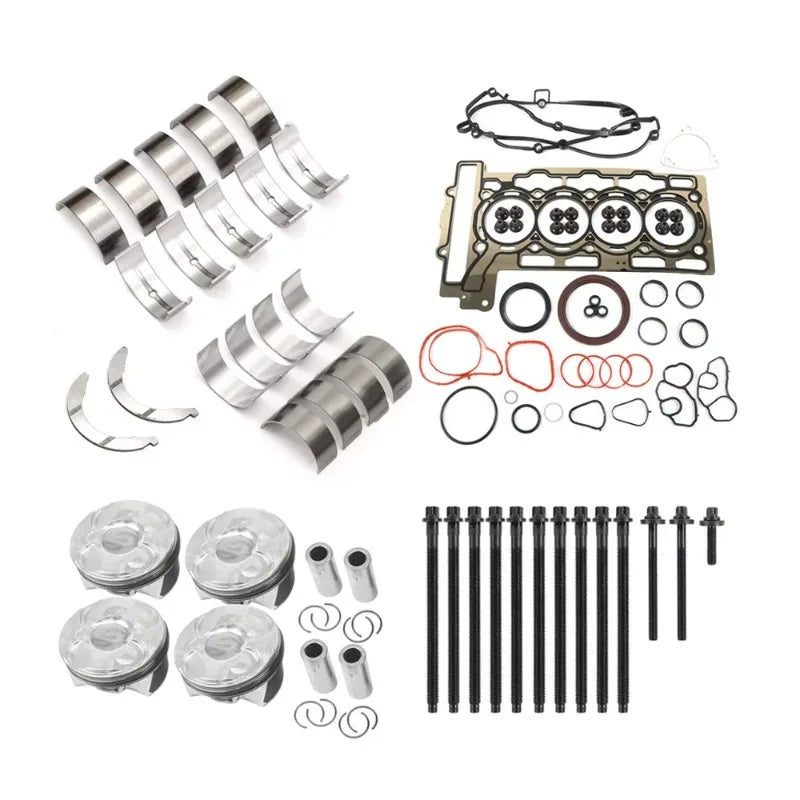

Package includes
Piston & Ring        x4      (KS)
Bearing Shell        x1 set (KS)
Thrust washer       x1 set   (OE)
Repair Kit              x1 set   (MAHLE)
Head Bolt              x10 pcs  (OE)


Fit Car Model


Brand & Model                 Produce Year          Fit Engine
AUDI
Piston pin bolt Φ21mm
A3 / A3 Quattro    2008-30.5.2011    2.0 TFSI CAWB CCTA CCZA CBFA
A4 / A4 Quattro    2009-30.5.2011    2.0 TFSI CAEA CAEB CDNB CDNC
A4 Allroad Quattro    2010-30.5.2011    2.0 TFSI CDNC
A5 / A5 Quattro    2008-30.5.2011    2.0 TFSI CAEB CDNB CDNC
Q5    2009-30.5.2011    2.0 TFSI CAEB CDNB CDNC
TT / TT Quattro    2007-2010    2.0 TFSI CCTA CCZA



VOLKSWAGEN
Piston pin bolt Φ21mm
EOS    2009-30.4.2011    2.0 TSI CCTA CCZA CCZB CBFA
Golf GTI    2008-2011    2.0 TSI CAWB CCTA CBFA CCZB
Jetta     2009-2011    2.0 TSI CCTA CCZA CAWA CAWB CBFA
Passat    2008-2011    2.0 TSI CCTA CCTB CAWB CCZA
Passat CC    2009-30.5.2011     2.0 TSI CCTA CAWB CBFA
Scirocco    2009-30.4.2011    2.0 TSI CAWB CCZB
Tiguan    2008-2011    2.0 TSI / 2.0 TFSI



SKODA
Piston pin bolt Φ21mm
Octavia    2009-15.5.2011    2.0 TSI CCZA
Superb    2008-15.5.2011    2.0 TSI CCZA
