Engine Overhaul Rebuild Kit Pistons Rings Gasket Seals Bearings Timing Chain Tensioner
For Porsche Cayenne 3.6 Audi Q7 VW Touareg Passat CC R36 Phaeton 3.6L FSI VR6
BLV BWS CNNA CDVA CDVB

Pistons & Rings OE#
03H 107 065 N / F / S / AR
03H 107 066  N / F / S / AR
03H 198 151 B / D
N 012 273 1 ( Φ20mm)


Pistons & Rings Spec
- Size = STD (no fit cylinder expand)
- Piston Diameter Φ89.010mm
- Pin wrist diameter Φ20mm

Bearing Shell OE#
071 105 561 A
071 105 591 C
03H 105 701 B / D / E

Seals & Gasket Kit OE#
03H 103 383 K
03H 103 483 C
03H 103 383 H / J

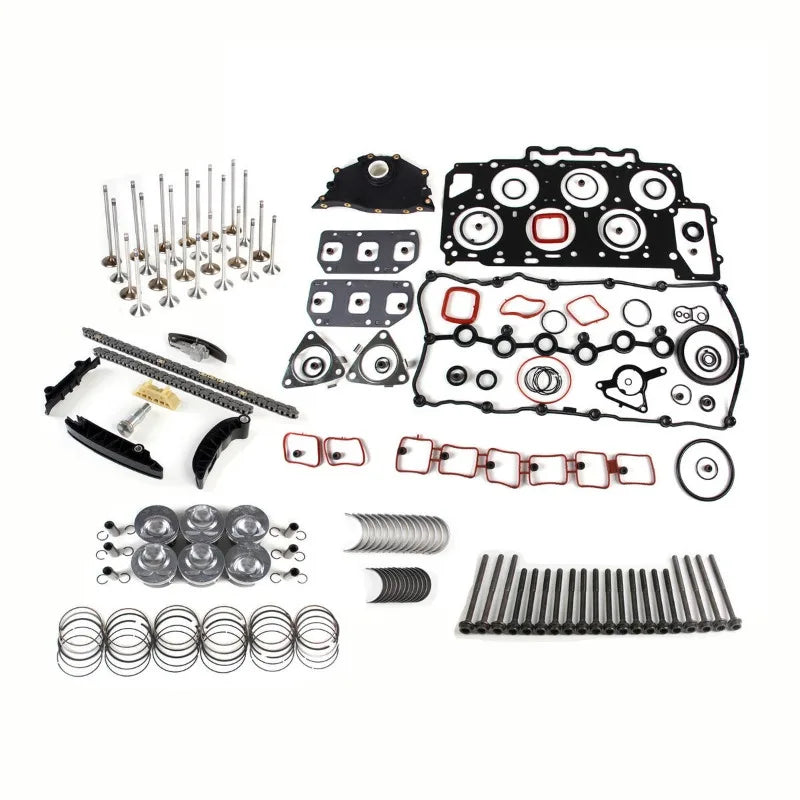

Package includes
Pistons & rings                x1set
Overhaul gakset               x1set
Main & Con rod bearing    x1set
Head Bolt                       x1set

Fit Car Model


Brand & Model                 Year                        Note
Porsche
Φ89.01mm / Pin bolt Φ20mm
Cayenne   2008-2017   3.6L VR6 Naturally aspirated

Volkswagen
Φ89.01mm / Pin bolt Φ20mm
CC   2009-2017   3.6L FSI CNNA 206kw (280ps) / BWS 220kw (300ps)
EOS   2009-2011   3.6L FSI CDVA 191kw (260ps)
Passat / R36   2006-2010   3.6L FSI BLV 206kw (280ps) / BWS 220kw (300ps)
Passat   2011-2015   3.6L FSI CDVB 206kw (280ps) / BWS 220kw (300ps)
Passat CC   2009-2012   3.6L FSI BLV CNNA 206kw (280ps) / BWS 220kw (300ps)
Phaeton   2008-2010   3.6L FSI CHNA CMVA 206kw (280ps)
Touareg (7L)   2006-2010   3.6L FSI BHK 206kw (280ps)
Touareg (7P)   2011-2017   3.6L FSI CMTA 183kw (249ps) / CGRA 206kw (280ps)

Audi
Φ89.01mm / Pin bolt Φ20mm
Q7   2007-2014   3.6L FSI BHK 206kw (280ps)

Skoda
Φ89.01mm / Pin bolt Φ20mm
Superb   2009-2014   3.6L FSI CDVA 191kw (260ps)
