Pistons Rings Timing Chain Tensioner Crankshaft Connecting Rod Bearing Shell Oil Seals Gasktets
Connecting Rods Con Rod Engine Overhaul Reconstruction Kit For VW AUDI 2.0TFSI



Please Make sure your piston is with 23 mm piston pin, STD size and for 2.0T engines before purchasing

Improved strength and completely solved oil consumption burn problem .


Pistons & Rings OE#                         Pistons & Rings Replacement OE#
06H 107 065 DM                                06H 107 065 BH / CM / DD / DG / DJ / DN
N 911 766 01 ( Φ23mm)                      06H 107 099 CA / BQ / BJ / BP
06H 198 151 B                                   06H 198 151 C / J
                                                          06J 198 151 B/C


Pistons & Rings Spec
STD 0.00 spec (no fit cylinder expand)
Piston Diameter 82.5mm
Pin bolt Diameter  Φ23mm
Ring Thickness 82.5x1.2, 82.5x1.2 , 82.5x2.0
Buckle Size 23x1.5mm



Con Rod OE#                                    Con Rod replacement OE#
06H 198 401 D  ( Φ23mm)                  06H 198 401 A
                                                             06J 198 401 B


Valves OE#                                        Replacement OE#
06D 109 601 M                                  06D 109 611 L / T
06D 109 611 H


Bearing Shell OE#                             Bearing Shell Replacement OE#
06H 105 561 L                                   06H 105 561 A
06H 105 591 L                                    06H 105 591 A
06H 105 701 D GLB                          06H 105 701 C GLB



Seals & Gasket Kit OE#                           Included Parts
06J 103 383 D /    06H 103 483 C             Valve oil seal
06H 103 483 D /   06H 103 484 A             Cylinder Head Gasket
06F 129 717 D /   06F 253 039 F              Crankshaft oil seal
1K0 253 115 AB / 06J 117 070 C              Camshaft oil seal
06J 115 441 A /    06J 121 119                 Intake &  Exhaust manifold Gasket
06H 103 121 J /    06H 103 171 F             Valve Cover Gasket
06H 103 085 G /   036 109 675 A


Timing Chain Kit OE#                                Included Parts
06H 109 467 N / 06H 109 467 AE              Timing Chain Tensioner
06H 109 158 H / 06H 109 158 J                 Timing Chain (Long)
06H 109 469 AQ / 06H 109 469 AH            Timing Chain (Short)
06H 109 469 AP / 06H 109 469 T               Timing Gear
06H 109 509 P / 06H 109 509 Q                 Timing Guide Set
06H 109 507 N / 06H 105 209 AQ              Oil Pump Chain
06H 115 225 L                                               Oil Pump Chain Tensioner

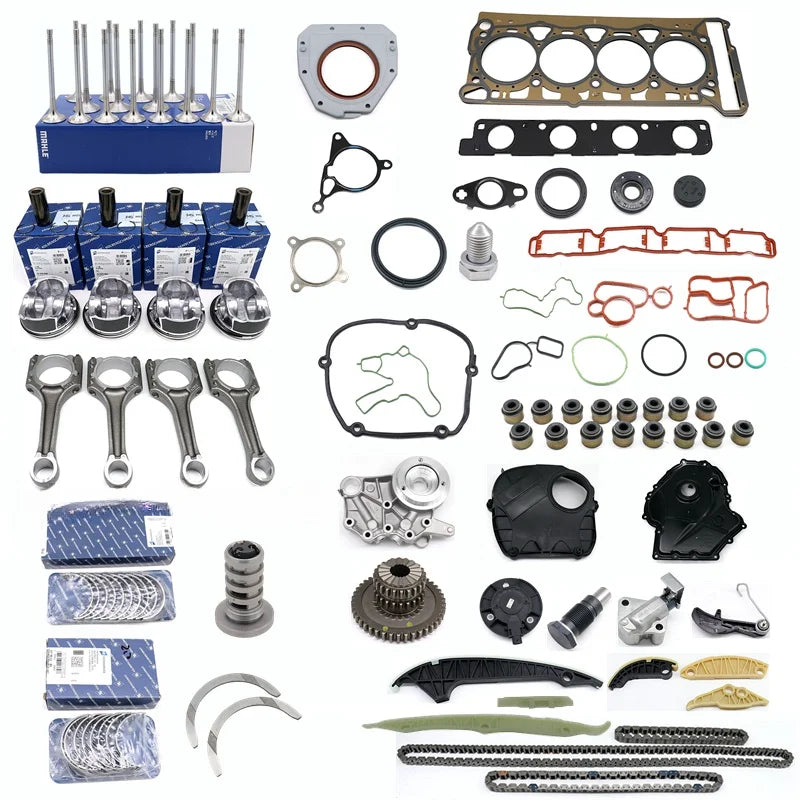

Package includes
Piston & Ring       x4
Con Rod               x4
Bearing Shell        x1 set
16pcs valves         x1 set
Repair Kit              x1 set
Timing Kit              x1 set



Fit Car Model


Brand & Model                 Produce Year                 Fit Engine
Audi
EA888 Gen2 2.0 TFSI
A3 / A3 Quattro    2008-2013    2.0 TFSI CAWB CBFA CCTA CCZA
A4 / A4 Quattro    2009-2015    2.0 TFSI CAEA CAEB CDNB CDNC CFKA CPMA CPMB
A4 Allroad Quattro    2010-2015    2.0 TFSI CDNC CPMA CPMB
A5 / A5 Quattro    2008-2015    2.0 TFSI CAEB CAED CDNB CDNC CPMA CPMB
A6    2012-2014    2.0 TFSI CAEB CAED CDNB CHJA
Q5    2008-2015    2.0 TFSI CAEB CDNB CDNC CHJA
TT / TT Quattro    2008-2014    2.0 TFSI CCTA CCZA CESA CETA



Volkswagen
EA888 Gen2 2.0 TSI
EOS    2009-2016    2.0 TSI CCTA CCZA CCZB CBFA
CC    2012-2017    2.0 TSI CAWB CBFA CCTA CCZA CCZB
Golf GTI     2008-2013    2.0 TSI CAWB CCTA CBFA CCZB
Jetta GLI    2009-2011    2.0 TSI CAWA CAWB CBFA CCTA CCZA
Passat    2009-2015    2.0 TSI CAWB CCTA CCTB CCZA
Passat CC    2009-2012    2.0 TSI CAWB CBFA CCTA
Scirocco    2009-2015    2.0 TSI CAWB CCZB
Tiguan    2008-2016    2.0 TSI / 2.0 TFSI



Seat
EA888 Gen2 2.0 TSI
Leon / FR    2009-2013    2.0 TSI CCZB



Skoda
EA888 Gen2 2.0 TSI
Octavia RS    2009-2013    2.0 TSI CCZA
Superb    2008-2013    2.0 TSI CCZA
