Pistons Rings Timing Chain Tensioner Crankshaft Connecting Rod Bearing Shell Oil Seals Gasktets
Connecting Rods Con Rod Engine Overhaul Reconstruction Kit For VW AUDI 1.8 TSI TFSI


Improved strength and completely solved oil consumption burn problem .



Pistons & Rings OE# Pistons & Rings Replacement OE#
06H 107 065 DF 06H 107 065 BK / BF / BS / CP / DL
N 911 766 01 ( Φ23mm) 06H 107 065 T / F
06H 198 151 B 06H 198 151 C / J
06J 198 151 B / C


Pistons & Rings Spec
STD 0.00 spec (no fit cylinder expand)
Piston Diameter 82.5mm
Pin bolt Diameter Φ23mm
Ring Thickness 82.5x1.2, 82.5x1.2 , 82.5x2.0
Buckle Size 23x1.5mm


Con Rod OE# Con Rod replacement OE#
06J 198 401 H ( Φ23mm) 06J 198 401 K


Valves OE# Replacement OE#
06D 109 601 M 06D 109 611 L / T
06D 109 611 H


Bearing Shell OE# Bearing Shell Replacement OE#
06H 105 561 K 06H 105 561 C / M
06H 105 591 K 06H 105 591 C / M
06H 105 701 D GLB 06H 105 701 C GLB



Seals & Gasket Kit OE# Included Parts
06J 103 383 D / 06H 103 483 C Valve oil seal
06H 103 483 D / 06H 103 484 A Cylinder Head Gasket
06F 129 717 D / 06F 253 039 F Crankshaft oil seal
1K0 253 115 AB / 06J 117 070 C Camshaft oil seal
06J 115 441 A / 06J 121 119 Intake & Exhaust manifold Gasket
06H 103 121 J / 06H 103 171 F Valve Cover Gasket
06H 103 085 G / 036 109 675 A



Timing Chain Kit OE# Included Parts
06H 109 467 N / 06H 109 467 AE Timing Chain Tensioner
06H 109 158 H / 06H 109 158 J Timing Chain (Long)
06H 109 469 AQ / 06H 109 469 AH Timing Chain (Short)
06H 109 469 AP / 06H 109 469 T Timing Gear
06H 109 509 P / 06H 109 509 Q Timing Guide Set
06H 109 507 N / 06H 105 209 AQ Oil Pump Chain
06H 115 225 L Oil Pump Chain Tensioner

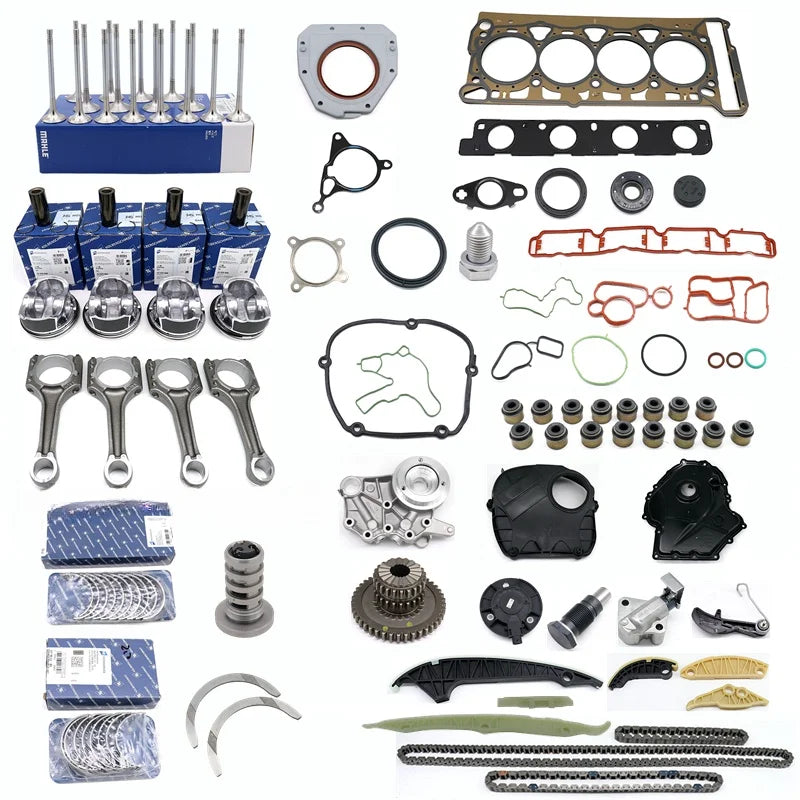

Package includes
Piston & Ring x4
Con Rod x4
Bearing Shell x1 set
16pcs valves x1 set
Repair Kit x1 set
Timing Kit x1 set
Head Bolt x10 pcs



Fit Car Model

Brand & Model    Produce Year    Fit Engine
Audi         EA888 Gen2 1.8 TFSI
A3    2007-2013    1.8 TFSI BYT CDAA
A4    2009-2012    1.8 TFSI CABA CABB CDHA CDHB
A5    2009-2012    1.8 TFSI CDHB
TT    2010-2014    1.8 TFSI CDAA






Volkswagen
EA888 Gen2 1.8 TSI
CC    2012-2017    1.8 TSI CDAA CDAB
Passat    2008-2011    1.8 TSI BZB CDAA CDAB CGYA
Passat CC    2009-2012    1.8 TSI BZB CDAA CDAB CGYA
Golf    2009-2011    1.8 TSI CDAA
Sharan    2012-2015    1.8 TSI CDAA






Seat
EA888 Gen2 1.8 TSI
Leon / FR    2007-2013    1.8 TSI BZB CDAA



Skoda
EA888 Gen2 1.8 TSI
Octavia    2007-2013    1.8 TSI BZB CDAA CDAB
Superb    2008-2015    1.8 TSI BZB CDAA CDAB
