Engine Overhaul Repair Rebuilding Kit Pistons Rings Timing Chain Tensioner
Crankshaft Connecting Rod Bearing Shell Oil Seals Gasktets For
VW Golf GTI AUDI A3 A4 A5 Q5 TT 2.0 TFSI TSI EA888 Gen2
CAW CBF CCT CCZ CAE CDN CPM
It's oversized version 83.01mm (+0.50mm) ,used for expanded cylinder

Completely solve oil consumption issue

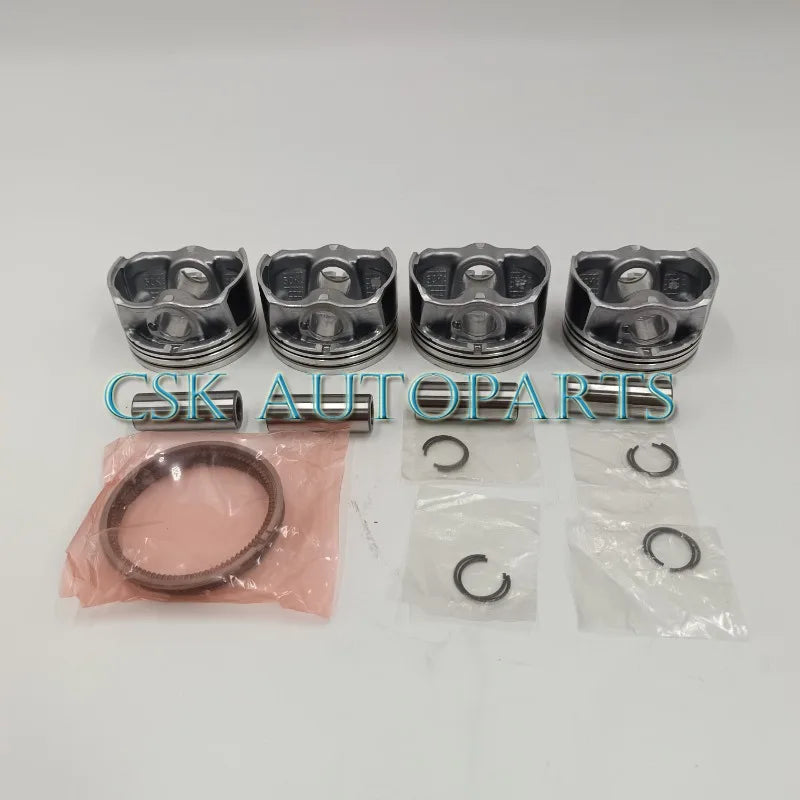

Pistons & Rings OE#
06L 107 065 E / K / P / AG / AR / BR
06K 107 065 D / F / K / T / AB / AD / AR  / BL / CG
06H 107 065 BH / CM / DD / DG / DJ / DN / DM
N 911 766 01 (Φ23mm)
06H 198 151 B / C / F / J
Pistons & Rings Spec
- Oversize +0.50 spec
- Cylinder bore  Φ 83.01mm
-  Piston Diameter  Φ 82.975mm
- Pin Diameter  Φ 23mm
- Ring thickness 1.2mm / 1.2mm / 2.0mm

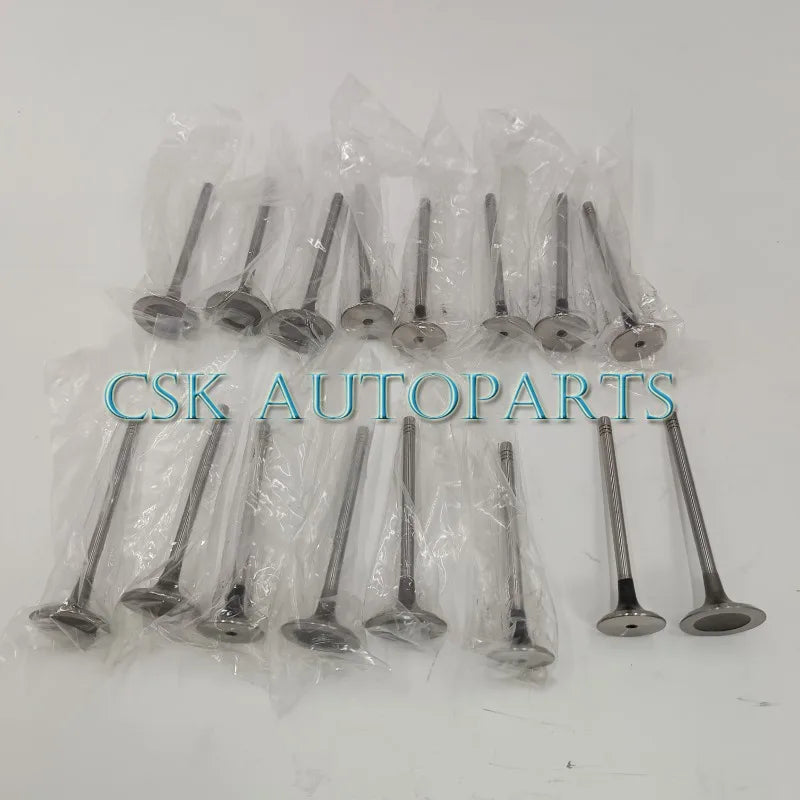

Valves OE#
06D 109 601 M
06D 109 611 H / L / T

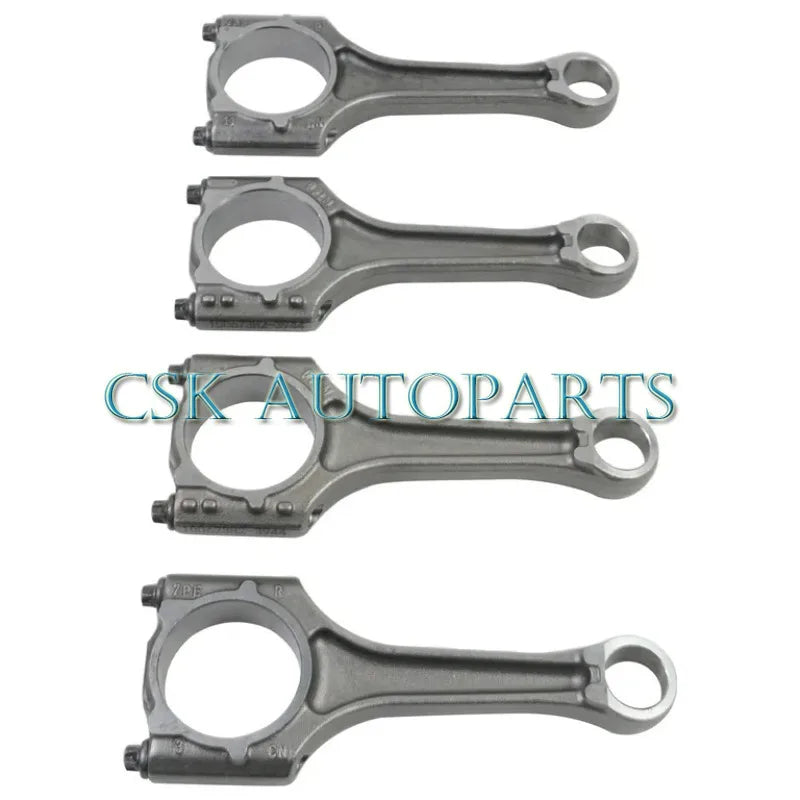

Con Rod OE#
06H 198 401 D  ( Φ23mm)

Bearing Shell OE#
06H 105 561 A / L
06H 105 591 A / L
06H 105 701 C / D GLB

Seals & Gasket Kit OE#
06J 103 383 D /    06H 103 483 C
06H 103 483 D /   06H 103 484 A
06F 129 717 D /   06F 253 039 F
1K0 253 115 AB / 06J 117 070 C
06J 115 441 A /    06J 121 119
06H 103 121 J /    06H 103 171 F
06H 103 085 G /   036 109 675 A

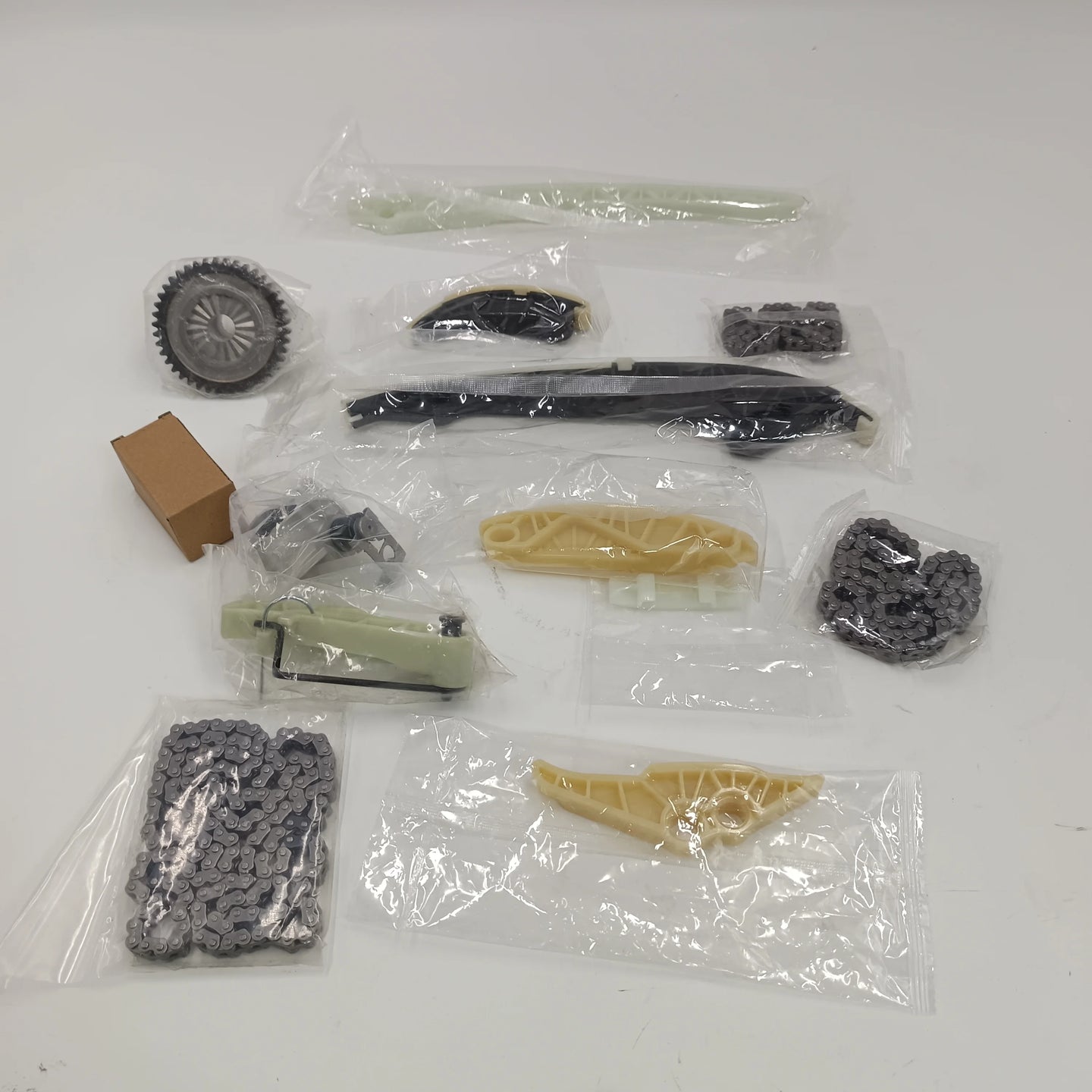

Timing Chain Kit OE#
06H 109 467 N / 06H 109 467 AE
06H 109 158 H / 06H 109 158 J
06H 109 469 AQ / 06H 109 469 AH
06H 109 469 AP / 06H 109 469 T
06H 109 509 P / 06H 109 509 Q
06H 109 507 N / 06H 105 209 AQ
06H 115 225 L

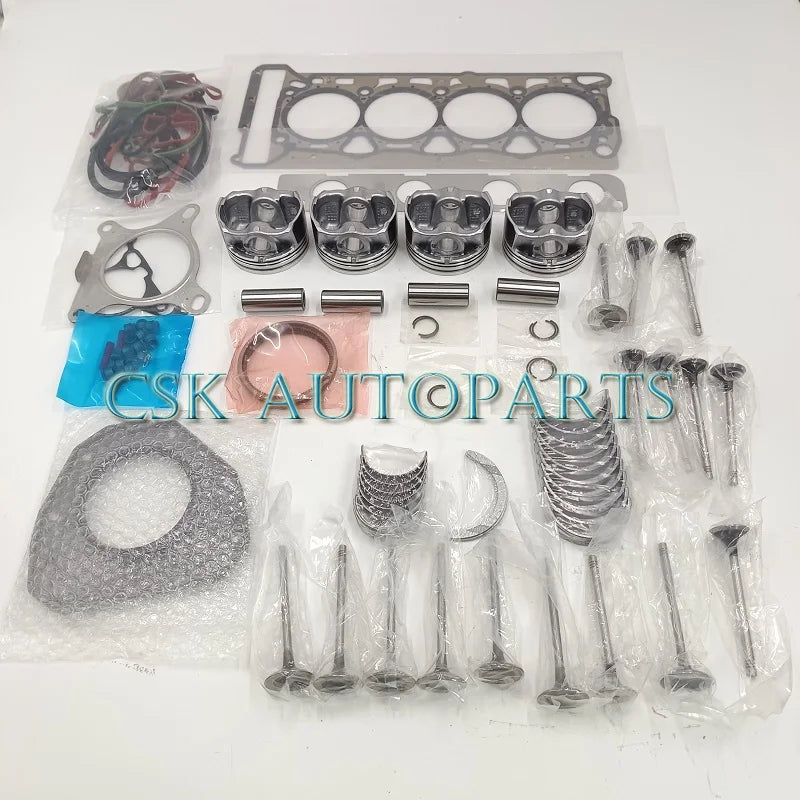

Package includes
Piston & Ring      x1 set
Bearing Shell       x1 set
Valves                x1 set
Seals Kit             x1 set
Timing Kit           x1 set
Con Rod             X1 set

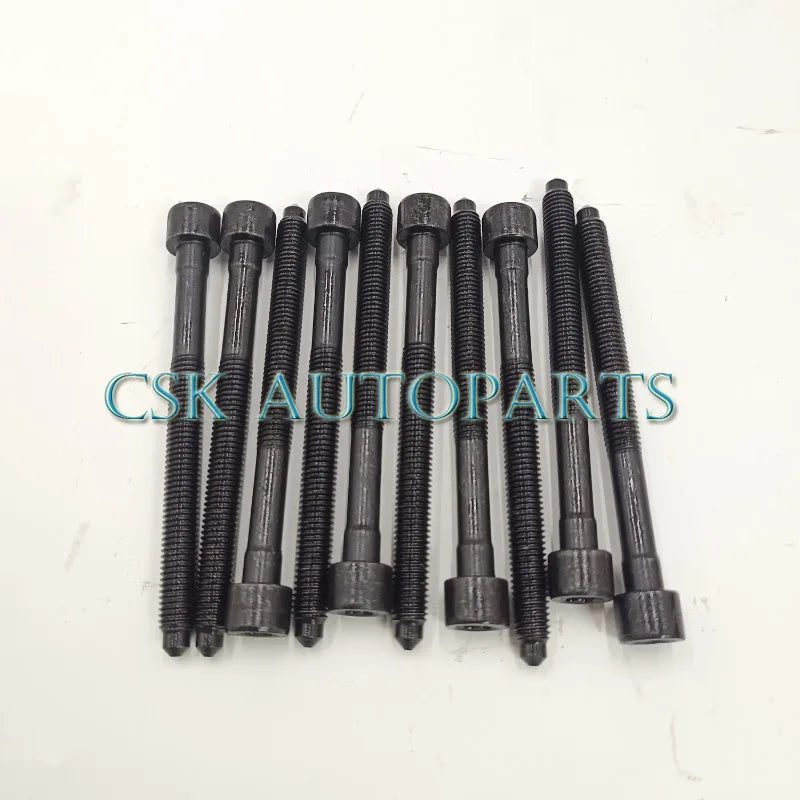

Head Bolt           x1 set



Fit Car Model


Brand & Model             Produce Year          Fit Engine
Audi
Cylinder bore oversized Φ83mm
A3 (8P)    2008-2013    2.0 TFSI CAWB CBFA CCTA CCZA
A4 (B8)    2009-2015    2.0 TFSI CAEA CAEB CDNB CDNC CFKA CPMA CPMB
A5 (B8)    2008-2015    2.0 TFSI CAEB CAED CDNB CDNC CPMA CPMB
A6 (C7)    2012-2014    2.0 TFSI CAEB CAED CDNB CHJA
Q5    2008-2015    2.0 TFSI CAEB CDNB CDNC CHJA
TT    2008-2014    2.0 TFSI CCTA CCZA CESA CETA



Volkswagen
Cylinder bore oversized Φ83mm
CC    2012-2017    2.0 TSI CAWB CBFA CCTA CCZA CCZB
EOS    2009-2016    2.0 TSI CCTA CCZA CCZB CBFA
Golf GTI (MK6)    2009-2013    2.0 TSI CAWB CCTA CBFA CCZB
Jetta GLI    2009-2011    2.0 TSI CAWA CAWB CBFA CCTA CCZA
Passat    2009-2015    2.0 TSI CAWB CCTA CCTB CCZA
Passat CC    2009-2012    2.0 TSI CAWB CBFA CCTA
Scirocco    2008-2014    2.0 TSI CAWB CCZB
Tiguan    2008-2016    2.0 TSI CAWB CCTA CCZC CCZD



Skoda
Cylinder bore oversized Φ83mm
Octavia RS    2009-2013    2.0 TSI CCZA
Superb    2008-2013    2.0 TSI CCZA



Seat
Cylinder bore oversized Φ83mm
Leon     2009-2013    2.0 TSI CCZB
