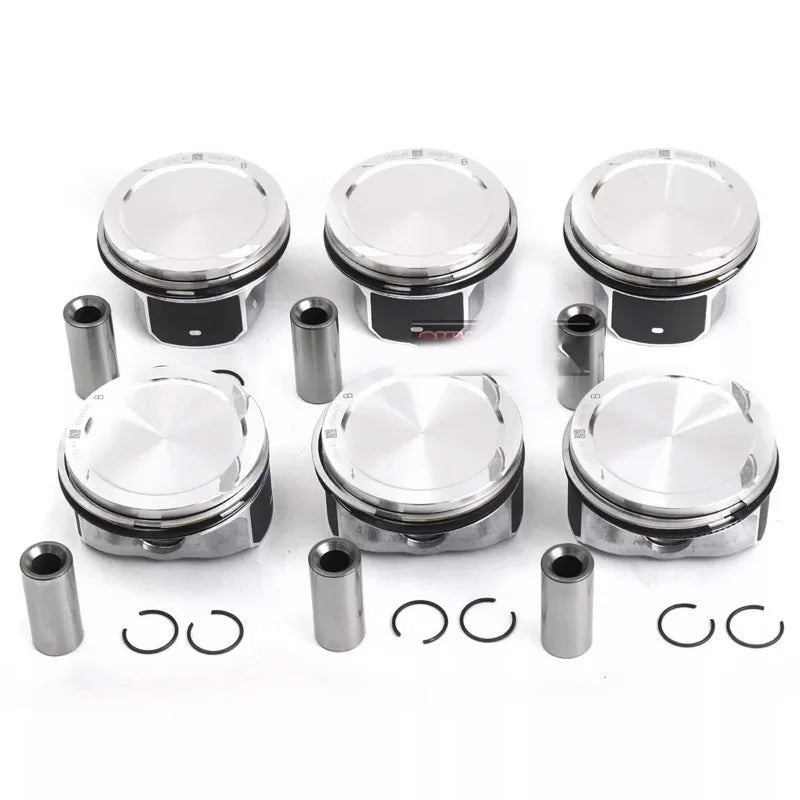

6x Φ89mm Pistons Rings  Φ20mm Pin Wrist  Set
For Porsche Cayenne 3.6 AUDI Q7 VW Touareg  Passat CC R36  Phaeton  3.6L FSI VR6
BLV BWS CNNA CDVA CDVB

Confirmed your Original Piston pin bolt is Φ20mm


OE#
03H 107 065 N  (1,3,5 Cyl.)
03H 107 066 N  (2,4,6 Cyl.)
03H 198 151 B
N 012 273 1 (Φ20mm)

Replacement OE#
03H 107 065 F / S / AR
03H 107 066 F / S / AR
03H 198 151 D

MAHLE - 89L75
MAHLE - 028 24 00 / 028 25 00

Size
- Cylinder bore Φ89.010mm ( STD spec )
- Piston pin wrist Φ20mm / Length 52mm
- Ring thickness 1st 1.2mm / 2nd 1.5mm / 3rd / 2.0mm

Package includes
Piston & Ring Assembly  x6
Fit Car Model


Brand & Model                  Year                         Note
PORSCHE
Cylinder bore 89.5mm (oversized +0.5mm)
Cayenne    2008-2017    3.6L VR6 Naturally aspirated



VOLKSWAGEN
Cylinder bore 89.5mm (oversized +0.5mm)
CC    2012-2017    3.6L FSI CNNA 206kw (280ps) / BWS 220kw (300ps)
EOS    2009-2011    3.6L FSI CDVA 191kw (260ps)
Passat / R36    2006-2010    3.6L FSI BLV 206kw (280ps) / BWS 220kw (300ps)
Passat    2011-2015    3.6L FSI CDVB 206kw (280ps) / BWS 220kw (300ps)
Passat CC    2009-2012    3.6L FSI BLV CNNA 206kw (280ps) / BWS 220kw (300ps)
Phaeton    2009-2016    3.6L FSI CHNA CMVA 206kw (280ps)
Touareg (7L)    2006-2010    3.6L FSI BHK 206kw (280ps)
Touareg (7P)    2011-2015    3.6L FSI CMTA 183kw (249ps) / CGRA 206kw (280ps)



Audi
Cylinder bore 89.5mm (oversized +0.5mm)
Q7    2007-2014    3.6L FSI BHK 206kw (280ps)



SKODA
Cylinder bore 89.5mm (oversized +0.5mm)
Superb    2009-2014    3.6L FSI CDVA 191kw (260ps)
