Model No.
|
GSCS060HY3
|
GSCS90HY3
|
GSCS120HY3
|
||
|
Input voltage
|
Three-phase 400VAC±15％
|
|
|
||
|
Output power
|
DC60kW+AC44kW
|
DC90KW+AC44kW
|
DC120KW+AC44kW
|
||
|
Output voltage
|
200-750V/150-1000V DC
|
|
|
||
|
Output current
|
Max. 200A
|
Max. 300A
|
Max. 400A
|
||
|
Constant power range
|
300-750V/300-1000V
|
|
|
||
|
Operating Frequency
|
45~65Hz
|
|
|
||
|
Efficiency
|
≥95%
|
|
|
||
|
IP Code
|
IP55
|
|
|
||
|
Cooling method
|
Forced air-cooling
|
|
|
||
|
Operating Temperature
|
-30℃ to +55℃
|
|
|
||
|
Storage Temperature
|
-40℃ to +70℃
|
|
|
||
|
Charging Gun Cable Length
|
5m/7m
|
|
|
||
|
Overall dimensions
|
1600*687*477mm
|
|
|
||
|
Weight
|
Approx. 300kG~400kG
|
|
|
||
Hope Backhoe Parts

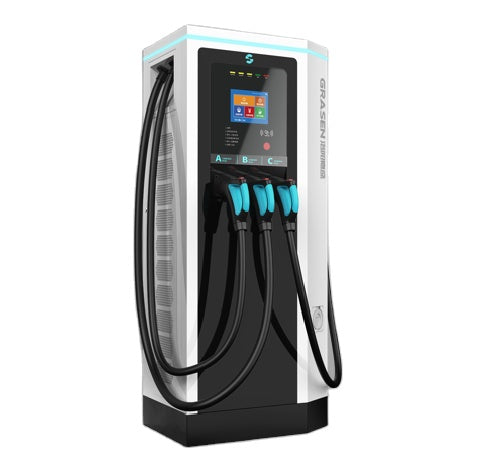

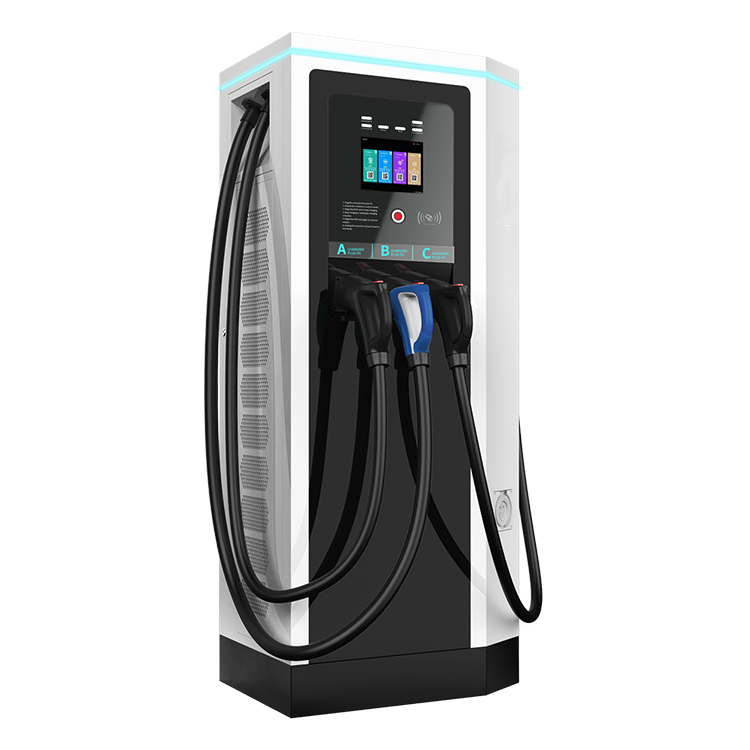

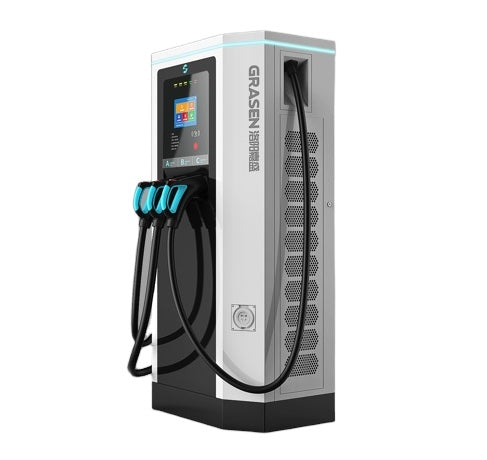

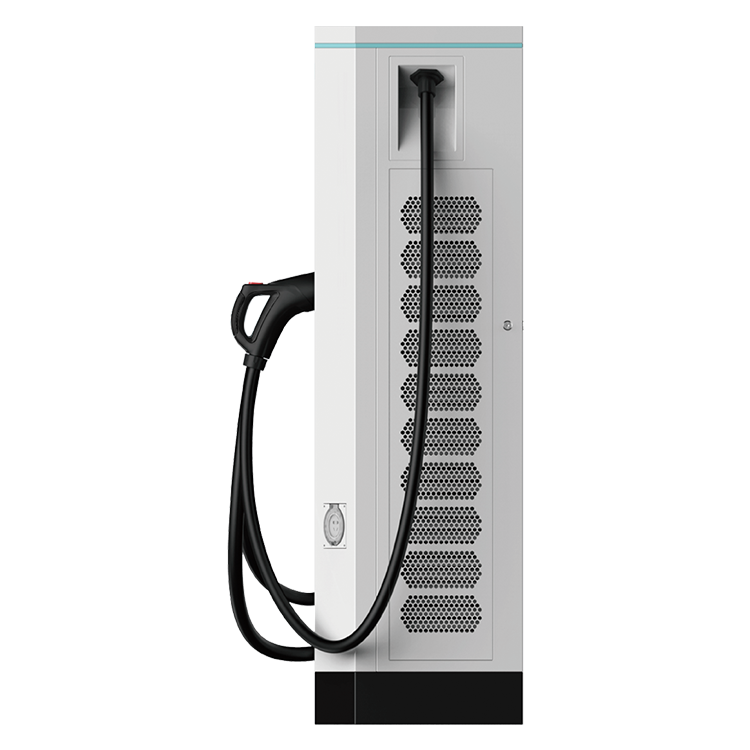

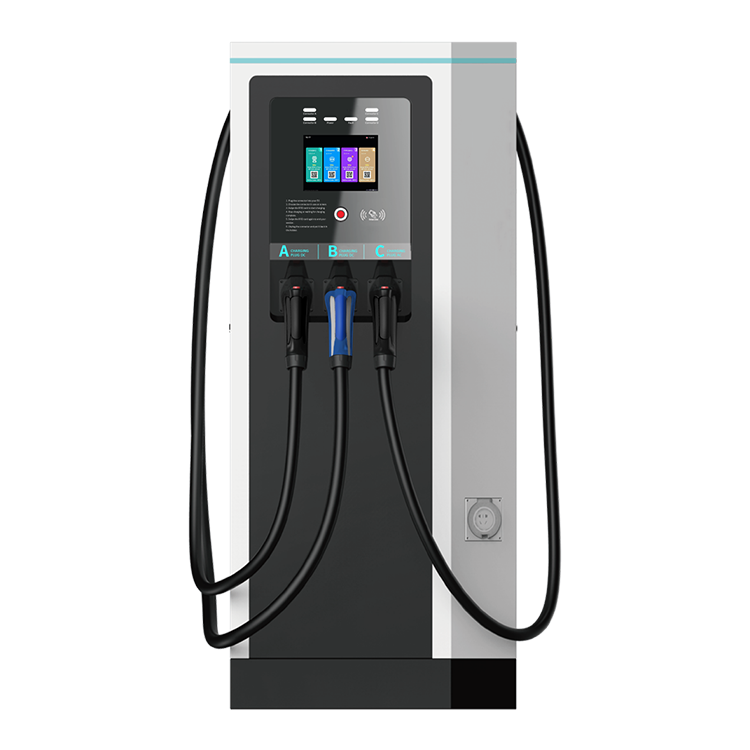

New Energy Charging Pile integrated AC 44kW+DC 60kw 200A CCS Chademo Type2 CE Certified electric vehicle car charging station
- Regular price
- $ 17,000
|
Model No.
|
GSCS060HY3
|
GSCS90HY3
|
GSCS120HY3
|
||
|
Input voltage
|
Three-phase 400VAC±15％
|
|
|
||
|
Output power
|
DC60kW+AC44kW
|
DC90KW+AC44kW
|
DC120KW+AC44kW
|
||
|
Output voltage
|
200-750V/150-1000V DC
|
|
|
||
|
Output current
|
Max. 200A
|
Max. 300A
|
Max. 400A
|
||
|
Constant power range
|
300-750V/300-1000V
|
|
|
||
|
Operating Frequency
|
45~65Hz
|
|
|
||
|
Efficiency
|
≥95%
|
|
|
||
|
IP Code
|
IP55
|
|
|
||
|
Cooling method
|
Forced air-cooling
|
|
|
||
|
Operating Temperature
|
-30℃ to +55℃
|
|
|
||
|
Storage Temperature
|
-40℃ to +70℃
|
|
|
||
|
Charging Gun Cable Length
|
5m/7m
|
|
|
||
|
Overall dimensions
|
1600*687*477mm
|
|
|
||
|
Weight
|
Approx. 300kG~400kG
|
|
|
||
- Regular price
- $ 17,000
