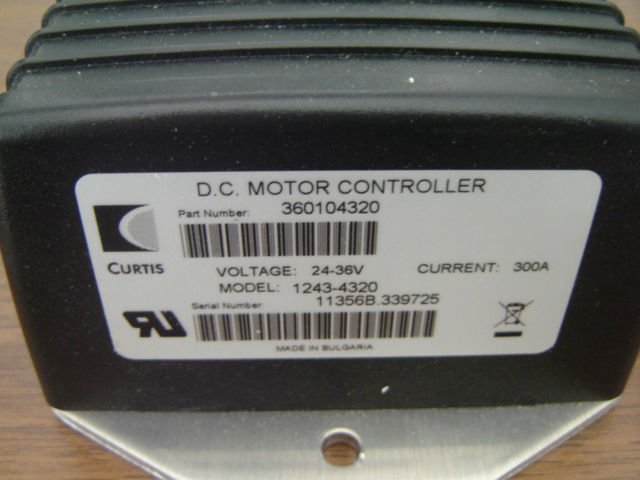

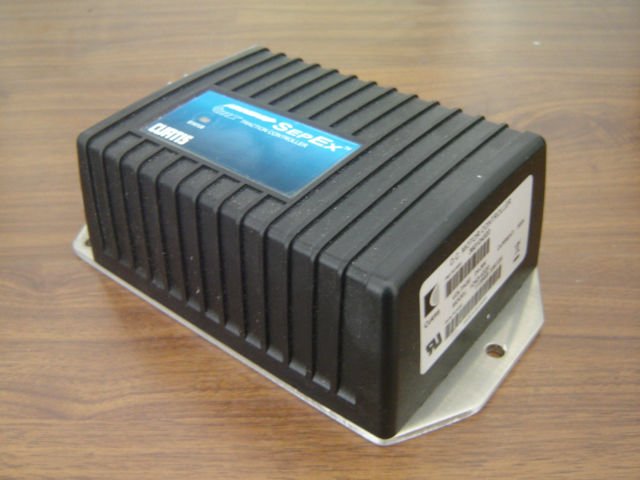

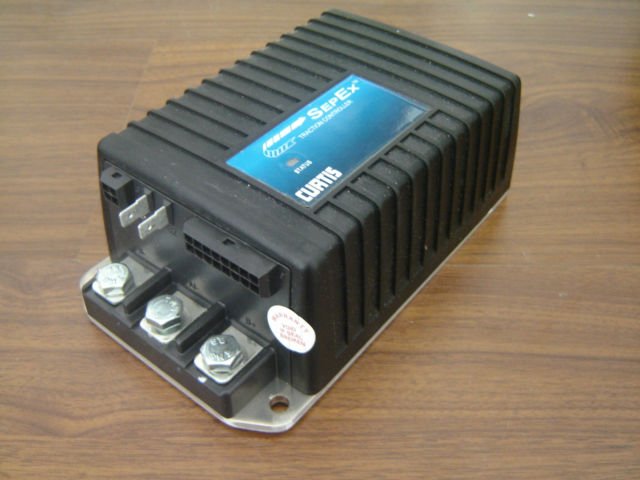

Fits Curtis 1243-4320 CURTIS PMC 1243 4320 24V 36V 300A DC SepEx MOTOR CONTROLLER FOR ELECTRIC FORKLIFT STACKER PALLET GOLF

Nominal input voltage:24V/36V(Optional)
Current rating 2minute:300A

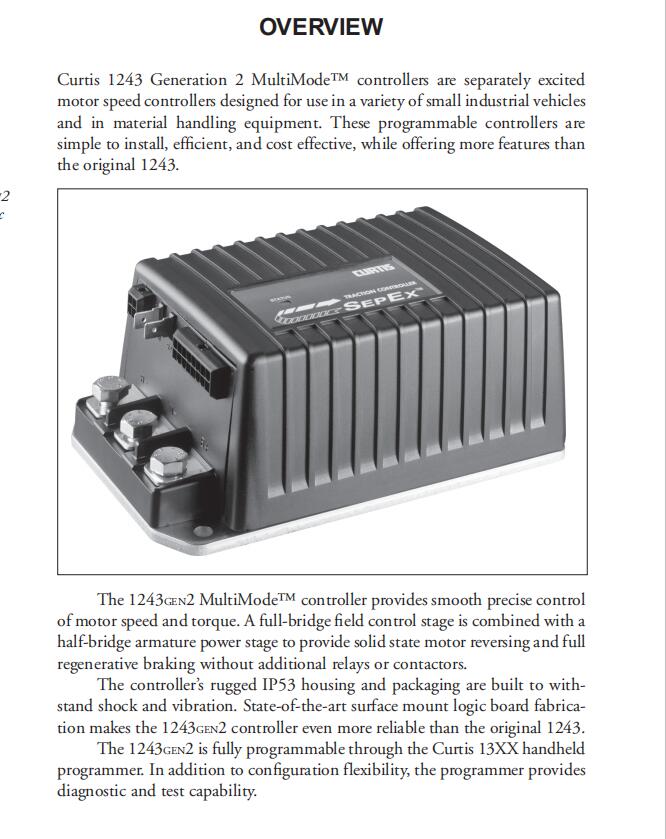

General Description:
Curtis PMC 12XX series controllers  are power MOSFET electronic motor speed controllers designed to provide smooth, silent, efficient and cost effective speed, torque and braking control.

Applications:
Curtis PMC MOSFET motor speed controllers are ideal for a variety of electric vehicle applications, including industrial trucks, personnel carriers, material handling vehicles, tow tractors, walkie and small forklift applications, scrubbers, sweepers, scissors-lift and boom trucks, etc.

Specifications:

• Frequency of Operation:16 kHz

• Standby Current:less than 20 mA

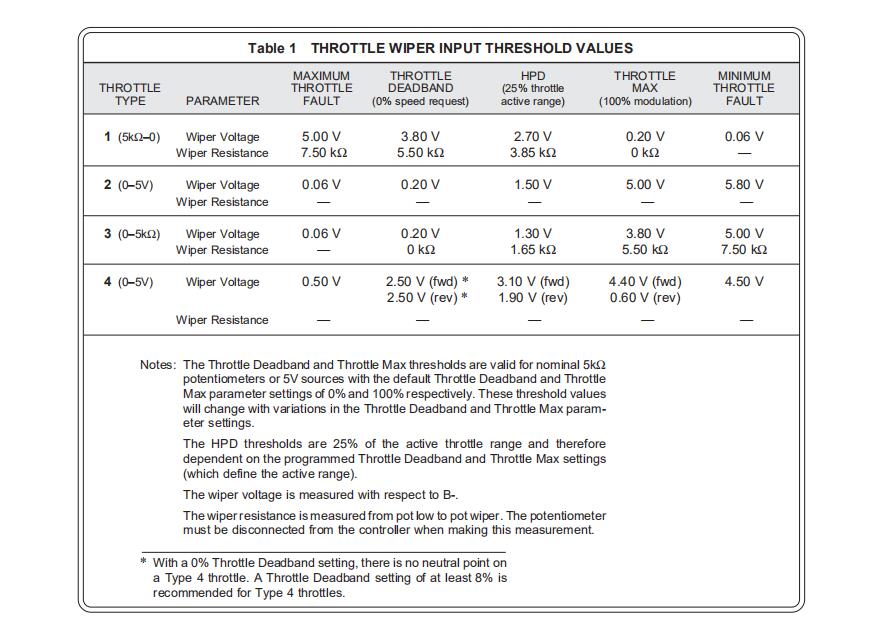

• Standard Throttle Input:0-5V (others available)

• Weight: 1.45kg

• Full Power Operating Temperature Range:-25°Celsius to 75°Celsius (controller temperature)

•
