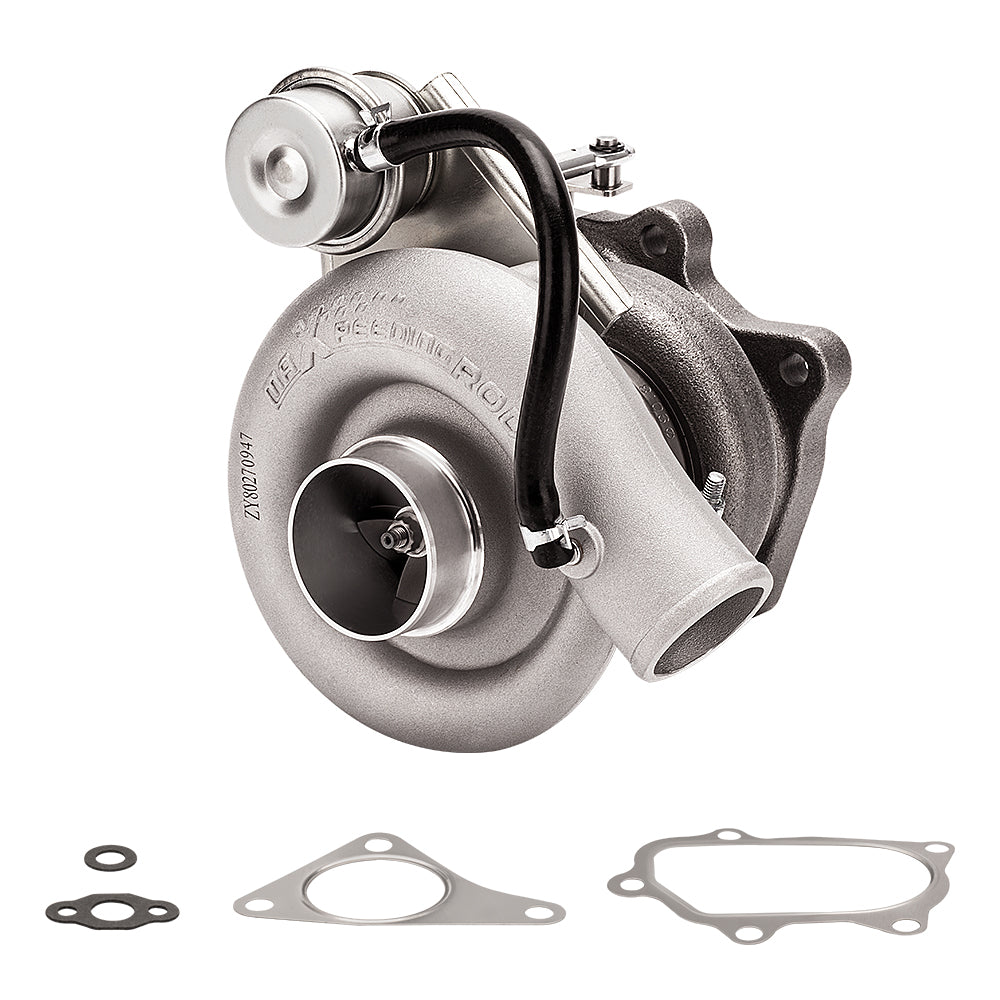

Turbo TD05 20G Turbocharger For Subaru Impreza WRX STI EJ20 EJ25 420HP Water+Oil Cooled 02-06


Application
Direct bolt on all for Subaru Impreza WRX / STI EJ20 EJ25 engine 2002-2006


Specification

Turbine Trim: 76.4
Turbine Inducer Diameter:56mm
Turbine Exducer Diameter: 48.96mm
Compressor Trim: 59.8
Compressor Inducer Diameter: 52.6mm
Compressor Exducer Diameter:67.9mm
Bearing: Wet Float/Journal Bearing
Cooling Type: Water + Oil
Warranty: 2 Years for any manufacture defects
Turbine housing: 7cm2
Compressor housing inlet OD: 57.8mm （about 2.25 inch）
Oil feed: M10*1.5
Oil drain: M16.8

Oil drain screw：2*M6*1.0
Water in/out: M14*1.5


Features:

*Product Material
1. Turbine housing ：Ductile iron QT450-10 - temperature resistant up to 700℃
2. Steel turbine wheel：K418 alloy -  high  oxidation stability and resistance  up  to 900℃
3. Compressor housing：ZL104 aluminum with lightweight
4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance

*Product Performance
1. Cost-effective turbo increase 20-40% power for your car
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
4. Built for durability and strength

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS  VSR3
2.  Advanced Actuator Tester/Programmer


Notice

* Please check the specifications carefully before buying. If you are not sure about these information, please feel free to contact us.
* All WRX Wagon engines and automatic sedan engines came with a TD04,all manual WRX sedans including STI versions had a TD05. If your old turbo is TD04 one, some modification is required to fit the new turbo.
* It's a direct bolt-on so nothing else would be required. But, to get it's full potential you'd need some additional upgrades. Intake, exhaust, more fuel, etc. it will also require custom tuning.
* Professional installation is highly recommended(No Instruction Included)
