For Audi A5 A6 A7 A8 S4 S5 Q5 Q7 VW Touareg 3.0 TSI TFSI
Compatible VW Audi 3.0 TFSI V6 2995cc 183Cu Supercharged
Confirmed your Original Piston pin bolt is Φ22mm
Pistons & Rings OE# Pistons & Rings Replacement OE# Pistons & Rings Spec
06E 107 065 DM (4-6 Cyl.) 06E 107 065 CJ / CN - Cylinder bore Φ84.51mm ( STD spec )
06E 107 066 DM (1-3 Cyl.) 06E 107 066 CJ / CN - Piston diameter Φ84.475mm
06E 198 151 L 06E 198 151 J / K / Q - Piston pin wrist Φ22mm / Length 59mm
N 012 278 1 ( Φ22mm) MAHLE - 028 PI 00124 000 / 028 PI 00125 000 - Ring thickness 1st 1.2mm / 2nd 1.5mm / 3rd / 2.0mm
Seals & Gasket Kit OE#
06E 103 148 AG
06E 103 149 AG
06E 253 039 C
06E 103 483 P
06E 103 484 N
06C 115 189 B
06E 103 153 E

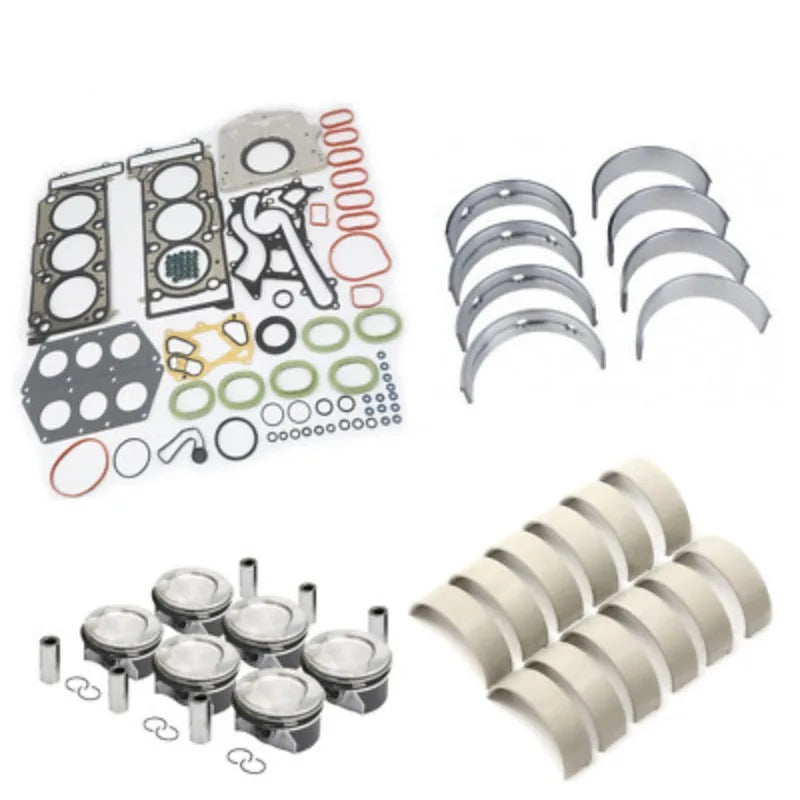

Package includes
Piston & Ring x1set (KS)
Gasket seals kit x1 set (ELRING)
Head Bolt x16pcs (ELRING)
Fit Car Model
Brand & Model Year Note
Volkswage
Cylinder bore Φ84.51mm / Piston Pin bolt Φ22mm
Touareg 2011-2016 3.0 TSI Hybrid CJTA 213kw (290ps)
Touareg 2011-2016 3.0 TSI Hybrid CGEA CGFA 245kw (333ps)
Audi
Cylinder bore Φ84.51mm / Piston Pin bolt Φ22mm
A4 Quattro 2012-2015 3.0 TFSI CMUA 200kw (272ps)
S4 Quattro (B8) 2010-2015 3.0 TFSI CAKA CCBA CGWC CGXC CTUB 245kw (333ps)
A5 Quattro 2012-2016 3.0 TFSI CMUA 200kw (272ps)
S5 Quattro 2010-2017 3.0 TFSI CAKA CCBA CGWC CGXC CTUB 245kw (333ps)
A6 Quattro (C6) 2009-2011 3.0 TFSI CAJA 213kw (290ps) / CCAA 220kw (300ps)
A6 Quattro (C7) 2012-2014 3.0 TFSI CGWB 220kw (300ps) / CGWD CGXB CTUA 228kw (310ps)
A6 Allroad (C6) 2008-2011 3.0 TFSI CAJA 213kw (290ps)
A6 Allroad (C7) 2013-2017 3.0 TFSI CGWD 228kw (310ps)
A7 2011-2014 3.0 TFSI 220kw (300ps) / 228kw (310ps)
A8 2011-2014 3.0 TFSI 213kw (290ps) / 228kw (310ps) / 245kw (333ps)
Q5 2012-2017 3.0 TFSI CTVA CTUC 200kw (272ps)
SQ5 2013-2017 3.0 TFSI CTXA CTUD 260kw (354ps)
Q7 2010-2015 3.0 TFSI 200kw (272ps) / 206kw (280ps) / 245kw (333ps)
BeeSpareParts
Overhaul Rebuild Pistons Gaskets Kit for VW Touareg Audi A5A6 A7 3.0T
- Regular price
- $ 779
For Audi A5 A6 A7 A8 S4 S5 Q5 Q7 VW Touareg 3.0 TSI TFSI
Compatible VW Audi 3.0 TFSI V6 2995cc 183Cu Supercharged
Confirmed your Original Piston pin bolt is Φ22mm
Pistons & Rings OE# Pistons & Rings Replacement OE# Pistons & Rings Spec
06E 107 065 DM (4-6 Cyl.) 06E 107 065 CJ / CN - Cylinder bore Φ84.51mm ( STD spec )
06E 107 066 DM (1-3 Cyl.) 06E 107 066 CJ / CN - Piston diameter Φ84.475mm
06E 198 151 L 06E 198 151 J / K / Q - Piston pin wrist Φ22mm / Length 59mm
N 012 278 1 ( Φ22mm) MAHLE - 028 PI 00124 000 / 028 PI 00125 000 - Ring thickness 1st 1.2mm / 2nd 1.5mm / 3rd / 2.0mm
Seals & Gasket Kit OE#
06E 103 148 AG
06E 103 149 AG
06E 253 039 C
06E 103 483 P
06E 103 484 N
06C 115 189 B
06E 103 153 E
Package includes
Piston & Ring x1set (KS)
Gasket seals kit x1 set (ELRING)
Head Bolt x16pcs (ELRING)
Fit Car Model
Brand & Model Year Note
Volkswage
Cylinder bore Φ84.51mm / Piston Pin bolt Φ22mm
Touareg 2011-2016 3.0 TSI Hybrid CJTA 213kw (290ps)
Touareg 2011-2016 3.0 TSI Hybrid CGEA CGFA 245kw (333ps)
Audi
Cylinder bore Φ84.51mm / Piston Pin bolt Φ22mm
A4 Quattro 2012-2015 3.0 TFSI CMUA 200kw (272ps)
S4 Quattro (B8) 2010-2015 3.0 TFSI CAKA CCBA CGWC CGXC CTUB 245kw (333ps)
A5 Quattro 2012-2016 3.0 TFSI CMUA 200kw (272ps)
S5 Quattro 2010-2017 3.0 TFSI CAKA CCBA CGWC CGXC CTUB 245kw (333ps)
A6 Quattro (C6) 2009-2011 3.0 TFSI CAJA 213kw (290ps) / CCAA 220kw (300ps)
A6 Quattro (C7) 2012-2014 3.0 TFSI CGWB 220kw (300ps) / CGWD CGXB CTUA 228kw (310ps)
A6 Allroad (C6) 2008-2011 3.0 TFSI CAJA 213kw (290ps)
A6 Allroad (C7) 2013-2017 3.0 TFSI CGWD 228kw (310ps)
A7 2011-2014 3.0 TFSI 220kw (300ps) / 228kw (310ps)
A8 2011-2014 3.0 TFSI 213kw (290ps) / 228kw (310ps) / 245kw (333ps)
Q5 2012-2017 3.0 TFSI CTVA CTUC 200kw (272ps)
SQ5 2013-2017 3.0 TFSI CTXA CTUD 260kw (354ps)
Q7 2010-2015 3.0 TFSI 200kw (272ps) / 206kw (280ps) / 245kw (333ps)
- Regular price
- $ 779
