Engine Pistons Gaskets Overhaul Rebuild Kit
For Audi A5 A6 A7 A8 S4 S5 Q5 Q7 VW Touareg 3.0 TSI TFSI EA837
Compatible VW Audi 3.0 TFSI V6 2995cc 183Cu Supercharged
Confirmed your Original Piston pin bolt is Φ22mm
Pistons & Rings OE# Pistons & Rings Replacement OE# Pistons & Rings Spec
06E 107 065 DM (4-6 Cyl.) 06E 107 065 CJ / CN - Cylinder bore Φ84.51mm ( STD spec )
06E 107 066 DM (1-3 Cyl.) 06E 107 066 CJ / CN - Piston diameter Φ84.475mm
06E 198 151 L 06E 198 151 J / K / Q - Piston pin wrist Φ22mm / Length 59mm
N 012 278 1 ( Φ22mm) MAHLE - 028 PI 00124 000 / 028 PI 00125 000 - Ring thickness 1st 1.2mm / 2nd 1.5mm / 3rd / 2.0mm
MAHLE - 033 PI 91207 000 / 033 PI 91208 000
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Bearing Shell OE# Bearing Shell Replacement OE# Bearing Shell Spec
06E 105 561 AB 06E 105 561 AC STD spec
06E 105 591 AB 06E 105 591 AC
07L 105 701 D
07L 105 701 E
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Seals & Gasket Kit OE#
06E 103 148 AG
06E 103 149 AG
06E 253 039 C
06E 103 483 P
06E 103 484 N
06C 115 189 B
06E 103 153 E
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

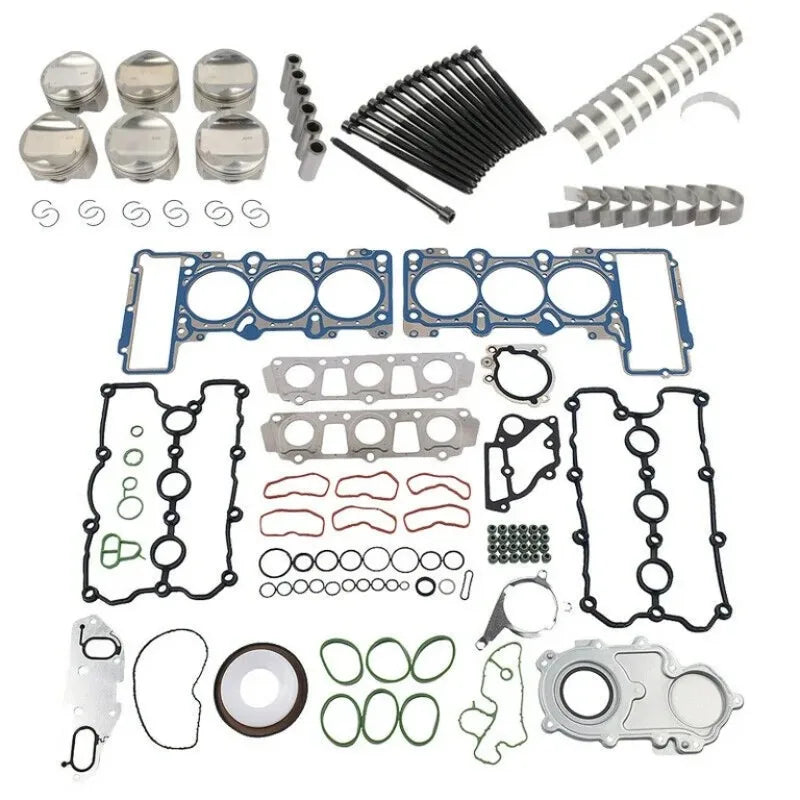

Package includes
Piston & Ring x1set
Gasket seals kit x1 set
Bearings x1 set
Head Bolt x16pcs
Fit Car Model
Brand & Model Year Note
Volkswage Cylinder bore Φ84.51mm / Piston Pin bolt Φ22mm
Touareg 2011-2016 3.0 TSI Hybrid CGEA CGFA CJTA CYJA
Audi
Cylinder bore Φ84.51mm / Piston Pin bolt Φ22mm
A4 Quattro 2012-2015 3.0 TFSI CMUA
S4 Quattro (B8) 2010-2015 3.0 TFSI CAKA CCBA CGWC CGXC CTUB
A5 Quattro 2012-2016 3.0 TFSI CMUA
S5 Quattro 2010-2014 3.0 TFSI CAKA CCBA CGWC CGXC CTUB
A6 Quattro (C6) 2009-2011 3.0 TFSI CAJA CCAA
A6 Quattro (C7) 2012-2014 3.0 TFSI CGWB CGWD CGXB CTUA
A6 Allroad (C6) 2008-2011 3.0 TFSI CAJA
A6 Allroad (C7) 2012-2014 3.0 TFSI CGWD
A7 2011-2014 3.0 TFSI CGWB CTTA
A8 2010-2013 3.0 TFSI CGWA CMDA
Q5 2012-2017 3.0 TFSI CTVA CTUC
SQ5 2013-2017 3.0 TFSI CTXA CTUD
Q7 2010-2015 3.0 TFSI CJT CJW CNA
