Type:Seal installation tools
Physical dimension:220X120（mm）
Seal inner diameter:22-160(mm)
Application:U-shaped ring seal

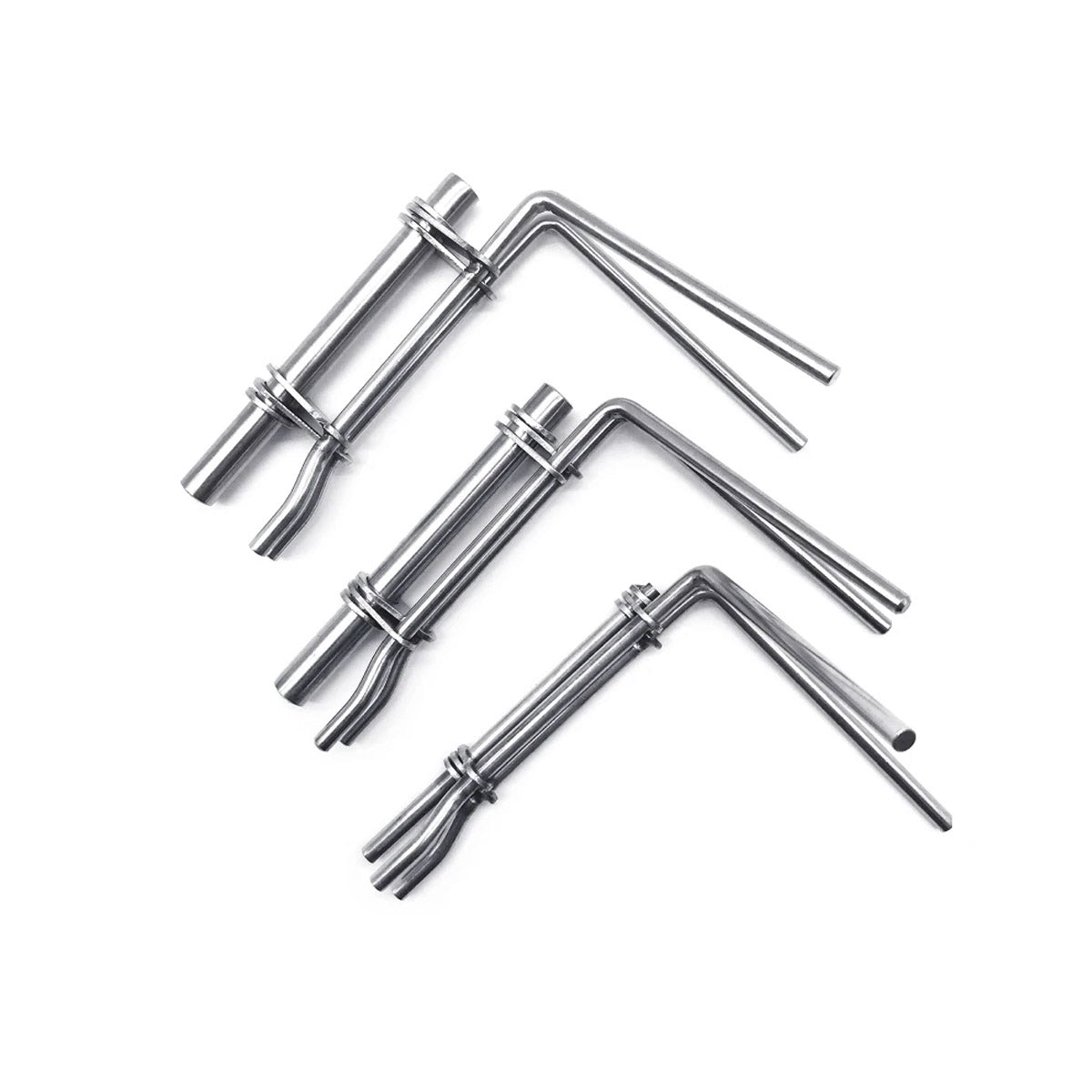

Specification: 3 Pcs（S,M,L）for 1  Set
S：Auxiliary tool suitable for oil seal inner diameter 22mm-40mm, oil seal lip width below 8mm
M:Auxiliary tool suitable for oil seal inner diameter 40mm-70mm, oil seal lip width below 12mm
L:Auxiliary tool suitable for oil seal inner diameter 70mm-165mm, oil seal lip width below 14mm

Installation Steps:
1. Put a handle into the socket and hang the seal on the arm
2. The right hand pulls the other handle and the left hand turns the seal while twisting
3. Grip the handle, place the seal into the end, and carefully fill the seal into the groove
4. Release the handle and pull the twister out after the rotary seal springs back

Note:
The tool flexes the seal into an Ω shape without any sharp corners and can be installed in a 10 cm deep hole.Make the outer dimensions of the seal smaller than the inner hole of the end cap and install the auxiliary oil seal.Seal U-ring seal rod seal installation tool is a good assistant to install oil seal, static seal seal, rotary seal.He can make it easier for you to better protect the seal from damage to the machine,Make your sealing more intimate and durable.During the installation of the seal, damage is caused by touching the metal chamfer, and this damage to the installation cannot be checked after installation.The rod sealing and twisting device can bend the seal rod seal into an Ω shape without any acute angle,Make the outer dimensions of the seal smaller than the inner hole of the end cap,The rod seal can safely pass over the sharp corners of all metal slots,Complete the installation after reset.
